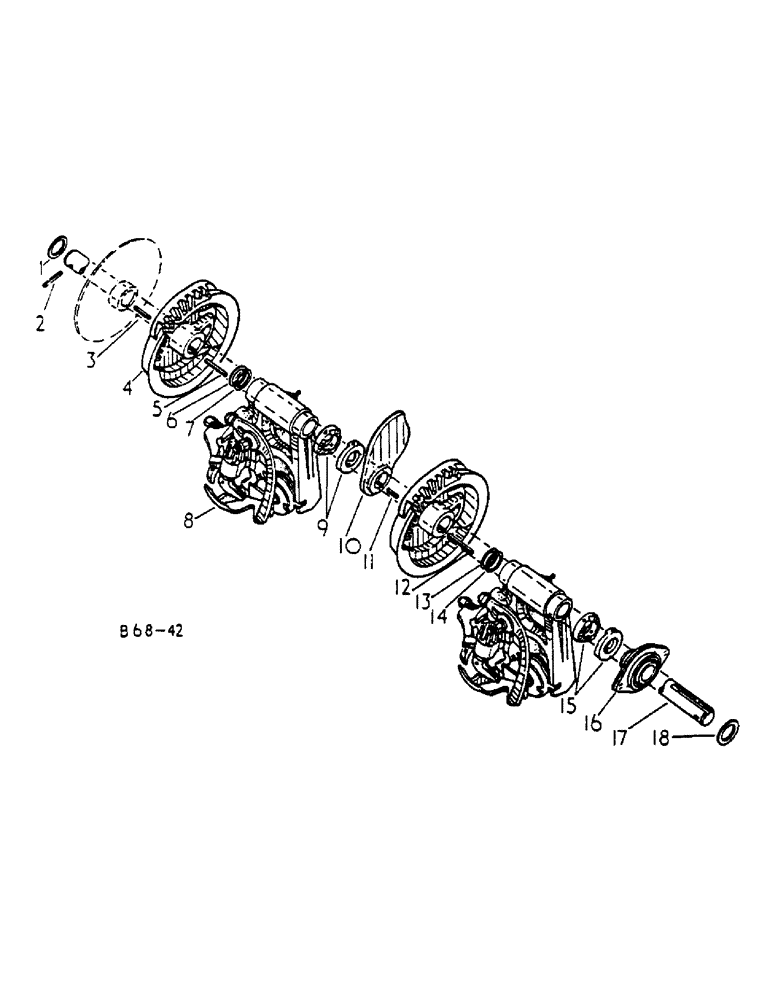

Запчасти Case IH 425 (A-29) - KNOTTER AND RELATED PARTS

1

607890R1

WASHER

1-7/32 x 1-3/4 x 16 ga C-Z, (or as required)

3шт.

2

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

3

30490R1

KEY,M 8 x 7 x 32

8 x 7 x 32 parallel

1шт.

4

3102818R1

GEAR

CAM, gear

2шт.

5

30469R1

KEY,M 8 x 7 x 50

8 x 7 x 50 parallel

1шт.

6

607894R1

WASHER

1-7/32 x 1-3/4 x 22 ga C-Z

1шт.

6

607890R1

WASHER

1-7/32 x 1-3/4 x 16 ga C-Z

1шт.

7

667588R1

DISC

SHIM, knotter to cam .007

1шт.

7

316171C1

SHIM

knotter to cam .005

1шт.

8

3102817R91

KNOTTER

ASSY, see detail list for service

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

3063560R1

LOCK NUT

3/8 lock

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051, (or as required)

3шт.

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

5шт.

905251R1

LUBE NIPPLE,90 Degree, M6 x 1

FITTING, 90 deg lub, M6

2шт.

9

3102926R1

COLLAR

knotter shaft adjusting

2шт.

3102927R1

CLEVIS PIN

STUD, 1/8 x 1/2 grooved

4шт.

3100005R1

ELECTRICAL WIRE

WIRE, 16 ga x 28 inch

1шт.

10

3102917R1

CAM

tucker finger

1шт.

11

30489R1

KEY,M 8 x 7 x 20

5 x 7 x 20 parallel

1шт.

12

30469R1

KEY,M 8 x 7 x 50

8 x 7 x 50 parallel

1шт.

13

667588R1

DISC

SHIM, knotter to cam .007

1шт.

13

316171C1

SHIM

knotter to cam .005

1шт.

14

607894R1

WASHER

1-7/32 x 1-3/4 x 22 ga C-Z

1шт.

14

607890R1

WASHER

1-7/32 x 1-3/4 x 16 ga C-Z

1шт.

15

3102926R1

COLLAR

knotter shaft adjusting

2шт.

3102927R1

CLEVIS PIN

STUD, 1/8 x 1/2 grooved

4шт.

3100005R1

ELECTRICAL WIRE

WIRE, 16 ga x 28 inch

1шт.

16

3103087R91

BEARING ASSY

ASSY LH KNOTTER SHAFT, consists of

1шт.

3102908R1

BALL BEARING

1шт.

3102891R1

FLANGE

or

2шт.

16

3103649R91

NO LONGER SERVICED

BEARING ASSY, LH knotter shaft

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

3102913R1

SHAFT

knotter

1шт.

18

3102900R1

THRUST WASHER

thrust

1шт.
