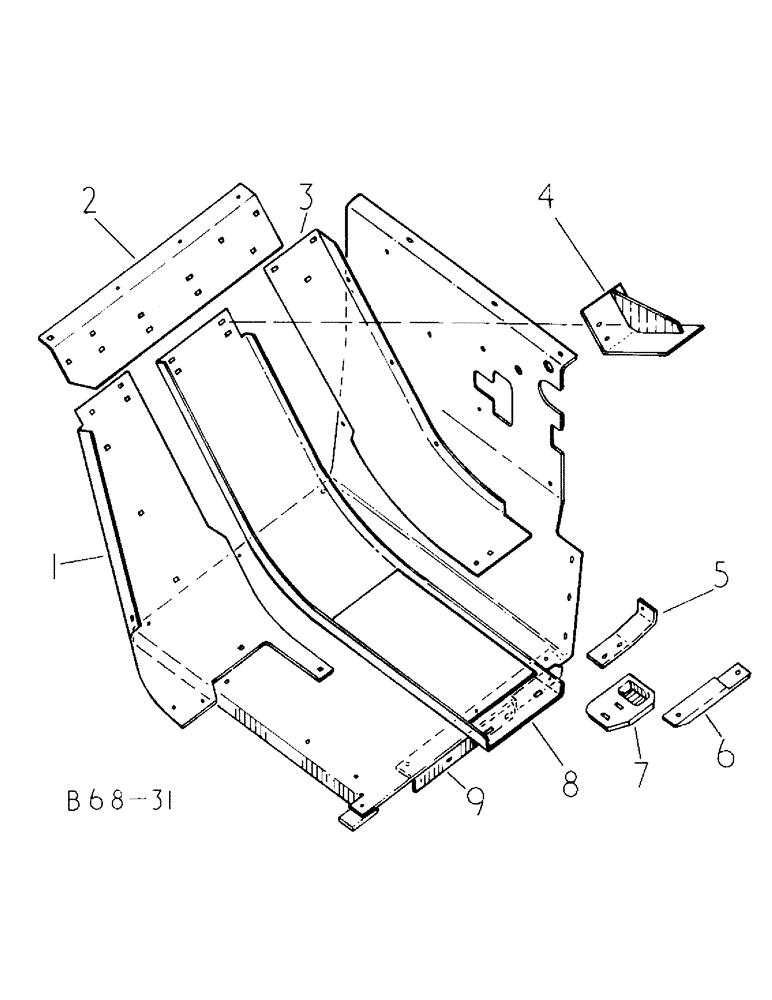

Запчасти Case IH 425 (A-25) - FEED OPENING

1

667743R1

SHEET

right front top

1шт.

670454R1

NUT

5/16-18 speed grip

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

2

667745R1

SHEET

right center top

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

3шт.

109084

NUT,1/4"-20, G5

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

3

3102952R1

SHEET

right rear top

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

3шт.

109084

NUT,1/4"-20, G5

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

4

3102974R1

DEFLECTOR

ASSY, packer

1шт.

5

3101826R1

STRAP

feed opening support

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

203185C1

ANGLE

GUIDE, feed opening knife

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

7

672150R1

DEFLECTOR

feed opening

1шт.

18635R1

BOLT,Short NK, 1/4"-20 x 3", G2

1/4 x 3 crg type 1

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21872R1

WASHER

.406 x .625 x .054

2шт.

8

3102953R2

CHANNEL

ASSY, packer

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

4шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

9

3101821R2

SHEET

ASSY, feed opening

1шт.

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW, 5/16 x 3/4 znd slt truss hd

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 pln hex

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120697

SCREW, 1/4 x 3/4 znp f/hds mach

3шт.

109084

NUT,1/4"-20, G5

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

3шт.
