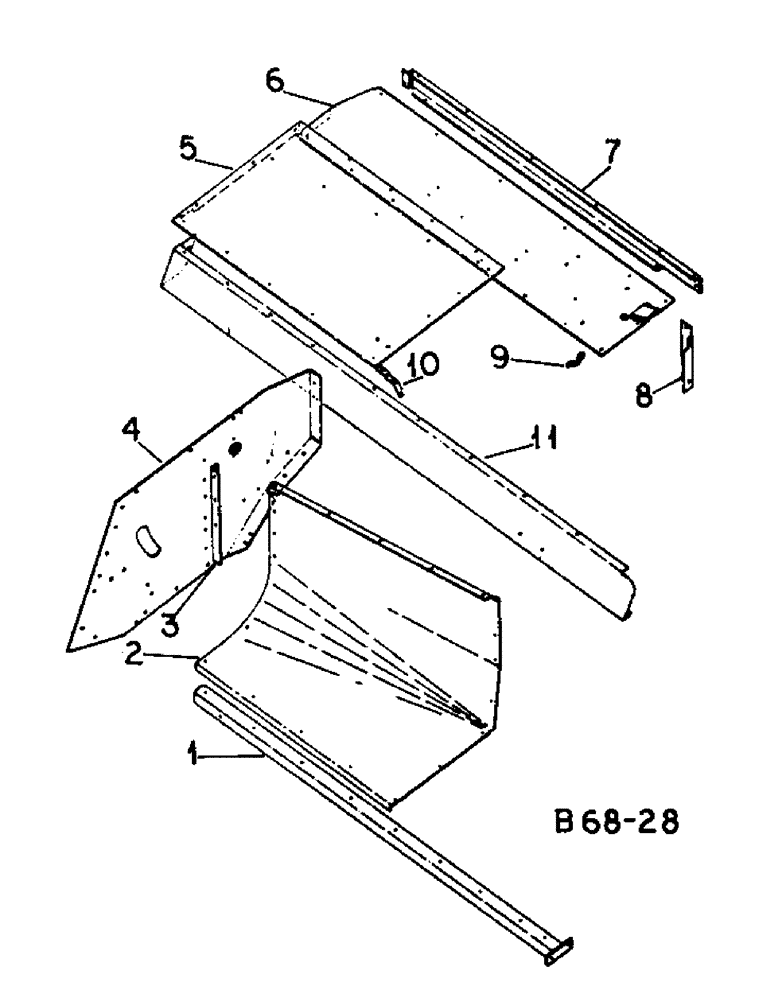

Запчасти Case IH 425 (A-24) - CROSS CONVEYOR

1

3101810R1

CHANNEL

ASSY, cross conveyor support

1шт.

NLS

NO LONGER SERVICED

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

662357R1

PLATFORM

cross conveyor

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

5шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 pln hex

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

5шт.

109084

NUT,1/4"-20, G5

10шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

10шт.

120697

SCREW, 1/4 x 3/4 znp f/hds mach

5шт.

3

3101817R1

BRACE

cross conveyor platform

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

3102940R1

SHEET

ASSY, cross conveyor side

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

3101818R1

COVER

cross conveyor

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

8шт.

109084

NUT,1/4"-20, G5

8шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

8шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 pln hex

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

6

3102943R91

COVER

TOP W/GUIDES, twine can

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

9шт.

672803R1

NUT

1/4-20 speed grip

7шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

21549R1

WASHER

.281 x .750 x .042

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 pln hex

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

3102950R1

PANEL

rear cross sheet

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

9шт.

109084

NUT,1/4"-20, G5

9шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

9шт.

8

3102948R1

SHEET

rear filler

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

1шт.

704445R1

NUT

1/4-20 spire speed

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21784R1

WASHER

.266 x .500 x .054

1шт.

9

655108R2

GUIDE

twine

3шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

10

667742R1

STRAP

feed opening tie

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

7шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

3103030R1

SHEET

ASSY, cross conveyor front

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

9шт.

19570R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 2

1/4 x 5/8 type 1

6шт.

109084

NUT,1/4"-20, G5

8шт.

672803R1

NUT

1/4-20 speed grip

8шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

15шт.

102392

WASHER

SCREW, 5/16 x 1 O/PT pln hdl/s set

7шт.
