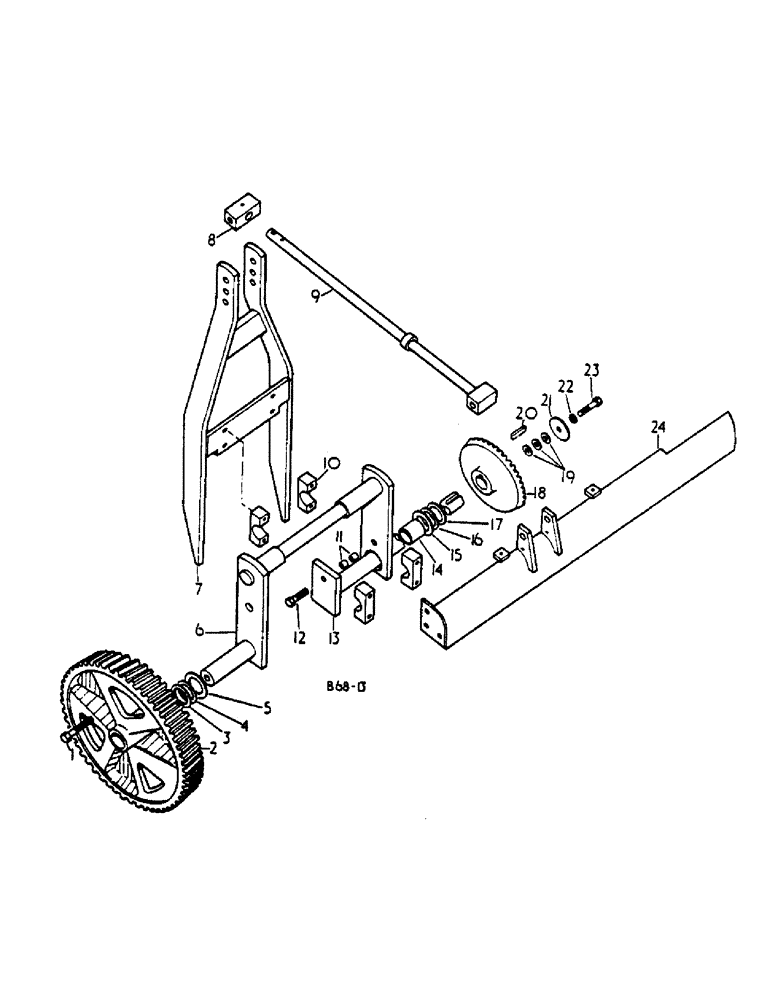

Запчасти Case IH 425 (A-23) - PACKER FINGER

1

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2 hex hd

1шт.

102637

NUT,1/2"-13, G5

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

2

667768R1

GEAR

packer drive upper

1шт.

3

21794R1

WASHER

1-13/32 x 2 x 20 ga

1шт.

4

608085R1

WASHER

1-13/32 x 2 x 20 ga, (or as required)

4шт.

5

667698R1

WASHER

packer crank brg front

1шт.

6

3103026R91

CRANKSHAFT

ASSY, packer

1шт.

7

3103126R2

FINGER

ASSY, packer

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1/2 x 3-1/2 pln type 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

3103136R1

PIVOT

packer relief rod

1шт.

159716C1

SPACER,3/4" Tube x 5/8"

.532 x .750 x .562

2шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

2шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

2шт.

9

3103132R1

ROD

packer relief

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

23885K

SPACER,3/4" Tube x 2 1/16"

.532 x .750 x 2.062

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

3119440R1

LOCK NUT

1/4 UNC lock

1шт.

10

3103125R1

BEARING HALF

BEARING, packer finger

4шт.

180113

SPRING

5/16 x 3 type 5

4шт.

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

4шт.

619855R1

WASHER

.344 x .750 x .054

8шт.

11

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

shear bolt

2шт.

12

181620

SCREW,Hex, 5/16" - 24 x 2", Gr 5

BOLT, 5/16-24 x 2 hex hd

1шт.

120368

NUT,5/16"-24, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

3103033R91

CRANKSHAFT

ASSY, packer rear

1шт.

14

3103036R1

SPACER

packer crank

1шт.

15

3100389R1

THRUST WASHER

thrust

1шт.

16

608085R1

WASHER

1-13/32 x 2 x 20 ga

1шт.

17

21794R1

WASHER

1-13/32 x 2 x 20 ga

1шт.

18

3102892R1

GEAR

knotter drive shaft

1шт.

19

477242R1

WASHER

13/32 x 1 x 22 ga, (or as required)

3шт.

20

Q1482

KEY,5/16" Sq x 1", Par

5/16 x 1 parallel

1шт.

21

3012893R1

WASHER, gear knotted drive

1шт.

22

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

23

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 hex hd

1шт.

24

3103122R1

SUPPORT

ASSY, packer relief

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

3шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.
