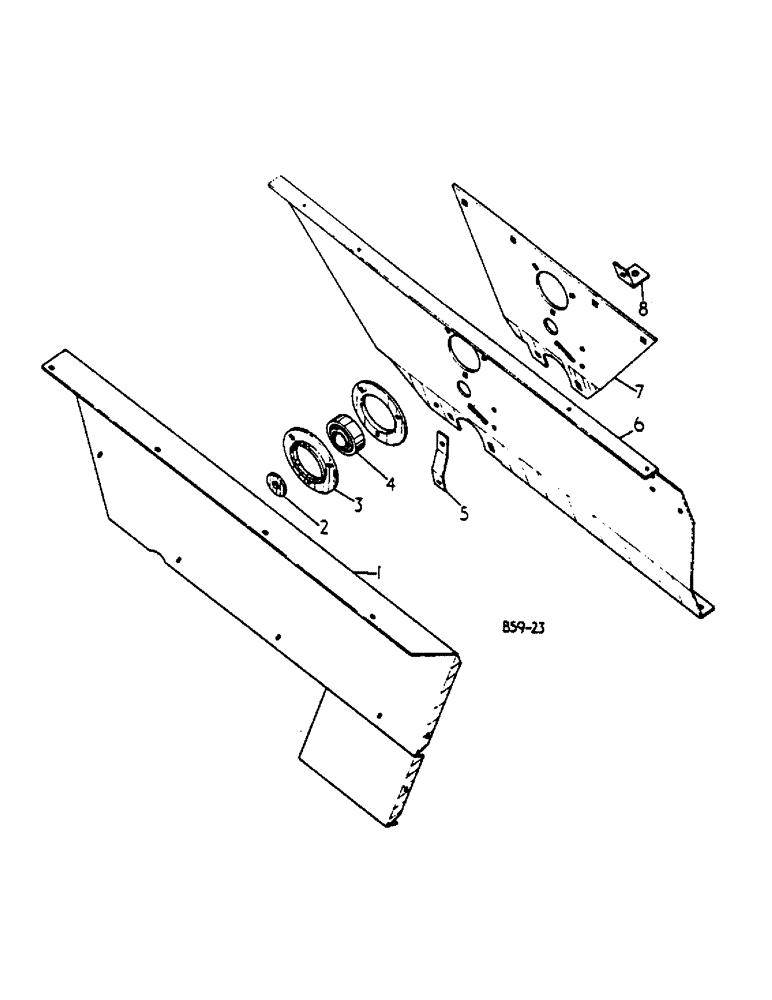

Запчасти Case IH 425 (A-22) - PACKER BEARINGS AND SUPPORT

1

3101596R1

SHIELD

ASSY, packer

1шт.

670454R1

NUT

5/16-18 speed grip

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

667698R1

WASHER

packer crank brg front

1шт.

220724

BOLT,Hex Hd, Lock, 7/16"-14 x 1 1/4", G5

BOLT, 7/16 x 1-1/4 lock type 5

1шт.

3

667861R1

BEARING CAP,2.8346" ID x 4.8125" OD x 0.375"

bearing retainer

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

ASSY, packer crank front

1шт.

5

667763R1

STRAP

packer bearing adjusting

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

102635

NUT,3/8"-16, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

674115R1

SUPPORT

packer brg front

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

5шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

7

667725R1

PLATE

packer bearing front support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

667724R1

ANCHOR

packer bearing support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

NLS

NO LONGER SERVICED

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
