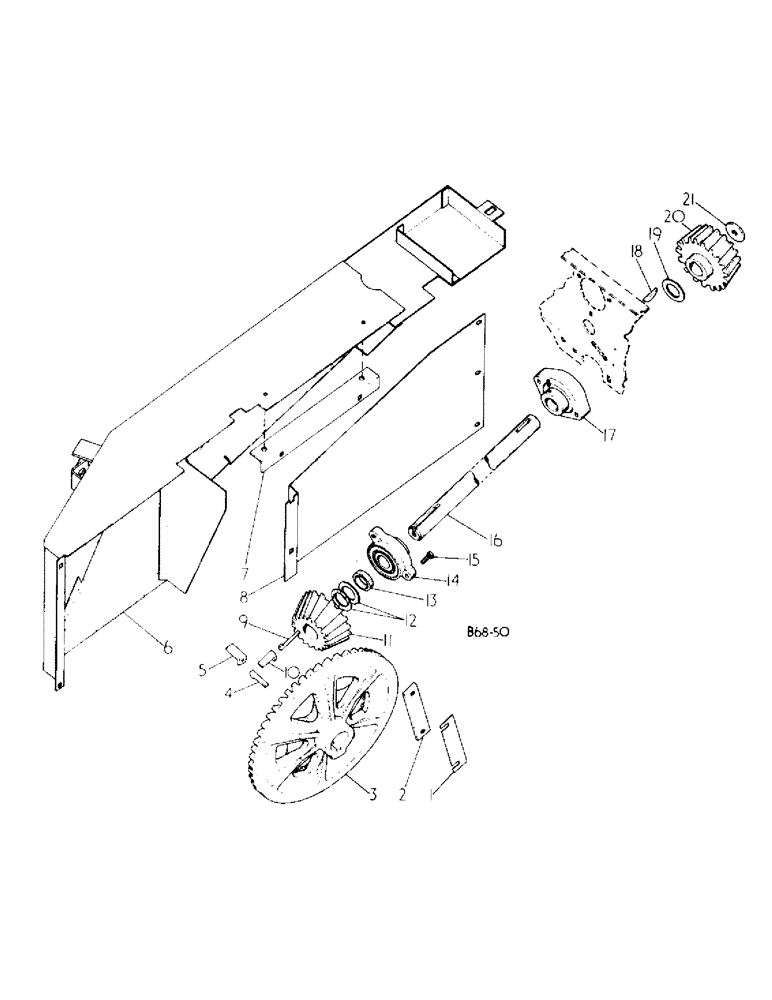

Запчасти Case IH 425 (A-20) - PACKER DRIVE

1

667761R1

SHIM

packer gear wear, (or as required)

3шт.

2

667760R1

STRIP

packer gear wear

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

667759R4

GEAR

packer drive lower

1шт.

4

669016R1

KEY

3/8 x 2-3/4 taper gib

1шт.

5

671631R1

RETAINER

packer gear key

1шт.

426816

SCREW,Hex Soc Hd, 1/4"-20 x 3/4"

1/4 x 3/4 h/shd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21795R1

WASHER,1.78" ID x 2.5" OD x 0.03" Thk

1.781 x 2.250 x .027, (or as required)

2шт.

20705R1

WASHER

1.781 x 2.500 x .054, (or as required)

1шт.

6

3102815R2

SHIELD

COVER ASSY, packer drive

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

4шт.

120376

NUT,5/16"-18, G5

4шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 spring

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

138538

LOCK WASHER

WASHER, 5/16 int-tooth lock

2шт.

7

3101680R1

SUPPORT

packer drive cover

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 pln hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

3101679R1

SHEET

feed opening front

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24407R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, 1/4" x 1/2"

3шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

9

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 taper gib hd tappered

1шт.

10

668766R1

RETAINER

packer drive shaft lower key

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

667769R1

GEAR

drive lower pinion

1шт.

21794R1

WASHER

1.406 x 2.000 x .033

1шт.

12

608085R1

WASHER

1-13/32 x 2 x 16 ga znd, (or as required)

4шт.

13

668325R1

SPACER

lower packer pinion

1шт.

14

668369R91

FLANGED BEARING

ASSY, packer drive lower

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

656955R1

STUD

lower packer bearing dowel

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

16

667762R1

SHAFT

packer drive

1шт.

17

667863R91

BEARING ASSY,4.9375" OD x 0.875"

ASSY, packer drive upper

1шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8 x 1-3/4 crg type 5

1шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, 3/8 x 2 crg type 5

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

452563

KEY

5/16 x 2-1/8 Woodruff

1шт.

19

608085R1

WASHER

1-13/32 x 2 x 16 ga znd, (or as required)

2шт.

20

667766R1

GEAR

packer drive upper pinion

1шт.

220724

BOLT,Hex Hd, Lock, 7/16"-14 x 1 1/4", G5

BOLT, 7/16 x 1-1/4 lock type 5

1шт.

21

667698R1

WASHER

packer drive shaft upper

1шт.
