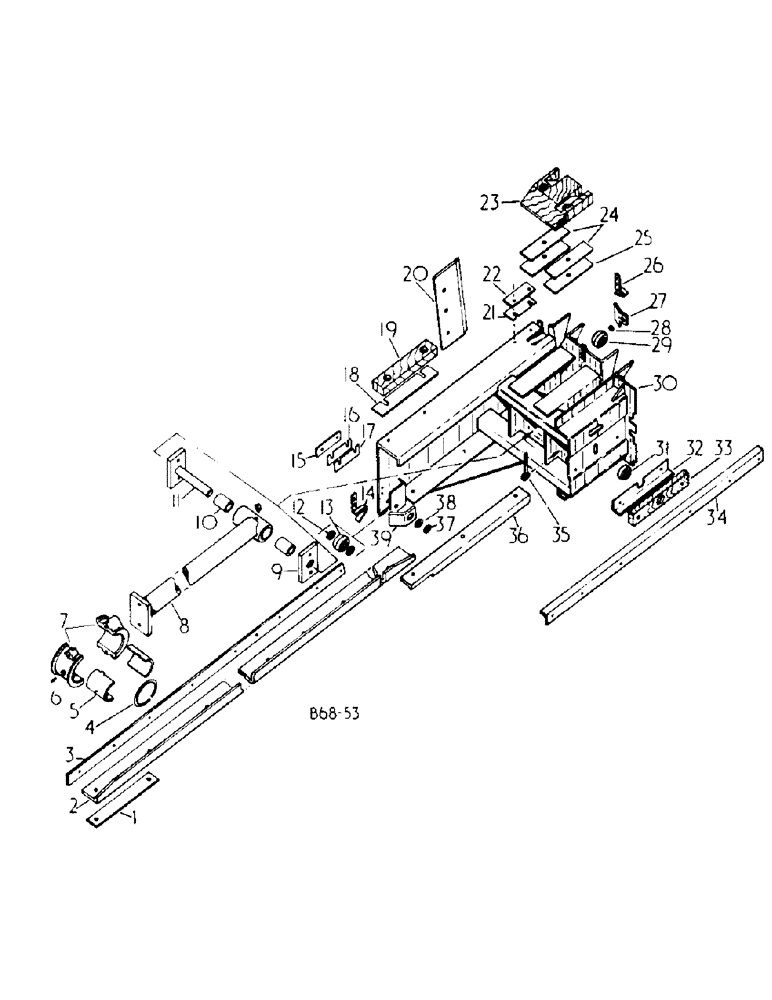

Запчасти Case IH 425 (A-18) - PLUNGER

1

674059R2

LARGE PLATE

PLATE, bottom extension

1шт.

2

3101518R2

ANGLE

plunger guide thrust

1шт.

754828R1

BOLT,#3, 3/8" - 24 x 1 3/8"

3/8-24 x 1-3/8 znd no. 3 plow

8шт.

21741R1

WASHER

.406 x .875 x .105

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

103026

NUT,3/8"-24, G5

8шт.

3

203015C1

PLATE

STRIP, plunger thrust

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

22859R1

WASHER

.344 x .750 x .164

9шт.

4

665450R1

SEAL

SEAL, pitman brg front oil

4шт.

5

664975R1

BEARING LINER

INSERT, pitman bearing front

2шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

7

665716R1

BEARING ASSY, pitman front

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

2шт.

3063614R1

NUT

7/16-14 hex. lock

2шт.

8

3102233R91

PITMAN

W/BUSHING

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 45 deg angle lub

1шт.

9

668359R1

BLOCK

pitman

1шт.

10

664976R1

BUSHING,31.8mm ID x 34.95mm OD x 44.7mm L

pitman rear

2шт.

11

668358R91

SUPPORT

BLOCK ASSY, plunger pitman

1шт.

673707R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 pln crg type 5

4шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

12

12258R1

WASHER

21/32 x 1-1/4 x 0.090

2шт.

13

672925R91

ROLLER, plunger, or

1шт.

13

202164C92

BEARING ASSY,16.08 mm ID x 50.8 mm OD x 15 mm

roller plunger

1шт.

14

3100954R1

SPRING

plunger front scraper

1шт.

100776

no. 2 x 3/8 pln r/hds mach

2шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

2шт.

557109R1

WASHER

.266 x .500 x .054 pln

2шт.

15

668367R1

PAD

wear

1шт.

179814

SPACER

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

668981R1

SHIM

plunger lower, (or as required)

2шт.

17

868368R1

SHIM, plunger lower, (or as required)

4шт.

18

668365R1

SHIM,45.72mm OD x 0.76mm Thk

plunger upper, (or as required)

2шт.

19

668364R2

BLOCK

plunger upper right

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

453838

NUT

5/16 znp 3 long prg base tee

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

203021C1

KNIFE

hay

1шт.

15588R1

PLOW BOLT,#3, 5/8" - 11 x 1 1/2", Gr 2

BOLT, PLOW, 5/8"-11 x 1 1/2", G2, Full Thd

3шт.

102639

NUT,5/8"-11, G5

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

3103078

SHIM, knife

1шт.

21

668981R1

SHIM

plunger lower

1шт.

22

668367R1

PAD

wear

1шт.

179814

SPACER

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

3101504R1

BLOCK

plunger upper center

1шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8 x 1-3/4 crg type 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

3101375R1

SPACER

plunger center block, (or as required)

2шт.

25

204752C1

BAR

plunger center block

2шт.

26

3100953R1

SPRING

scraper rear

1шт.

100776

no. 2 x 3/8 pln r/hds mach

2шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

2шт.

557109R1

WASHER

.266 x .500 x .054 pln

2шт.

27

202241C1

BLADE

SUPPORT, plunger rear scraper

1шт.

181313

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

1/4-NF x 3/4 pln type 5

1шт.

106260

WASHER,#12

.250 x .562 x .036 pln

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21756R1

WASHER

.469 x .750 x .027

1шт.

28

3100350R1

SPACER

plunger rear

1шт.

29

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

ROLLER, plunger, or

2шт.

29

202164C92

BEARING ASSY,16.08 mm ID x 50.8 mm OD x 15 mm

plunger roller, or

2шт.

29

3103919R91

BEARING, plunger roller

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8 x 1-1/2 pln type 5

1шт.

21793R1

WASHER

.656 x 1.250 x .164

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

30

3103021R1

PLUNGER

ASSY

1шт.

31

3103279R1

PIVOT

BUSHING, plunger slide

1шт.

32

3103024R1

ANGLE

plunger slide

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

2шт.

33

3103023R1

SLIDE

plunger

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8 x 2-3/4 pln type 5

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

.656 x 1.312 x .074 pln

1шт.

3100765R1

NUT

5/8 lock

1шт.

34

674057R1

ANGLE

plunger guide

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

477242R1

WASHER

.406 x 1.000 x .027

6шт.

35

667922R1

BOLT,Eye, 5/8" - 11 x 4.69"

plunger eye

1шт.

1145085

NUT, 1/2 pln jam type 5

2шт.

36

202244C1

ANGLE

plunger runner

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/2 type 5

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

37

608701R1

WASHER

21/32 x 1-1/4 x .054 znd

1шт.

38

202247C1

WASHER

front scraper

1шт.

39

202240C1

STRIPPER

SUPPORT, plunger front scraper

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
