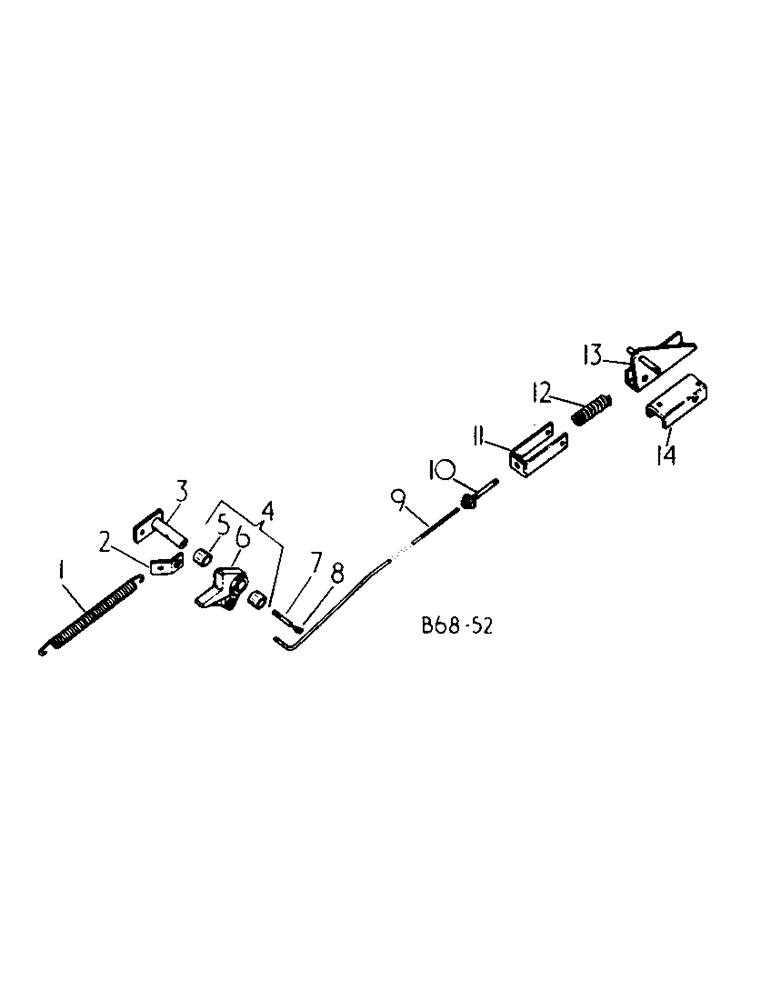

Запчасти Case IH 425 (A-16) - PLUNGER STOP, UP TO 1979

1

655919R1

SPRING

plunger stop

1шт.

2

674065R1

ANCHOR

plunger stop spring

1шт.

3

3101591R1

LARGE PIN

PIVOT ASSY, plunger stop

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

3101228R11

STOP

ASSY, plunger

1шт.

5

754429R1

BUSHING

BEARING, pivot

2шт.

6

STOP, punger, not serviced

1шт.

7

674582R1

NIPPLE, LUBE

NIPPLE, plunger stop

1шт.

8

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 PTF short 90D lub

1шт.

9

3101593R1

LINK

plunger stop

1шт.

102637

NUT,1/2"-13, G5

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

21740R1

WASHER

.531 x 1.500 x .054

2шт.

10

674073R1

SLEEVE

plunger stop spring

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

575813R1

WASHER

.781 x 1.250 x .105 pln

1шт.

11

674072R1

CLEVIS

plunger stop link

1шт.

U5356

HEADED PIN,9.53mm OD x 57.15mm L

PIN, 3/8 x 2.250 pln hd type 1

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

12

664301R1

SPRING

plunger stop relief

1шт.

13

203177C1

ARM

ASSY, plunger stop

1шт.

20869R1

WASHER

.531 x .875 x .054

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

14

674071R1

BRACKET

plunger stop mounting

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
