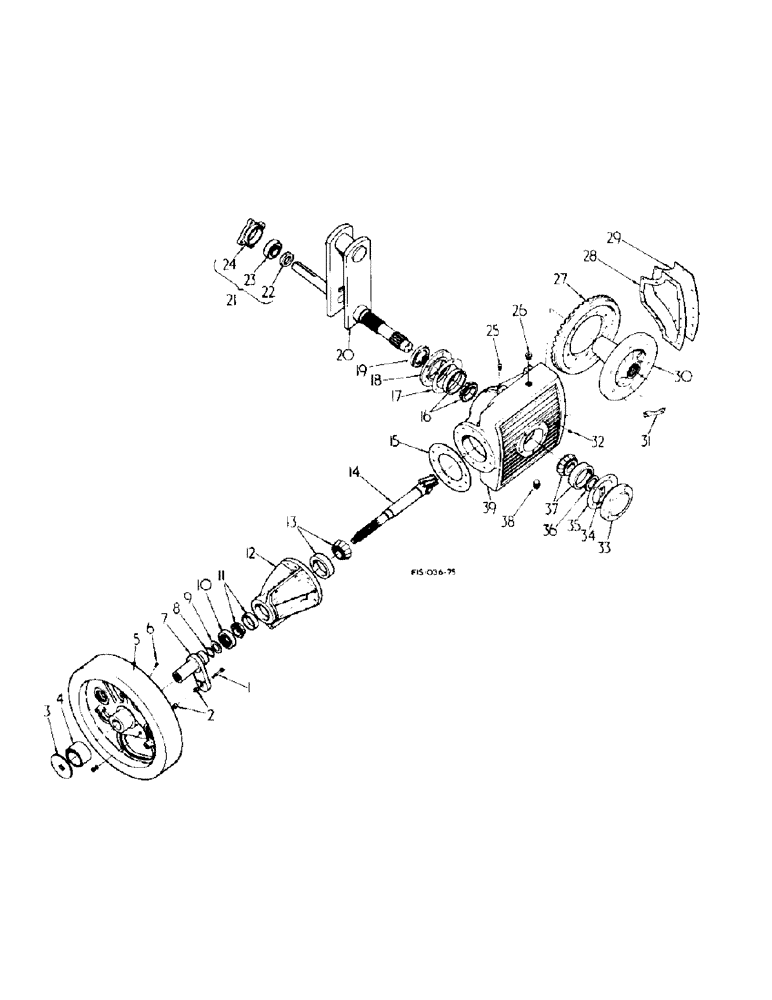

Запчасти Case IH 425 (A-15) - MAIN DRIVE

1

772336R91

BOLT

ASSY, flywheel shear

6шт.

2

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

flywheel shear bolt

2шт.

3

662103R1

THRUST WASHER

flywheel thrust

1шт.

4

662120R1

BUSHING

flywheel outer

1шт.

5

3103934R91

FLYWHEEL

W/BUSHING, main drive, replaces 200496C11

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self tap lub

1шт.

7

202483C91

HUB

PACKAGE, flywheel hub service, consists of ref. no. 2, 8 & 9

1шт.

8

257611R1

O-RING,-221, 70 Duro, 1.421" ID x .139" Thk

1-7/16 x 1-11/16 x 1/8 flywheel hub

1шт.

9

667605R1

SHIM

bearing preload .005

2шт.

9

667606R1

SHIM

bearing preload .007

2шт.

9

667607R1

SHIM

bearing preload .020

2шт.

10

3111050R91

SEAL

pinion shaft front oil or

1шт.

10

3101165R91

RETAINER

SEAL, pinion shaft front oil

1шт.

11

62923R91

ROLLER BEARING

pinion shaft front cone

1шт.

11

130503H

BEARING CUP

BEARING, pinion shaft front cup

1шт.

12

667601R1

CASE

main drive front

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

178373R1

WASHER

.531 x 1.000 x .056

4шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

7/16 x 1-1/2 pln type 5

10шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

13

107577R1

BEARING, CUP

BEARING, pinion shaft rear cup

1шт.

13

662062R91

ROLLER BEARING

pinion shaft rear cone

1шт.

14

204105C1

SET

GEAR SET, ring and pinion, replaces 662050R11

1шт.

272322

WASHER

7/8-NF pln slt-thick type 5

1шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

15

662088R1

SHIM

main drive gear .020

1шт.

15

662089R1

SHIM

main drive gear .007

1шт.

15

662090R1

SHIM

main drive gear .005, or

1шт.

15

3102256R1

SHIM

main drive gear .020

1шт.

15

3102255R1

SHIM

main drive gear .007

1шт.

15

3102254R1

SHIM

main drive gear .005

1шт.

16

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

main drive gear RH cup

1шт.

16

ST2083

BEARING ASSY

BEARING, main drive gear RH cone

1шт.

17

662091R1

SHIM

main drive bevel gear .005

1шт.

17

662093R1

SHIM

main drive bevel gear .007

1шт.

17

662092R1

SHIM

main drive bevel gear .020, or

1шт.

17

3102257R1

SHIM

main drive bevel gear .005

1шт.

17

3102258R1

SHIM

main drive bevel gear .007

1шт.

17

3102259R1

SHIM

main drive bevel gear .020

1шт.

18

662017R1

COVER

main drive bevel gear bearing

1шт.

181420R1

SCREW,Hex, 3/8" - 16 x 1", w/ Nylon Pellet

3/8-16 x 1 cap

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

19

662066R91

OIL SEAL,60.33mm ID x 92.15mm OD x 11mm Thk

plunger crank RH oil

1шт.

20

667632R92

CRANKSHAFT

ASSY, plunger

1шт.

21

668712R92

BEARING

ASSY, plunger crank RH

1шт.

22

582816R11

COLLAR

w/setscrew bearing locking

1шт.

23

668719R91

BEARING

plunger crank

1шт.

24

RETAINER BEARING, not serviced

1шт.

673707R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 pln crg type 5

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

25

152127H1

BREATHER,1/8"-27, Short

VENT ASSY, main drive gear box, or

1шт.

25

895120H1

NO LONGER SERVICED

VENT ASSY, main drive gear box

1шт.

26

444676

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG, 1-11-1/2 auto sq soc hd pipe

1шт.

27

GEAR, ring, order gear set 662050R11

1шт.

28

667603R1

GASKET

main drive gear box cover

1шт.

29

672199R1

COVER

ASSY, main drive gear case rear

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

13шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

30

670568R1

HUB

main bevel gear

1шт.

181432

BOLT,Hex, 1/2" - 20 x 1 5/8", Gr 5

1/2NF x 1-5/8 pln type 5

10шт.

31

261622R1

PLATE, LOCKING

LOCK PLATE, main drive gear hub cap screw

1шт.

32

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4-28 automotive sq hd pipe

1шт.

33

667604R1

CAP

main drive bevel gear

1шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

7/16 x 1-1/2 pln type 5

5шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

5шт.

34

201580C1

PLATE

bolt holder

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

3/8-NF x 1 pln type 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

662091R1

SHIM

main drive bevel gear .005

1шт.

35

662093R1

SHIM

main drive bevel gear .007

1шт.

35

662092R1

SHIM

main drive bevel gear .020, or

1шт.

35

3102257R1

SHIM

main drive bevel gear .005

1шт.

35

3102258R1

SHIM

main drive bevel gear .007

1шт.

35

3102259R1

SHIM

main drive bevel gear .020

1шт.

36

200525C1

WASHER

plunger crankshaft thrust

1шт.

37

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

BEARING, main drive gear cup

1шт.

37

9718528R91

BEARING, main drive gear cone

1шт.

38

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Automotive, Pipe Sq Hd, 1/2"-14 NPTF

1шт.

39

667600R2

CASE

main drive rear

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2 pln type 5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

322593R1

BOLT

w/nylon pellet, 3/4 x 2-1/4

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
