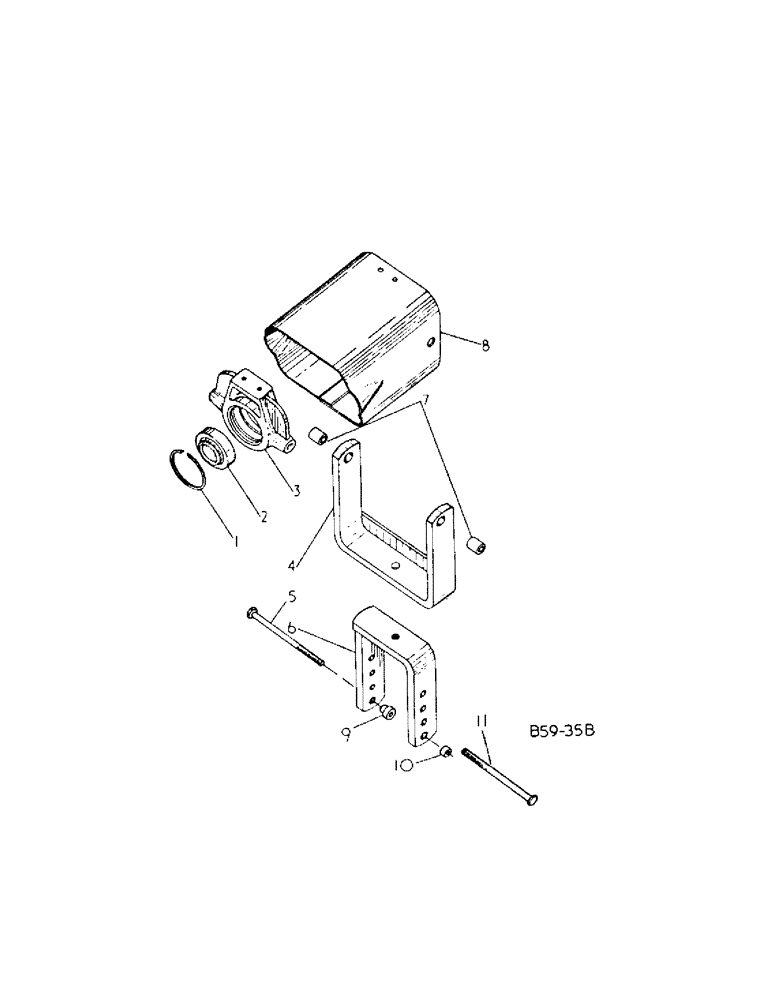

Запчасти Case IH 425 (A-14) - PTO CENTER BEARING AND BRACKET

1

UA20551

RING

snap

1шт.

2

753675R91

BALL BEARING,35 mm ID x 72 mm OD x 0.984"

propellor shaft front

1шт.

3

754791R1

BEARING HOUSING

BOX, P T O center bearing

1шт.

179887

CABLE

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Q3501

WASHER

.781 x 1.250 x .054 pln

2шт.

4

753876R3

BRACKET

pivot P T O shaft brg.

1шт.

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

5/8-NF x 2 pln type 5, Fine Thread

1шт.

754900R1

NUT

5/8-18 lock

1шт.

608081R1

WASHER

.656 x 1.750 x .090

1шт.

5

187238

BOLT,Hex, 1/2" - 13 x 6", Gr 5

SCREW, 1/2-13 x 6 hex hd cap

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

PO10535

WASHER

.531 x 1.250 x .105 pln

2шт.

6

3102237R1

PEDESTAL

SUPPORT, PTO shaft bearing pivot bracket complete

1шт.

7

753874R1

BUSHING

pivot PTO shaft brg upper

1шт.

8

753875R2

SHIELD

PTO

1шт.

179812

GEAR

5/16 x 1/2 pln type 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

3102240R1

SPACER

1шт.

10

667623R1

BUSHING

1шт.

11

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

BOLT, 1/2-13 x 6 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.
