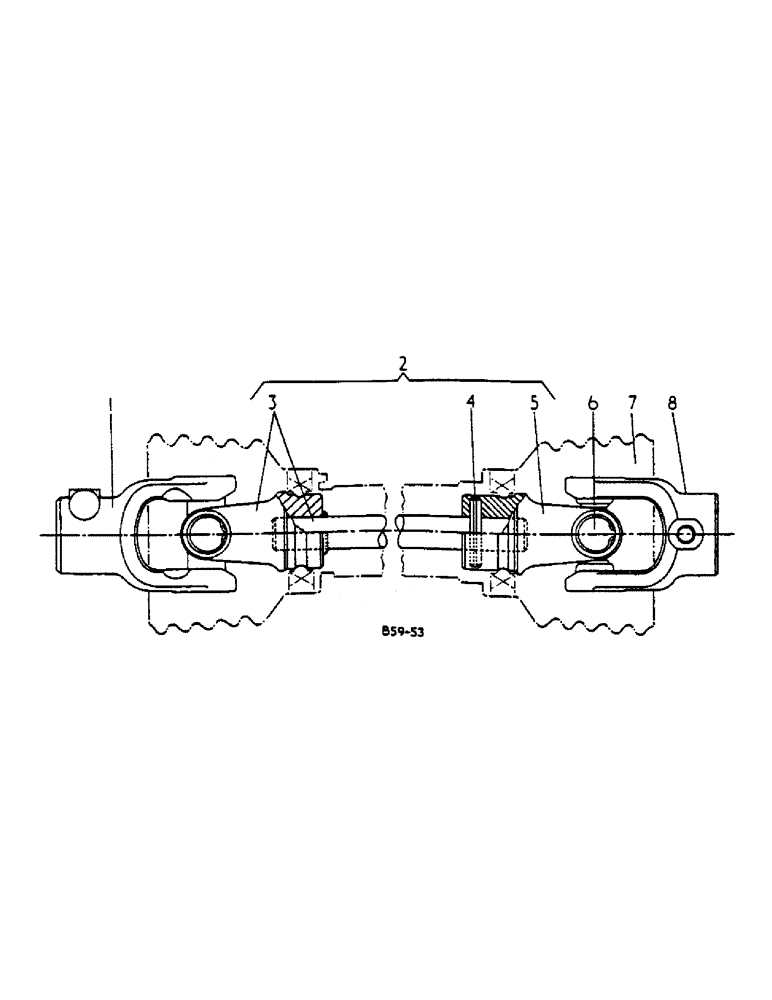

Запчасти Case IH 425 (A-13) - PTO SHAFTS WITH CHAINS, FRONT, FITTED WITH LIP SEAL JOURNAL UNITS

754793R97

SHAFT

W/CHAIN, PTO, hardy spicer short shafts

1шт.

1

3101183R91

YOKE

quick release assy

1шт.

3101184R1

PIN

1шт.

3101185R1

VALVE SPRING

SPRING

1шт.

3101186R1

PIN

tension

1шт.

2

3102316R91

COUPLING

SHAFT AND DOUBLE YOKE W/PIN ASSY, 3101189R1

1шт.

3

3102317R1

SHAFT

YOKE AND SHAFT ASSY

1шт.

4

3101189R1

PIN

tension

1шт.

5

3101012R1

YOKE

end

1шт.

6

3100758R91

PACKAGE

unit, lip seal

1шт.

740493R1

RING

retaining

1шт.

3100759R1

GASKET

lip seal journal

1шт.

3102296R91

LUBE NIPPLE

LUBRICATOR

1шт.

7

3102308R91

GUARD

ASSY, outer half w/chain, red

1шт.

3101268R91

CHAIN (AG)

CHAIN

1шт.

7

3102310R91

GUARD

ASSY, inner half w/chain, red

1шт.

3101268R91

CHAIN (AG)

CHAIN

1шт.

8

3101190R1

YOKE

end

1шт.

754875R1

NUT

end yoke

1шт.

3101187R1

SET SCREW

set

1шт.
