Запчасти Case IH 425 (A-12) - PTO DRIVE SHAFT, 26 IN. MINIMUM COMPRESSION FOR USE ON TRACTORS WITH 14 IN. STD DRAWBAR

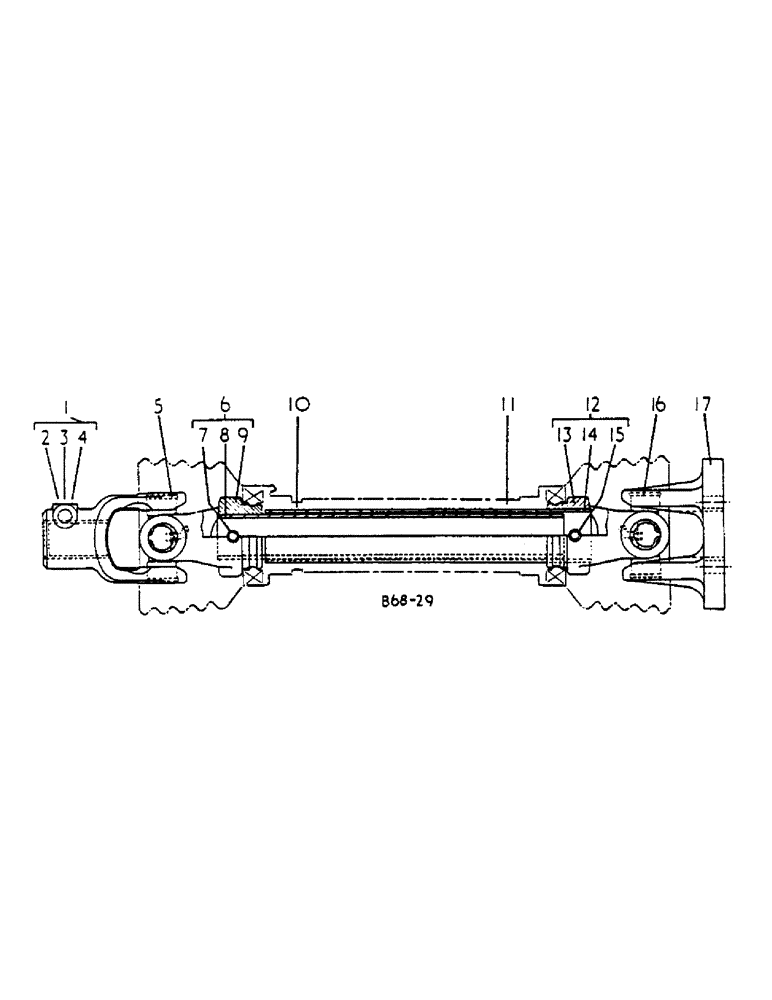

Схема запчастей Case IH 425 - (A-12) - PTO DRIVE SHAFT, 26 IN. MINIMUM COMPRESSION FOR USE ON TRACTORS WITH 14 IN. STD DRAWBAR

Артикул

Название

Примечание

Количество

3103139R91

SHAFT

W/CHAINS, PTO, hardy spicer

1шт.

3103141R91

SHAFT

PTO and guard assy w/chain, outer half, consists items marked B

1шт.

3103151R91

SHAFT

PTO and guard assy w/chain, inner half, consists items marked A

1шт.

1

3101183R91

YOKE

ASSY, quick release, (A)

1шт.

2

3101184R1

PIN

(A)

1шт.

3

3101185R1

VALVE SPRING

SPRING, (A)

1шт.

4

3101186R1

PIN

tension, (A)

1шт.

5

3100758R91

PACKAGE

(A)

1шт.

6

3103153R91

YOKE

and inner tube assy, (A)

1шт.

7

3103148R1

PIN

tension, (A)

1шт.

8

3103156R1

TUBE

inner, (A)

1шт.

9

3103155R1

YOKE

inner tube, (A)

1шт.

10

3103158R1

GUARD

ASSY, inner half, (A)

1шт.

3101268R91

CHAIN (AG)

CHAIN ASSY

1шт.

11

3103149R1

GUARD

ASSY, outer halft, (B)

1шт.

3101268R91

CHAIN (AG)

CHAIN ASSY

1шт.

12

3103143R91

YOKE

AND OUTER TUBE ASSY, (B)

1шт.

13

3103145R1

TUBE

YOKE, outer tube

1шт.

14

3103146R1

TUBE

outer, (B)

1шт.

15

3103148R1

PIN

tension, (B)

1шт.

16

3100758R91

PACKAGE

unit, (B)

1шт.

17

3103386R1

YOKE

FLANGE, yoke, (B)

1шт.

Выбрано товаров: 22
