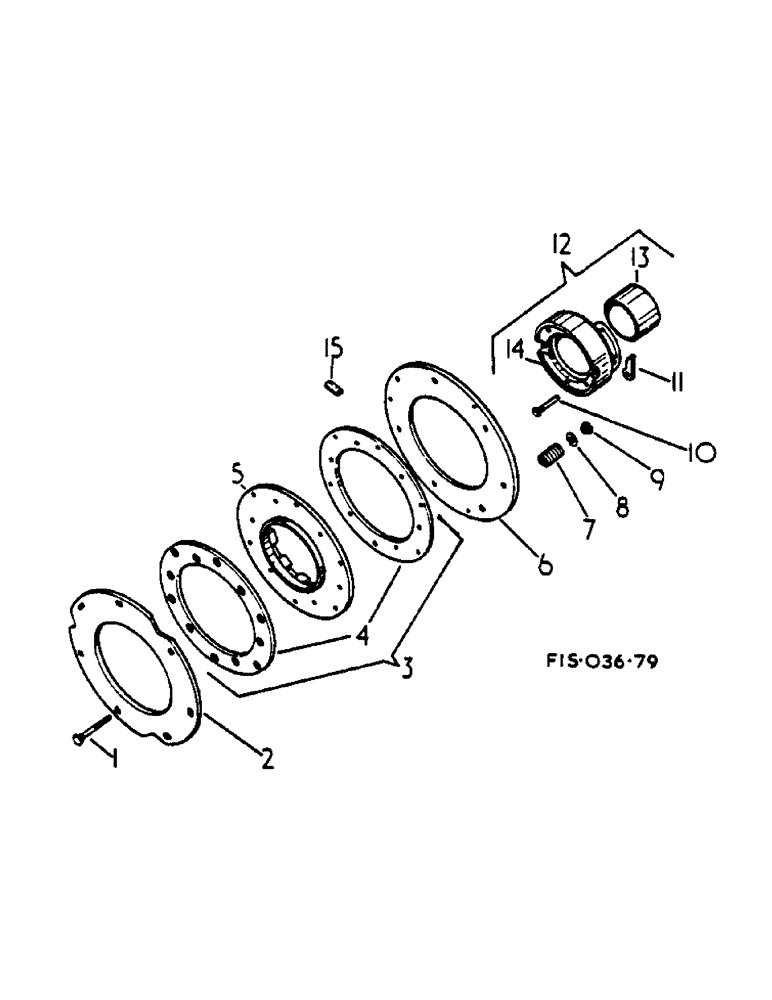

Запчасти Case IH 425 (A-10) - POWER TAKE-OFF DRIVE SHAFT CLUTCH

1

202568C1

SCREW

NUT AND BOLT ASSY

7шт.

2

3100036R1

PLATE

clutch pressure

1шт.

3

3100038R91

CLUTCH DISC

DISC ASSY, clutch

1шт.

4

3100042R11

FACING

W/RIVETS, clutch

1шт.

113342

RIVET,Tr Hd, 3/16" x 3/8", Brass

12шт.

5

HOUSING, clutch lug, not serviced

1шт.

6

3100043R1

PLATE

clutch back

1шт.

3102540R1

SCREW

clutch

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

7

M1015

SPRING

clutch

7шт.

8

Q511

WASHER

9/16 x 1-1/4 x 7 ga

7шт.

9

NUT, part of 202568C1

1шт.

10

662558R1

PIN

.406 x 1-7/8 rod end

2шт.

11

3101008R1

PAWL

over running clutch

2шт.

12

3100973R11

CARRIER

W/BUSHING, over running

1шт.

13

662078R1

BUSHING

over running clutch

1шт.

14

CARRIER, over running, not serviced

1шт.

15

202859C1

SPACER

ASSY, clutch

1шт.
