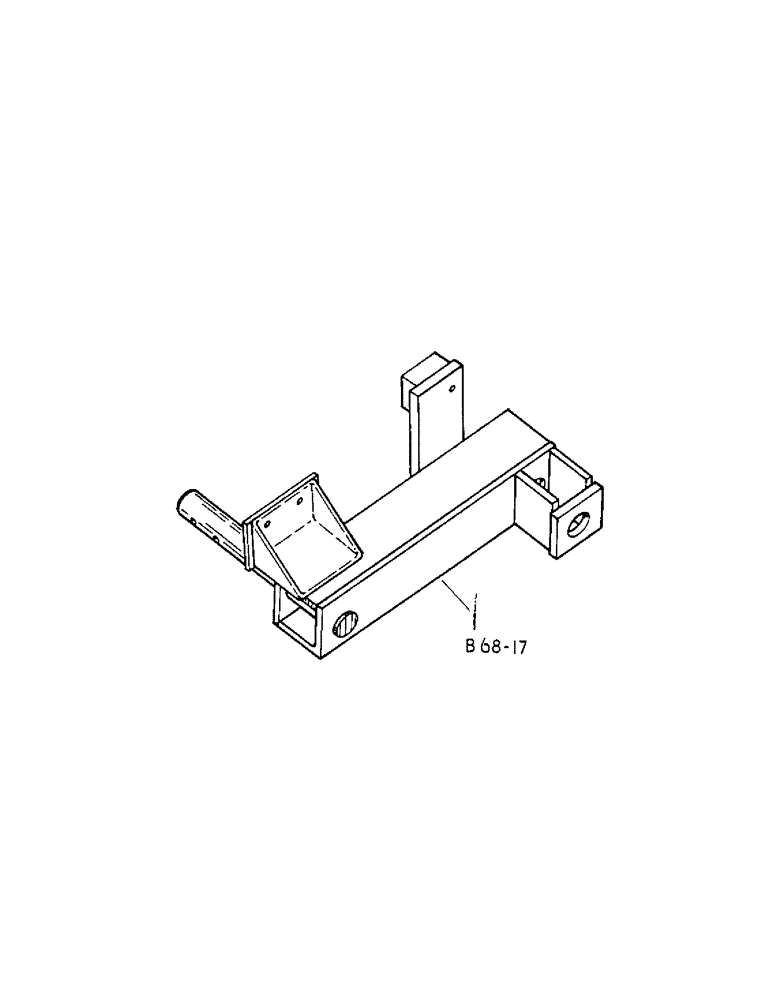

Запчасти Case IH 425 (A-09[A]) - WHEEL RELOCATOR LH ATTACHMENT

1

3103413R1

AXLE

ASSY

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 pln type 5

2шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.
