Запчасти Case IH 425 (A-08) - WHEEL AND AXLE RH

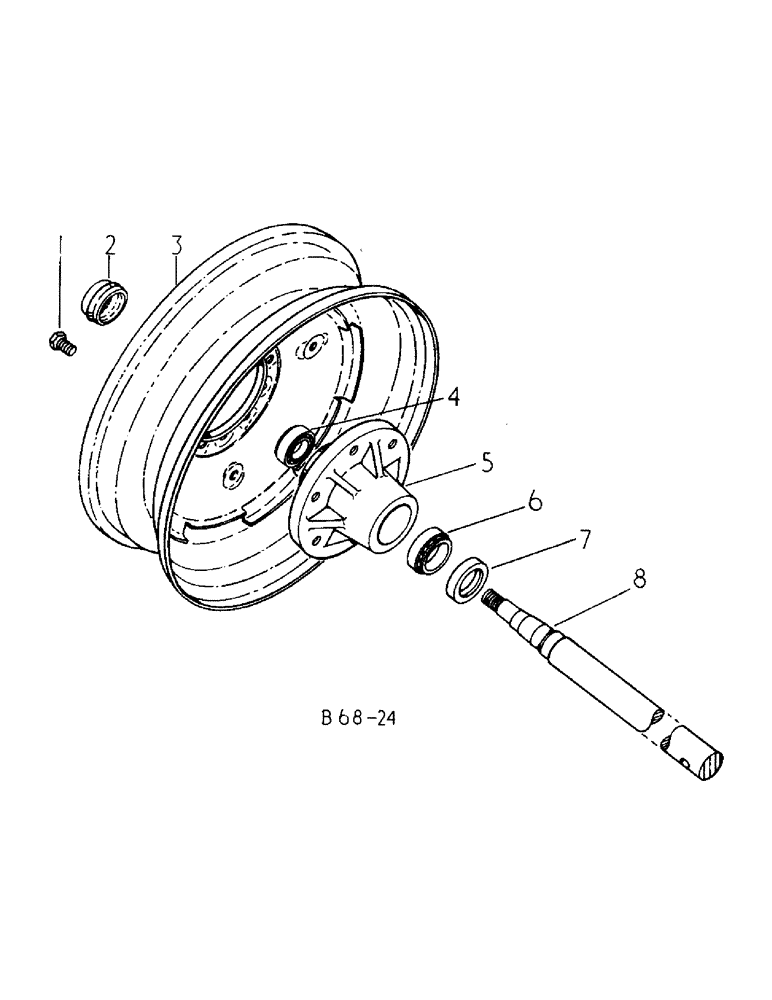

Схема запчастей Case IH 425 - (A-08) - WHEEL AND AXLE RH

Артикул

Название

Примечание

Количество

1

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

6шт.

2

651194R1

CAP

hub

1шт.

3

704675R91

RIM

ASSY, 4.50-16, for 5.00 x 16 or 6.50 x 16 tire

1шт.

4

651814R1

BEARING CUP

BEARING WHEEL OUTER CUP

1шт.

4

651815R1

BEARING, wheel outer cone

1шт.

5

203084C91

HUB

ASSY, wheel RH

1шт.

6

651817R1

BEARING CUP

BEARING, wheel inner cup

1шт.

6

651818R1

BEARING, wheel inner cone

1шт.

7

663004R91

OIL SEAL

bearing

1шт.

8

203083C1

SPINDLE

wheel, standard

1шт.

8

3103112R1

SPINDLE

wheel, wide

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 pln type 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

Выбрано товаров: 17
