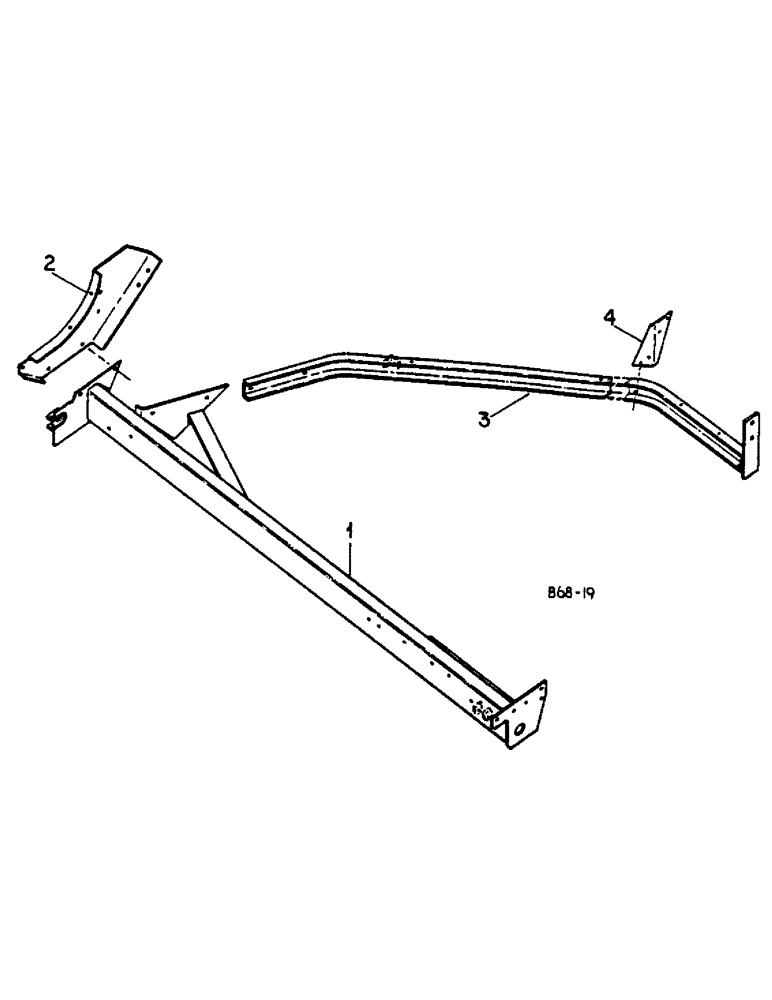

Запчасти Case IH 425 (A-07) - MAIN FRAME

1

3102930R1

CHANNEL

ASSY, axle

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1 pln type 5

2шт.

NLS

NO LONGER SERVICED

7/16 pln type 5

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

2

662148R1

GUSSET

axle RH

1шт.

179858

SUPPORT

7/16 x 1 pln type 5

2шт.

607891R1

WASHER

.469 x 1.000 x .054

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

2шт.

3

3102937R1

BEAM ASSY.

BRACE ASSY, diagonal

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1 pln type 5

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

.469 x 1.000 x .054

2шт.

4

674281R1

BRACKET

diagonal brace

1шт.

NLS

NO LONGER SERVICED

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
