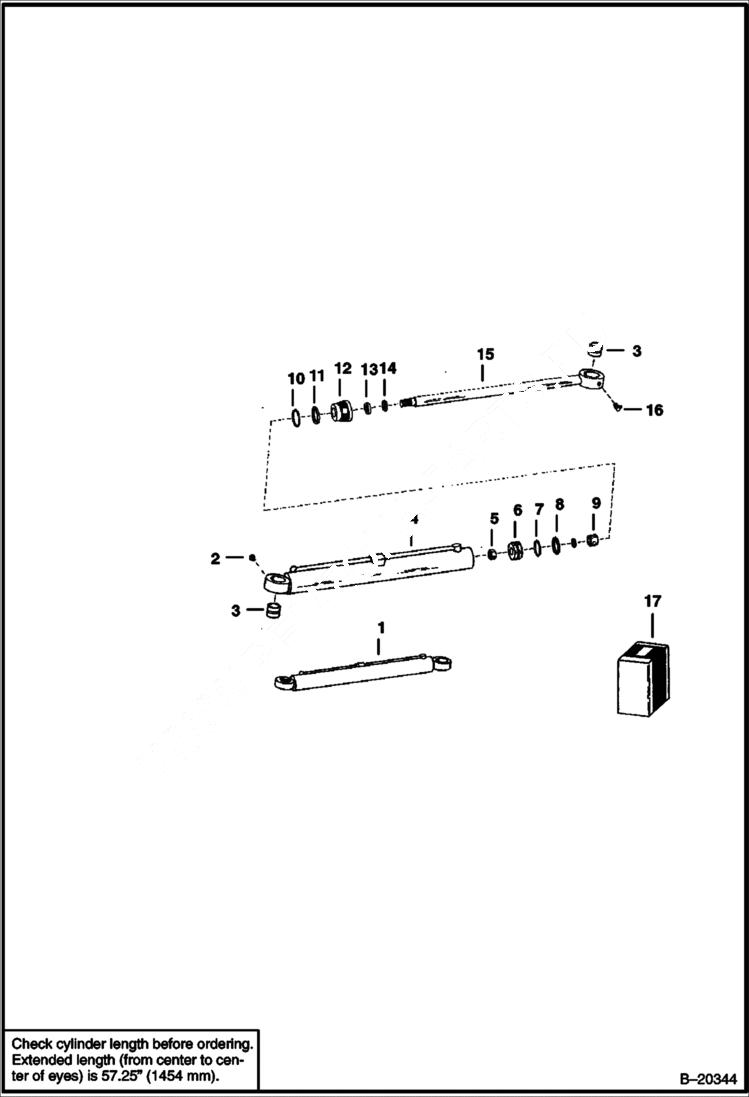

Запчасти Bobcat 900s TILT CYLINDER (S/N 12280 & 12282 & Above) HYDRAULIC SYSTEM

1

6587898

CYLINDER R.H. - Ref. 3-15

1

6587899

CYLINDER L.H. - Ref. 3-15

2

11H15

GREASE FITTING

3

6546879

BUSHING

4

6592411

CASE R.H.

4

6592405

CASE L.H.

5

6810539

NUT Was 6804592 - A

6

6518213

PISTON

7

25K30218

O RING 10 Was 54K30218 - B

8

947088

RING, BACK-UP piston - Was NSS - D

9

6588311

STOP

10

25K40224

O RING 10 Was 54K40224 - B

11

73K232

RING, BACK-UP back-up - Was 80K232 - A

12

6531649

HEAD

13

6667326

SEAL u-cup - Was NSS - D

14

6690707

WIPER, ROD CYL Was 6665086 - A

15

6529670

ROD

16

12H15

FITTING, GREASE 5

17

7135547

KIT, SEAL Ref. 5, 7, 8, 10, 11, 13 & 14 - Was 6816325 - A
