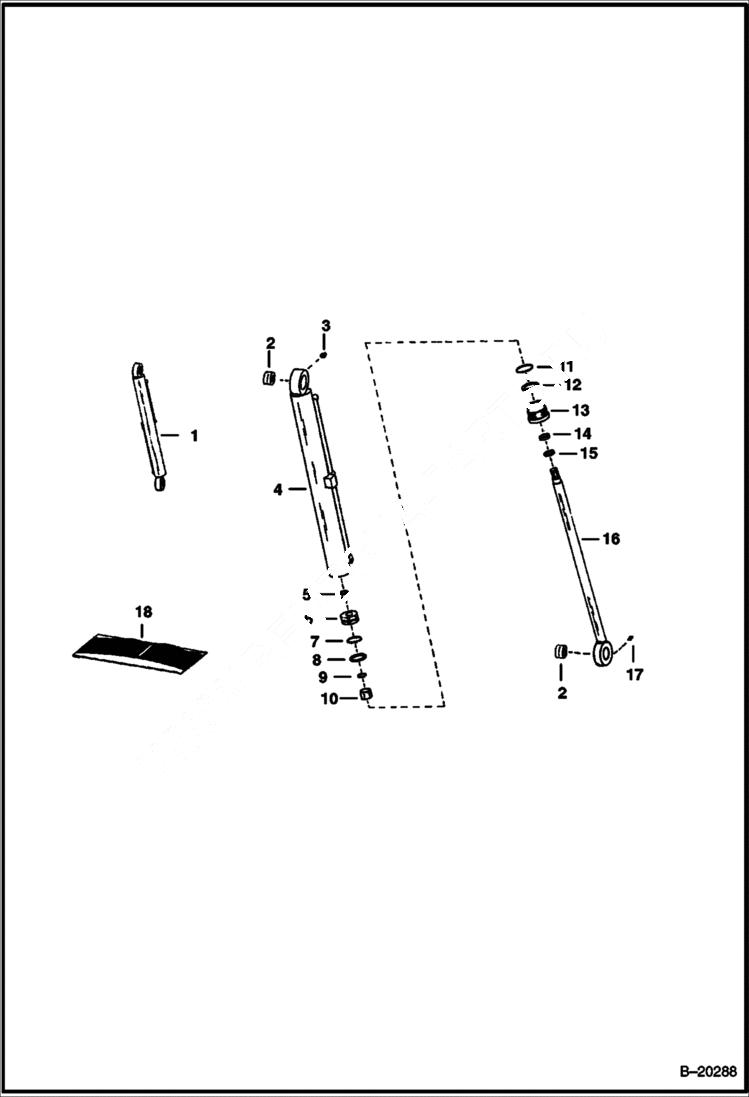

Запчасти Bobcat 900s TILT CYLINDER HYDRAULIC SYSTEM

1

6547298

CYLINDER tilt - R.H. - Ref. 4-16

1

6547299

CYLINDER tilt - L.H. - Ref. 4-16

2

6546879

BUSHING

3

11H15

GREASE FITTING

4

6592044

CASE L.H.

4

6592045

CASE R.H.

5

6810539

NUT Was 6804592 - A

6

6518213

PISTON

7

25K30218

O RING 10 Was 54K30218 - B

8

947088

RING, BACK-UP Piston - Was NSS - D

9

O-RING NSS

10

6518206

STOP cylinder

11

25K40224

O RING 10 Was 54K40224 - B

12

73K232

RING, BACK-UP back-up - Was 80K232 - A

13

6588912

HEAD Was 6531649 - A

14

6667326

SEAL U-Cup - Was NSS - D

15

6690707

WIPER, ROD CYL Was 6665086 - A

16

6593181

ROD

17

12H15

FITTING, GREASE 5

18

7135547

KIT, SEAL Ref. 5, 7-9, 11, 12, 14 & 15 - Was 6816325 - A
