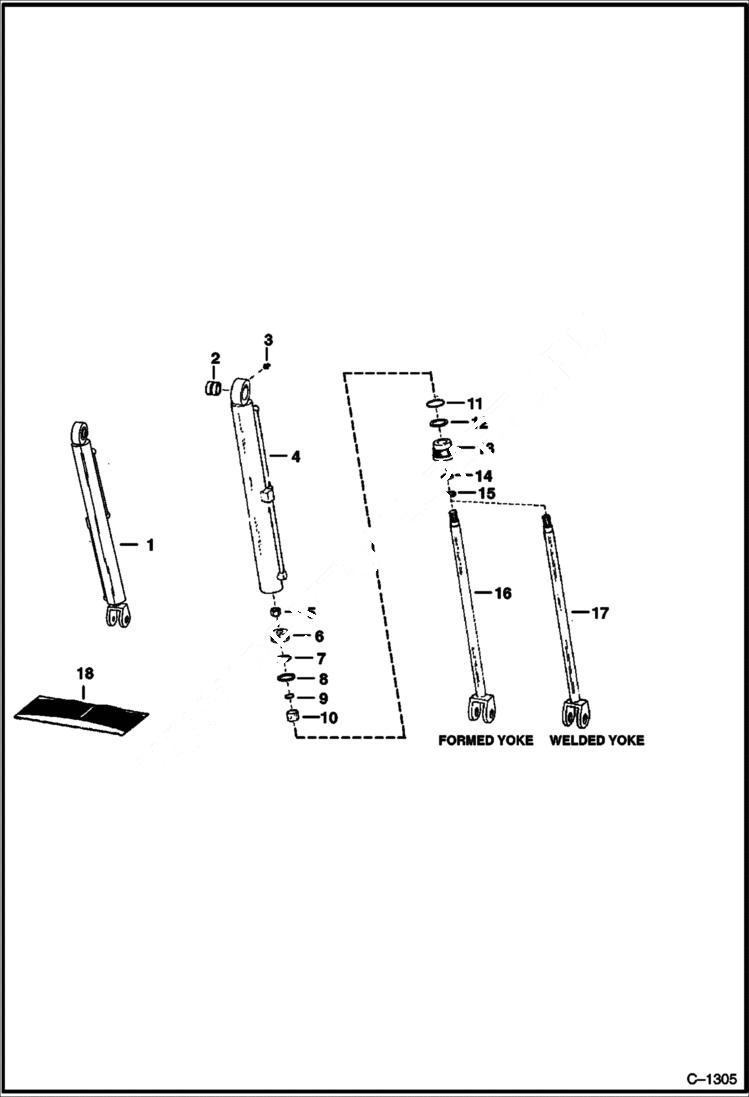

Запчасти Bobcat 900s TILT CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - tilt - Was 6504900 - A

1

CYLINDER NLA - tilt - Was 6504896 - A

2

6505023

BEARING self aligning

3

38H15

FITTING

4

6592044

CASE L.H. - Was 6518601 - A

4

6808969

TUBE ASSY R.H. - Was 6592045 - B

5

NUT NLA - Use W/Ref. 17

5

6810539

NUT Use W/Ref. 16 - Was 6804592 - A

6

PISTON NLA - Use W/Ref. 17

6

6518213

PISTON Use W/Ref. 16

7

25K30218

O RING 10 Was 54K30218 - B

8

947088

RING, BACK-UP Was NSS - A

9

O-RING NSS

10

STOP NSS

11

25K40224

O RING 10 Was 54K40224 - B

12

73K232

RING, BACK-UP back-up - Was 80K232 - A

13

6531649

HEAD Was 6530334 - A

14

6667326

SEAL Was NSS - A

15

6690707

WIPER, ROD CYL Was 6665086 - A

16

SHAFT NLA - 1.5'' (38.1 mm) dia. 1.125'' NF - Was 6805541 - A

17

ROD NLA - 1.5'' (38.1 mm) dia. 7/8'' NF - Order Ref. 16 (6805541 Rod), Ref. 6 (6518213 Piston) & Ref. 6 (6810539 Nut)

18

7135547

KIT, SEAL Ref. 7-9, 11, 12, 14 & 15 - Was 6816325 - A
