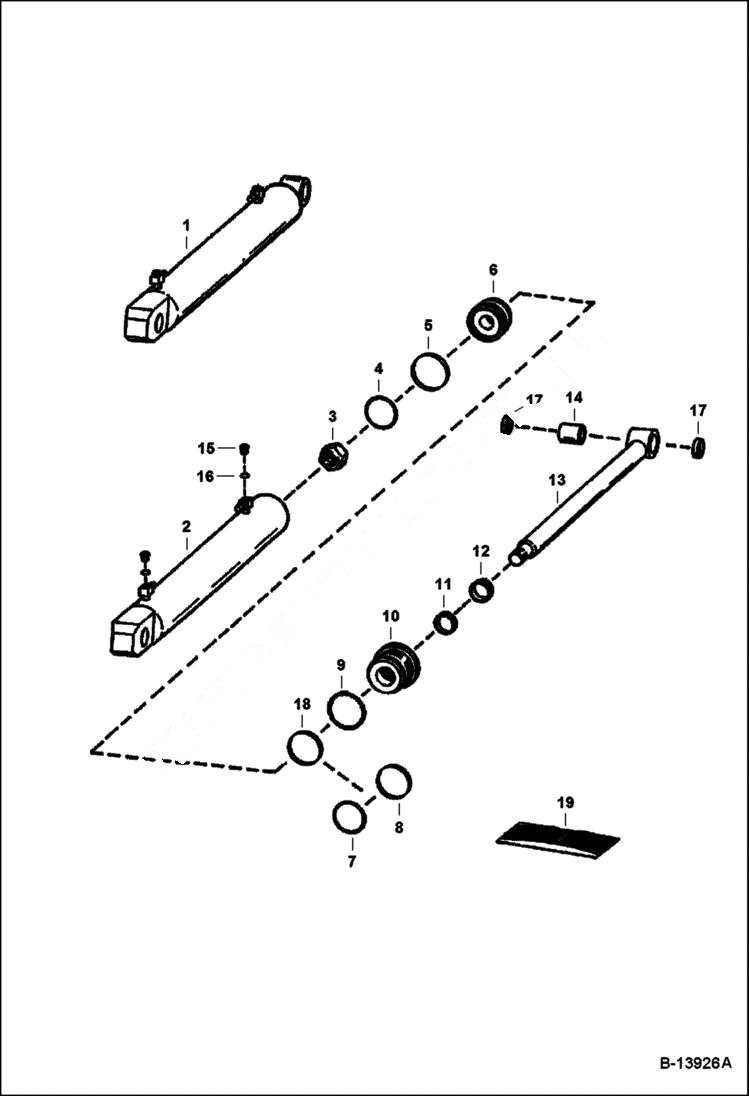

Запчасти Bobcat 900s TILT CYLINDER HYDRAULIC SYSTEM

1

6588974

CYLINDER, TILT W/Ref. 2 - 17 - Counter bore on rod side of piston

2

6588973

CASE

3

6810539

NUT Was 6804592 - A

4

25K30218

O RING 10 Was 54K30218 - B

5

947088

RING, BACK-UP

6

6588978

PISTON

7

25K40224

O RING 10 Was 54K40224 - B

8

73K232

RING, BACK-UP back-up - Was 80K232 - A

9

58K234

O RING 10 Was 54K40300 - B

10

6538367

HEAD, CYL TILT

11

6667326

SEAL Was 6538141 - A

12

6690707

WIPER, ROD CYL Was 6665086 - A

13

6588972

ROD

14

6539341

BUSHING

15

79K6

O RING 10

15

95K6

O'RING tapered boss face

16

PLUG NLA - Was 47K000005B - A

16

90KV5

PLUG W/Ref. 15 - tapered boss face

17

6631067

SEAL, OIL

18

7008355

SEAL, QUAD

19

7135547

KIT, SEAL Ref. 3-5, 9, 10, 12, & 18 - Was 6816325 - A
