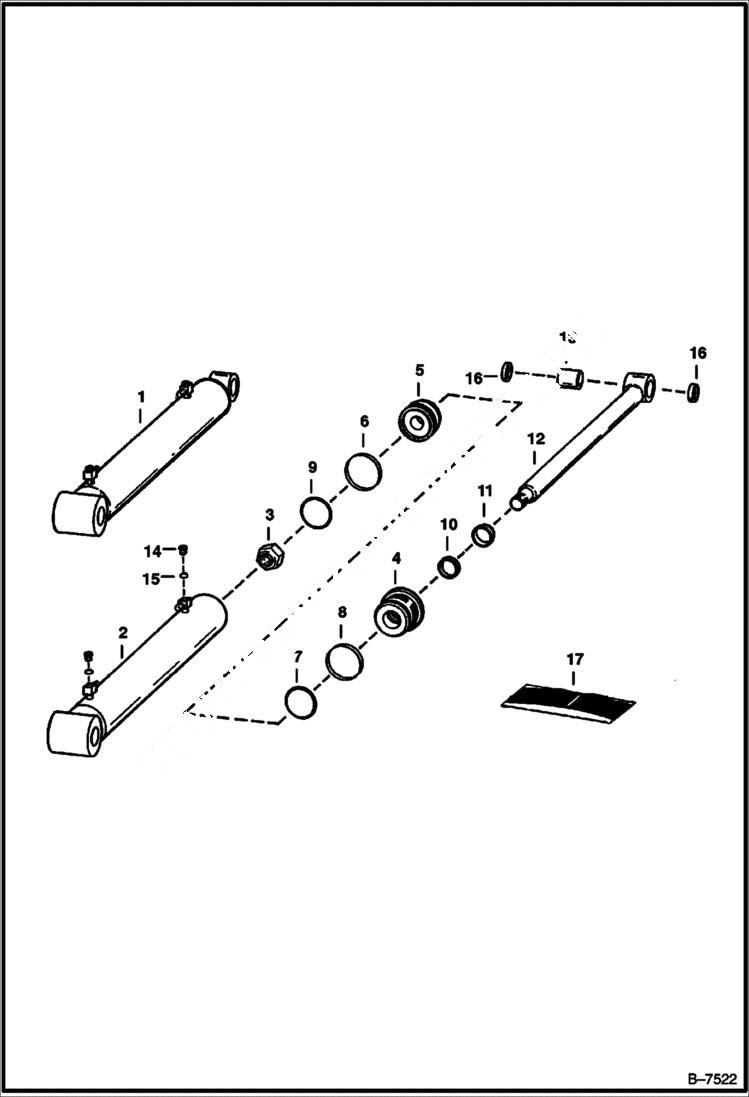

Запчасти Bobcat 900s TILT CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - Ref. 2 - 15 - Order 6588974 - Was 6593384 - A

2

CASE NLA - Order 6588974 - Was 6592794 - A

3

6810539

NUT Was 6804592 - A

4

6588912

HEAD Was 6531649 - A

5

6593476

PISTON

6

O-RING NSS

7

O-RING NSS

8

WASHER NSS - back-up

9

O-RING NSS

10

SEAL NSS

11

SEAL NSS

12

6593052

ROD Also Order Ref. 13

13

6539341

BUSHING Was 6576755 - A

14

47K5

PLUG

15

79K6

O RING 10

16

6631067

SEAL, OIL

17

7135547

KIT, SEAL Ref. 6-11 - Was 6816325 - A
