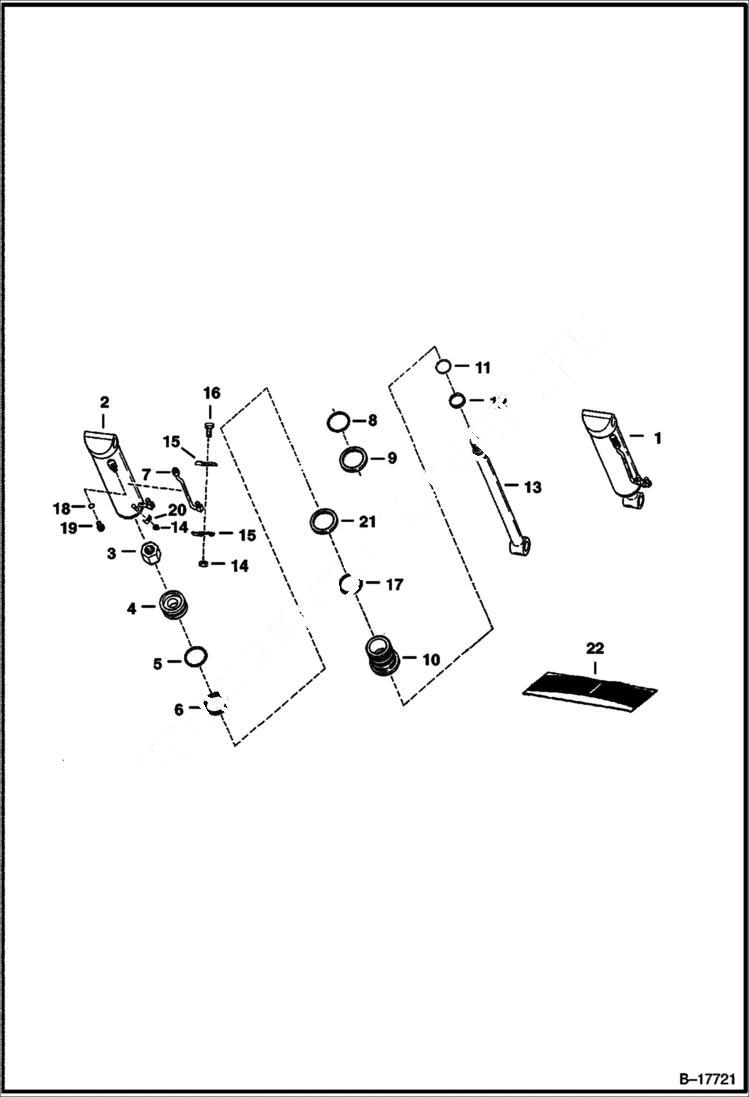

Запчасти Bobcat 500s TILT CYLINDER HYDRAULIC SYSTEM

1

6589331

CYLINDER, TILT tilt - Ref. 2-16

2

CASE NLA - Order 6589331 - Was 6589332 - A

3

6810539

NUT Was 6804592 - A

4

6803870

PISTON Was 6553912 - A

5

947088

RING, BACK-UP Was NSS

6

25K30218

O RING 10 Was 54K30218 - B

7

6593392

TUBE

8

25K40224

O RING 10 Was 54K40224 - B

9

73K232

RING, BACK-UP back-up - Was 80K232 - A

10

6538367

HEAD, CYL TILT

11

6667326

SEAL Was 6538141 - B

12

6690707

WIPER, ROD CYL Was 6665086 - A

13

6592897

ROD

14

95D6

NUT Was 91D-6 - A

15

6502426

CLAMP

16

17C624

BOLT 5

17

58K234

O RING 10 Was 54K40300 - B

18

79K6

O RING 10 Flat Boss Face

18

95K6

O'RING Tapered Boss Face

19

PLUG NLA - W/Ref. 18 - Flat Boss Face - Was 90K-5 - B

19

90KV5

PLUG W/Ref. 18 - Tapered Boss Face

20

6562266

CLAMP

21

7008355

SEAL, QUAD

22

7135547

KIT, SEAL Ref. 3, 5, 6, 8, 9, 11 & 12 - Was 6816325 - A
