Запчасти Bobcat BACKHOE CYLINDER DIPPER (401500101 & Above) (232900101 & Above) 725S BACKHOE

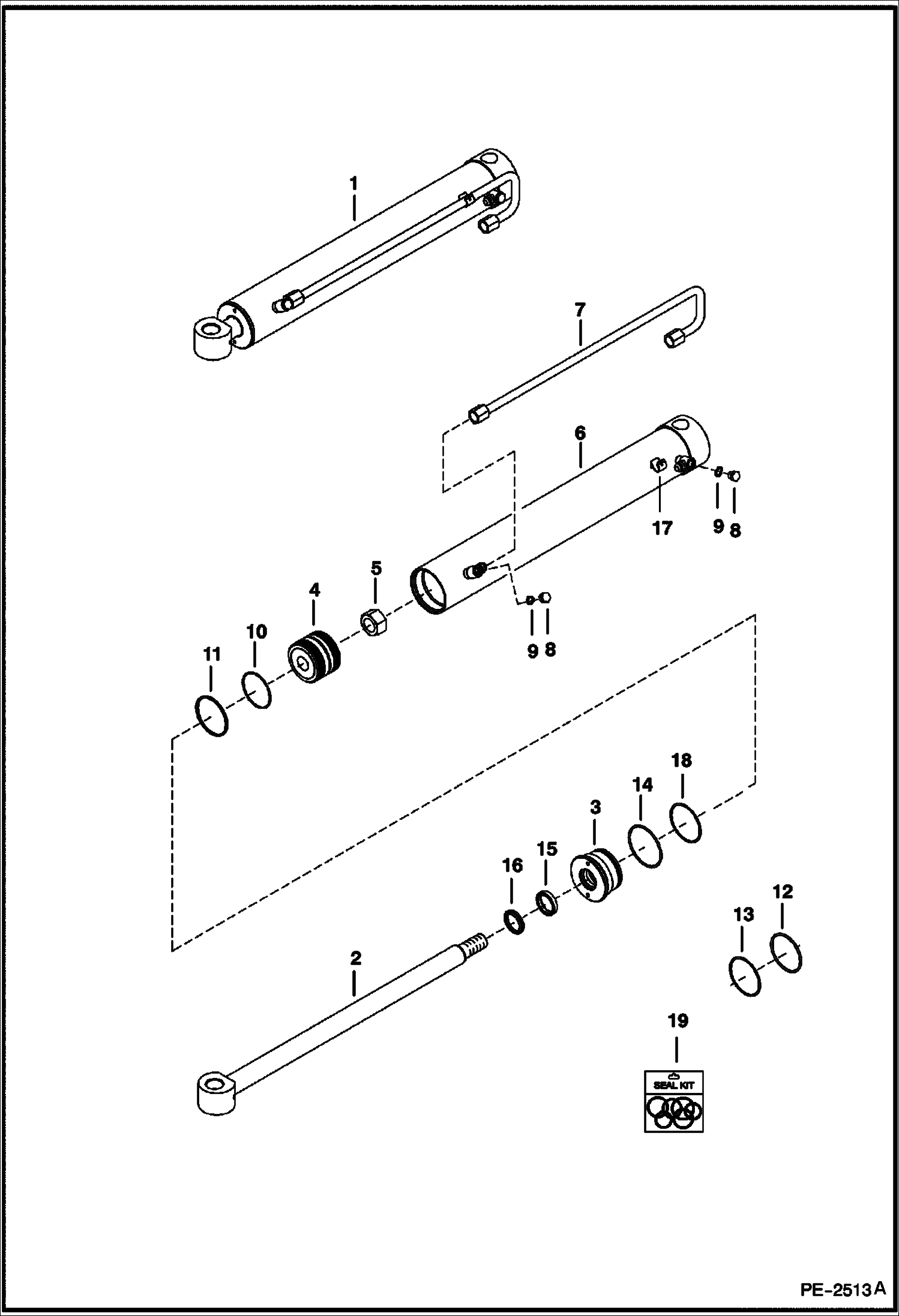

Схема запчастей Bobcat BACKHOE - CYLINDER DIPPER (401500101 & Above) (232900101 & Above) 725S BACKHOE

Артикул

Название

Примечание

Количество

1

7103776

CYLINDER W/Ref 2-6, 8-16

2

7103777

ROD

3

6538367

HEAD, CYL TILT

4

7103673

PISTON

5

6810539

NUT

6

7104103

TUBE

7

6537120

TUBE

8

6812171

PLUG

9

75K6

O-RING

10

25K30218

O RING 10 Was 54K30218 - B

11

947088

RING, BACK-UP

12

25K40224

O RING 10 Was 54K40224 - B

13

73K232

RING, BACK-UP back-up - Was 80K232 - A

14

58K234

O RING 10 Was 54K40300 - B

15

6667326

SEAL

16

6690707

WIPER, ROD CYL Was 6665086 - A

17

6690911

CLAMP

18

7008355

SEAL, QUAD

19

7135547

KIT, SEAL W/Ref 5 & 10-16 - Was 6816325 - A

Выбрано товаров: 19
