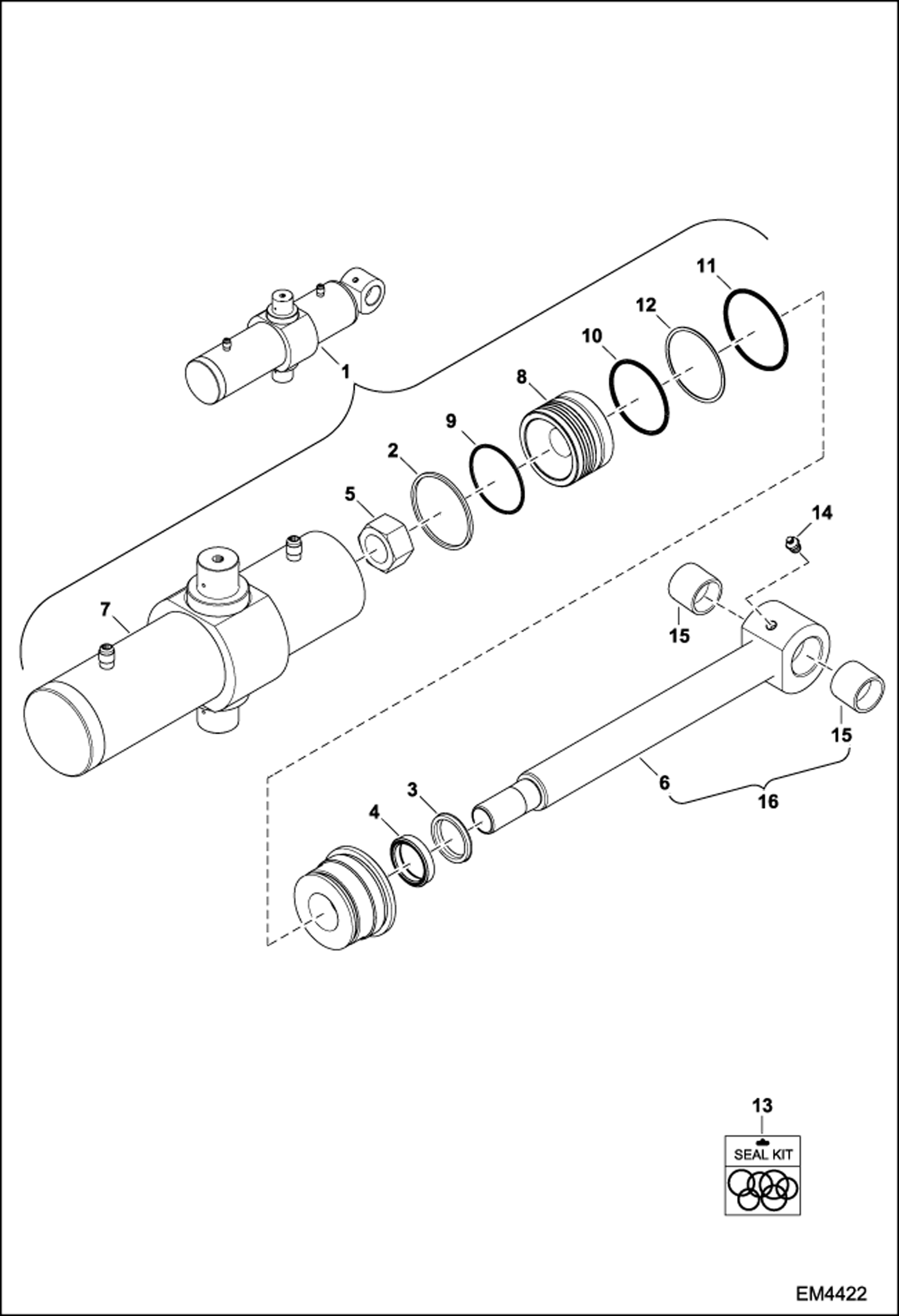

Запчасти Bobcat BACKHOE SWING CYLINDER (A2HH, A36S) BACKHOE

1

6817561

SWING CYLINDER W/Ref. 2-12, 15, 16

2

54K30218

O-RING

3

6665086

SEAL

4

6667326

SEAL

5

6810539

NUT

6

SHAFT NLA - Order Ref. 16

7

7125461

TUBE ASSY W/Ref. 11

8

7102223

PISTON

9

947088

RING, BACK-UP

10

54K40224

O-RING

11

58K234

O RING 10 Was 54K40300 - A

12

73K232

RING, BACK-UP

13

7135547

KIT, SEAL W/Ref. 2, 4, 5, 9, 10, 12 - A

14

10H25

FITTING, GREASE 5

15

6651449

BEARING

16

6816916

SHAFT W/Ref. 6, 15

17

7008355

SEAL, QUAD
