Запчасти Bobcat 331 SWING CYLINDER HYDRAULIC SYSTEM

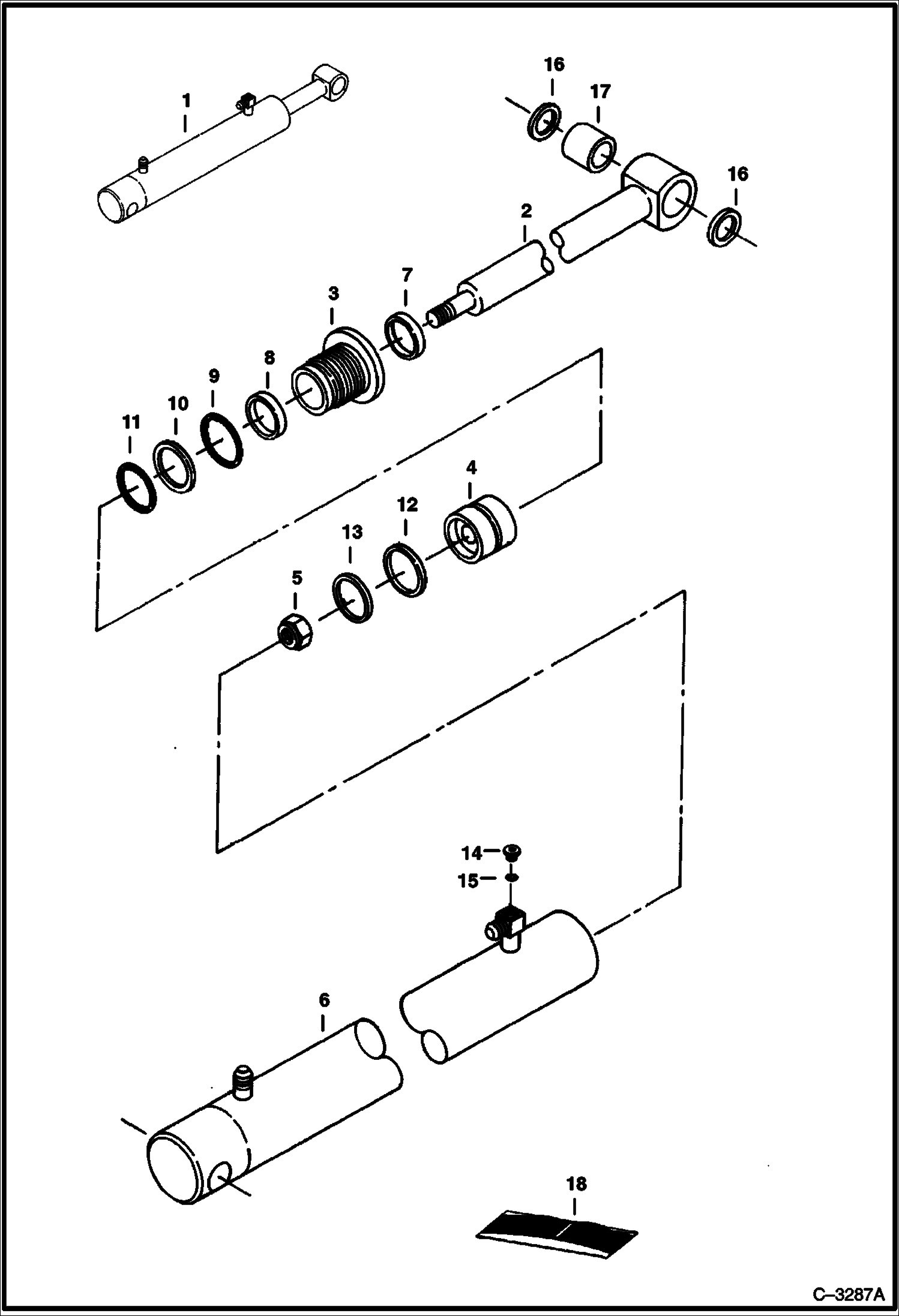

Схема запчастей Bobcat 331 - SWING CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6589756

CYLINDER Ref. 2-17

2

6589757

ROD W/Ref. 16 & 17

3

6538367

HEAD, CYL TILT

4

6589759

PISTON

5

6810539

NUT 1.125'' ID - Was 6803253 - A

6

6537581

HOUSING

7

6690707

WIPER, ROD CYL Was 6665086 - A

8

6667326

SEAL rod

9

58K234

O RING 10 Was 54K40300 - B

10

73K232

RING, BACK-UP back-up - Was 80K232 - A

11

25K40224

O RING 10 Was 58K040224B - B

12

947088

RING, BACK-UP

13

25K30218

O RING 10 Was 54K30218 - B

14

PLUG NLA - W/Ref. 15 - flat boss face - Was 47K000005B - A

14

90KV2

PLUG W/Ref. 15 - tapered boss face

15

79K3

O RING 10 flat boss face

15

95K3

O'RING tapered boss face

16

6660075

SEAL

17

6539110

BUSHING, PRESS FIT

18

7135547

KIT, SEAL W/Ref. 5 & 7-13 - Was 6803272 - A

Выбрано товаров: 20
