Запчасти Bobcat 329 SWING CYLINDER HYDRAULIC SYSTEM

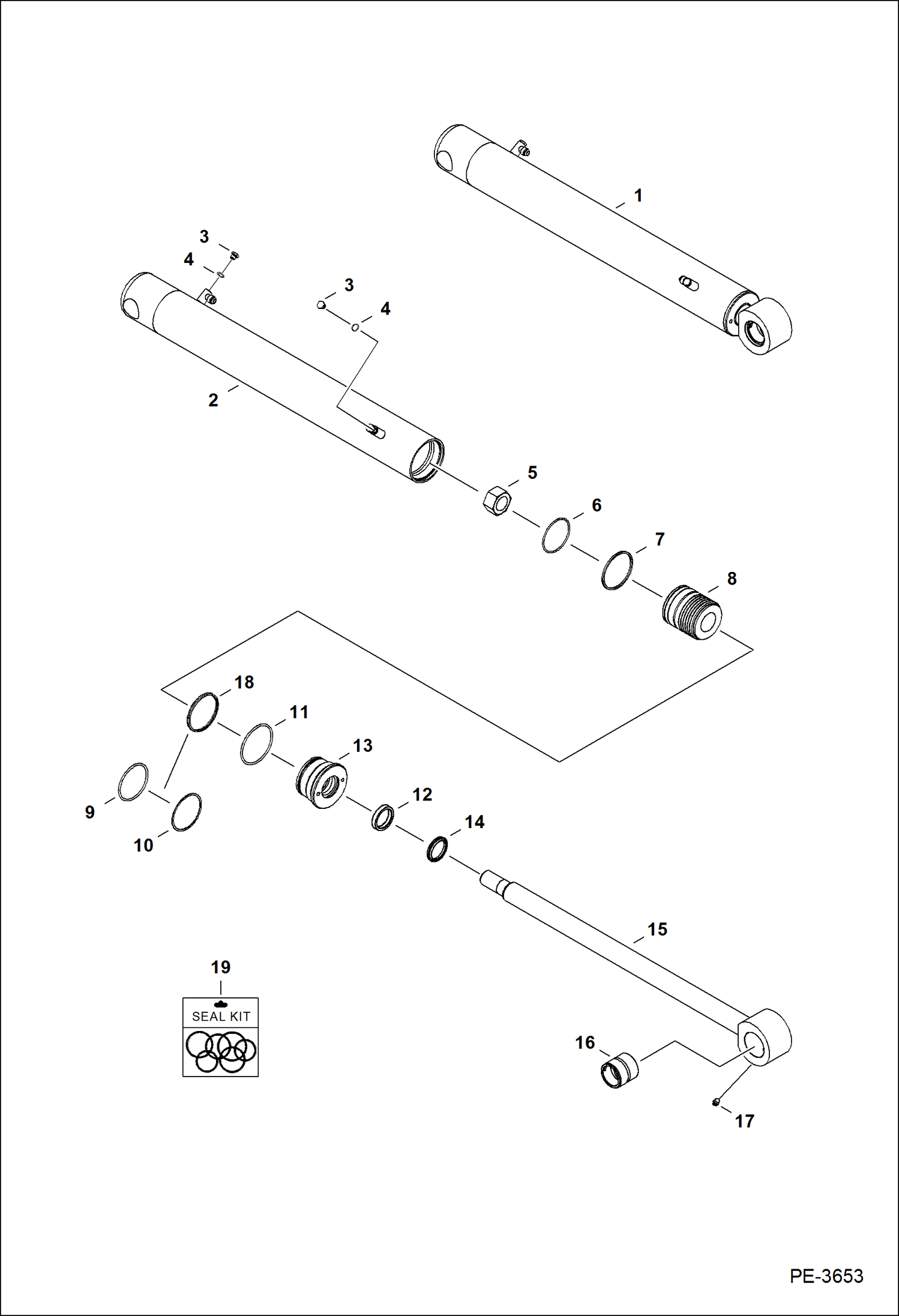

Схема запчастей Bobcat 329 - SWING CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6816319

CYLINDER, SWING Assy. - W/Ref. 2-15 & 17 - Also Order Ref. 16 & (2) of 6660075 dust seals

2

6815992

HOUSING

3

6812170

PLUG W/Ref 4

4

75K3

O-RING

5

6810539

NUT

6

947088

RING, BACK-UP

7

25K30218

O RING 10 Was 54K30218 - B

8

6816288

PISTON

9

25K40224

O RING 10 Was 54K40224 - B

10

73K232

RING, BACK-UP back-up - Was 80K232 - A

11

58K234

O RING 10 Was 54K40300 - B

12

6667326

SEAL rod

13

6538367

HEAD, CYL TILT

14

6690707

WIPER, ROD CYL Was 6665086 - A

15

6810420

ROD

16

6808997

BUSHING wear

17

10H25

FITTING, GREASE 5 grease

18

7008355

SEAL, QUAD

19

7135547

KIT, SEAL W/Ref 5-7, 9-12, 14 - Was 6816325 - A

Выбрано товаров: 19
