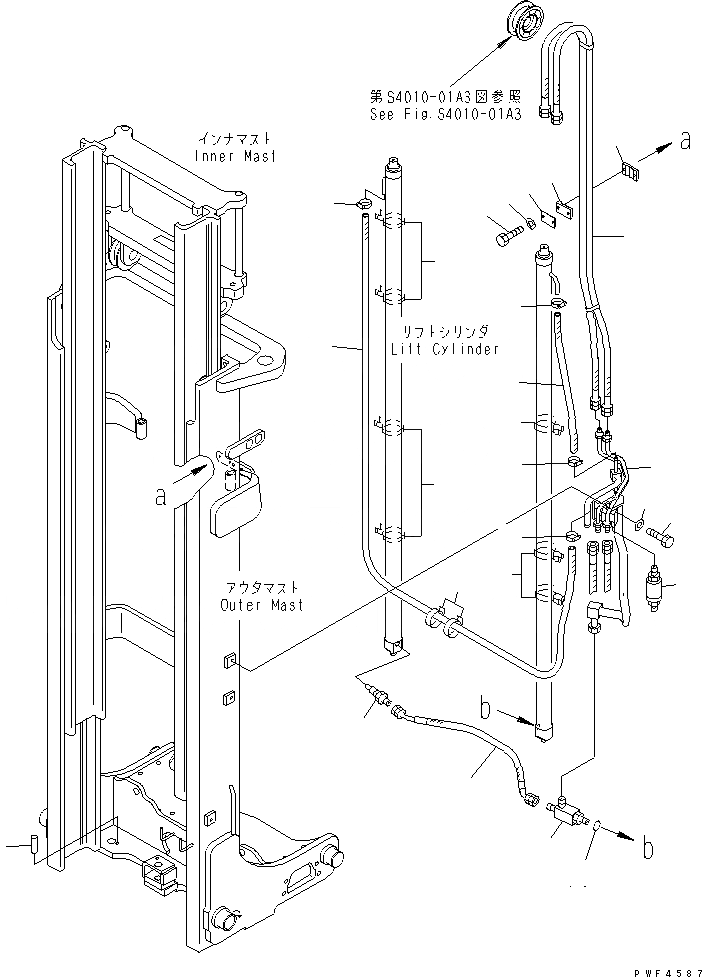

Запчасти Komatsu FB14-18RL-12 МАЧТА (FREE VIEW МАЧТА ТРУБЫ) (ДЛЯ .M - .M МАЧТА) (С ХОЛОДН.) (/) МАЧТА

1

3LA-71-18110YK

PIPE ASS'Y

SN: 85001-UP

1шт.

|$18

3LA-71-18110WK

PIPE ASS'Y,(COLD)

SN: 85001-UP

1шт.

2

01010-81020

BOLT

SN: 85001-UP

1шт.

3

01643-31032

WASHER

SN: 85001-UP

1шт.

4

3LA-71-18280

CLAMP

SN: 85001-UP

2шт.

5

01010-80630

BOLT

SN: 85001-UP

2шт.

6

01640-20610

WASHER

SN: 85001-UP

2шт.

7

3LA-71-18261

PLATE

SN: 85001-UP

1шт.

8

07281-00197

CLAMP

SN: 85001-UP

4шт.

9

37B-1AE-6010

BAND

SN: 85001-UP

2шт.

10

3EA-71-37210

VALVE ASS'Y,DOWN CONTROL (FOR 4.0M-4.5M)

SN: 85001-UP

1шт.

|$30

3EB-71-27300

VALVE ASS'Y,DOWN CONTROL (FOR 4.7M-6.0M)

SN: 85001-UP

1шт.

11

3EA-71-17130

VALVE ASS'Y,DOWN SAFETY (FOR 4.0M-4.5M)

SN: 85001-UP

1шт.

|$32

3EB-71-27400

VALVE ASS'Y,DOWN SAFETY (FOR 4.7M-6.0M)

SN: 85001-UP

1шт.

12

3LA-71-18240

TEE,(FOR 4.0M TO 4.5M MAST)

SN: 85001-UP

1шт.

|$34

3LA-71-18341

TEE,(FOR 4.7M TO 6.0M MAST)

SN: 85001-UP

1шт.

13

07000-22014

O-RING,(FOR 4.0M TO 4.5M MAST)

SN: 85001-UP

1шт.

|$36

07000-12018

O-RING,(FOR 4.7M TO 6.0M MAST)

SN: 85001-UP

1шт.

14

04022-08020

PIN,(FOR 4.0M TO 4.5M MAST)

SN: 85001-UP

2шт.

|$38

04022-08025

PIN,(FOR 4.7M TO 6.0M MAST)

SN: 85001-UP

2шт.

15

07627-003A4

HOSE,(FOR 4.0M TO 4.5M MAST)

SN: 85001-UP

1шт.

|$40

3LA-71-18351

HOSE,(FOR 4.7M TO 6.0M MAST)

SN: 85001-UP

1шт.

16

37R-TAX-8641

HOSE,(FOR 4.0M MAST)

SN: 85001-UP

1шт.

|$43

37R-TAX-8721

HOSE,(FOR 4.3M MAST)

SN: 85001-UP

1шт.

|$44

37R-TAX-8761

HOSE,(FOR 4.5M MAST)

SN: 85001-UP

1шт.

|$45

37R-TAX-8821

HOSE,(FOR 4.7M MAST)

SN: 85001-UP

1шт.

|$46

37R-TAX-8881

HOSE,(FOR 5.0M MAST)

SN: 85001-UP

1шт.

|$47

37R-TAX-8981

HOSE,(FOR 5.5M MAST)

SN: 85001-UP

1шт.

|$48

37R-TBX-8101

HOSE,(FOR 6.0M MAST)

SN: 85001-UP

1шт.

17

37A-502-6350

HOSE,(FOR 4.0M MAST)

SN: 85001-UP

1шт.

|$50

07261-20938

HOSE,(FOR 4.3M MAST)

SN: 85001-UP

1шт.

|$51

07261-20937

HOSE,(FOR 4.5M MAST)

SN: 85001-UP

1шт.

|$52

37A-502-6390

HOSE,(FOR 4.7M MAST)

SN: 85001-UP

1шт.

|$53

07261-20940

HOSE,(FOR 5.0M MAST)

SN: 85001-UP

1шт.

|$54

37A-502-6430

HOSE,(FOR 5.5M MAST)

SN: 85001-UP

1шт.

|$55

07261-20945

HOSE,(FOR 6.0M MAST)

SN: 85001-UP

1шт.

18

37A-502-6110

HOSE,(FOR 4.0M MAST)

SN: 85001-UP

1шт.

|$57

37A-502-6130

HOSE,(FOR 4.3M MAST)

SN: 85001-UP

1шт.

|$58

37A-502-6140

HOSE,(FOR 4.5M MAST)

SN: 85001-UP

1шт.

|$59

07261-20915

HOSE,(FOR 4.7M MAST)

SN: 85001-UP

1шт.

|$60

37A-502-6170

HOSE,(FOR 5.0M MAST)

SN: 85001-UP

1шт.

|$61

07261-20919

HOSE,(FOR 5.5M MAST)

SN: 85001-UP

1шт.

|$62

07261-20922

HOSE,(FOR 6.0M MAST)

SN: 85001-UP

1шт.

19

3EB-71-38150

CLAMP

SN: 85001-UP

7шт.
