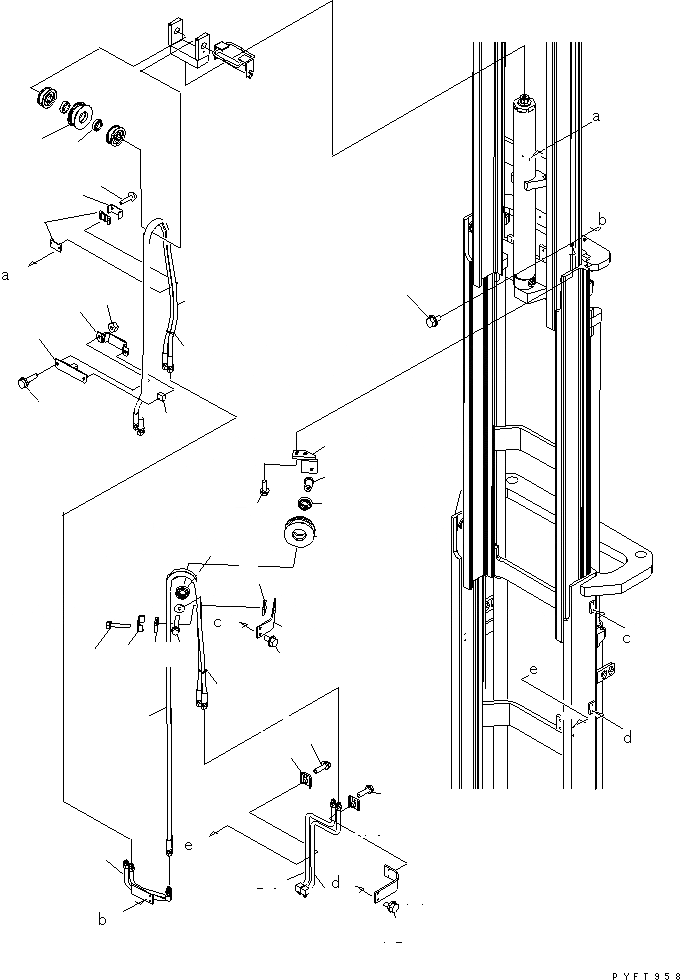

Запчасти Komatsu FB15HB СЕКЦ. УПРАВЛЯЮЩ. КЛАПАН TFV МАЧТА ТРУБЫ (.7-.M) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

45A-1MG-4520

CLAMP

SN: 830001-UP

1шт.

2

45A-1MG-4530

CLAMP

SN: 830001-UP

1шт.

3

01024-80830

BOLT

SN: 830001-UP

2шт.

4

01580-10806

NUT

SN: 830001-UP

2шт.

5

45B-2MG-3080

RUBBER

SN: 830001-UP

1шт.

6

45A-1MG-4110

CLAMP

SN: 830001-UP

2шт.

7

45A-1MG-4120

RUBBER

SN: 830001-UP

4шт.

8

01024-80635

BOLT

SN: 830001-UP

4шт.

9

45A-1MG-4060YK

PLATE

SN: 830001-UP

1шт.

|$27

45A-1MG-4060WK

PLATE,(COLD)

SN: 830001-UP

1шт.

10

01024-80816

BOLT

SN: 830001-UP

2шт.

11

45A-1MG-4070YK

PLATE

SN: 830001-UP

1шт.

|$30

45A-1MG-4070WK

PLATE,(COLD)

SN: 830001-UP

1шт.

12

01024-80816

BOLT

SN: 830001-UP

2шт.

13

45B-1MA-5180

CLAMP

SN: 830001-UP

2шт.

14

01024-80830

BOLT

SN: 830001-UP

4шт.

15

45A-1MG-4141YK

BRACKET

SN: 830001-UP

1шт.

|$37

45A-1MG-4141WK

BRACKET,(COLD)

SN: 830001-UP

1шт.

16

45A-1MG-4150

SHAFT

SN: 830001-UP

1шт.

17

45A-1MG-4160YK

PULLY

SN: 830001-UP

1шт.

|$40

45A-1MG-4160WK

PULLY,(COLD)

SN: 830001-UP

1шт.

18

3EA-51-11240

WASHER

SN: 830001-UP

1шт.

19

01024-81275

BOLT

SN: 830001-UP

1шт.

20

06002-06006

BEARING

SN: 830001-UP

2шт.

21

01024-81030

BOLT

SN: 830001-UP

2шт.

22

45A-1MG-4160YK

PULLY

SN: 830001-UP

1шт.

|$46

45A-1MG-4160WK

PULLY,(COLD)

SN: 830001-UP

1шт.

23

06002-06006

BEARING

SN: 830001-UP

2шт.

24

45A-1MG-4810YK

PIPE

SN: 830001-UP

1шт.

|$49

45A-1MG-4810WK

PIPE,(COLD)

SN: 830001-UP

1шт.

25

01024-80816

BOLT

SN: 830001-UP

2шт.

26

37A-ZFD-4010YK

PIPE,(3.7-4.0M)

SN: 830001-UP

1шт.

|$68

37A-ZFD-4020YK

PIPE,(4.3-4.7M)

SN: 830001-UP

1шт.

|$69

37A-ZFD-4030YK

PIPE,(5.0-5.5M)

SN: 830001-UP

1шт.

|$70

37A-ZFD-4040YK

PIPE,(6.0M)

SN: 830001-UP

1шт.

|$71

37A-ZFD-4010WK

PIPE,(3.7-4.0M) (COLD)

SN: 830001-UP

1шт.

|$72

37A-ZFD-4020WK

PIPE,(4.3-4.7M) (COLD)

SN: 830001-UP

1шт.

|$73

37A-ZFD-4030WK

PIPE,(5.0-5.5M) (COLD)

SN: 830001-UP

1шт.

|$74

37A-ZFD-4040WK

PIPE,(6.0M) (COLD)

SN: 830001-UP

1шт.

27

37A-ZFE-4010YK

PIPE,(3.7-4.0M)

SN: 830001-UP

1шт.

|$76

37A-ZFE-4020YK

PIPE,(4.3-4.7M)

SN: 830001-UP

1шт.

|$77

37A-ZFE-4030YK

PIPE,(5.0-5.5M)

SN: 830001-UP

1шт.

|$78

37A-ZFE-4040YK

PIPE,(6.0M)

SN: 830001-UP

1шт.

|$79

37A-ZFE-4010WK

PIPE,(3.7-4.0M) (COLD)

SN: 830001-UP

1шт.

|$80

37A-ZFE-4020WK

PIPE,(4.3-4.7M) (COLD)

SN: 830001-UP

1шт.

|$81

37A-ZFE-4030WK

PIPE,(5.0-5.5M) (COLD)

SN: 830001-UP

1шт.

|$82

37A-ZFE-4040WK

PIPE,(6.0M) (COLD)

SN: 830001-UP

1шт.

28

37A-ZRN-4160

HOSE,(3.7M)

SN: 830001-UP

1шт.

|$84

37A-ZRN-4180

HOSE,(4.0M)

SN: 830001-UP

1шт.

|$85

37A-ZRN-4200

HOSE,(4.3M)

SN: 830001-UP

1шт.

|$86

37A-ZRN-4210

HOSE,(4.5M)

SN: 830001-UP

1шт.

|$87

37A-ZRN-4230

HOSE,(4.7M)

SN: 830001-UP

1шт.

|$88

37A-ZRN-4250

HOSE,(5.0M)

SN: 830001-UP

1шт.

|$89

37A-ZRN-4280

HOSE,(5.5M)

SN: 830001-UP

1шт.

|$90

37A-ZRN-4320

HOSE,(6.0M)

SN: 830001-UP

1шт.

29

37A-ZRN-4220

HOSE,(3.7M)

SN: 830001-UP

1шт.

|$92

37A-ZRN-4260

HOSE,(4.0-4.3M)

SN: 830001-UP

1шт.

|$93

37A-ZRN-4290

HOSE,(4.5M)

SN: 830001-UP

1шт.

|$94

37A-ZRN-4320

HOSE,(4.7M)

SN: 830001-UP

1шт.

|$95

37A-ZRN-4310

HOSE,(5.0M)

SN: 830001-UP

1шт.

|$96

37A-ZRN-4380

HOSE,(5.5-6.0M)

SN: 830001-UP

1шт.

30

37B-1AE-6030

BAND

SN: 830001-UP

10шт.
