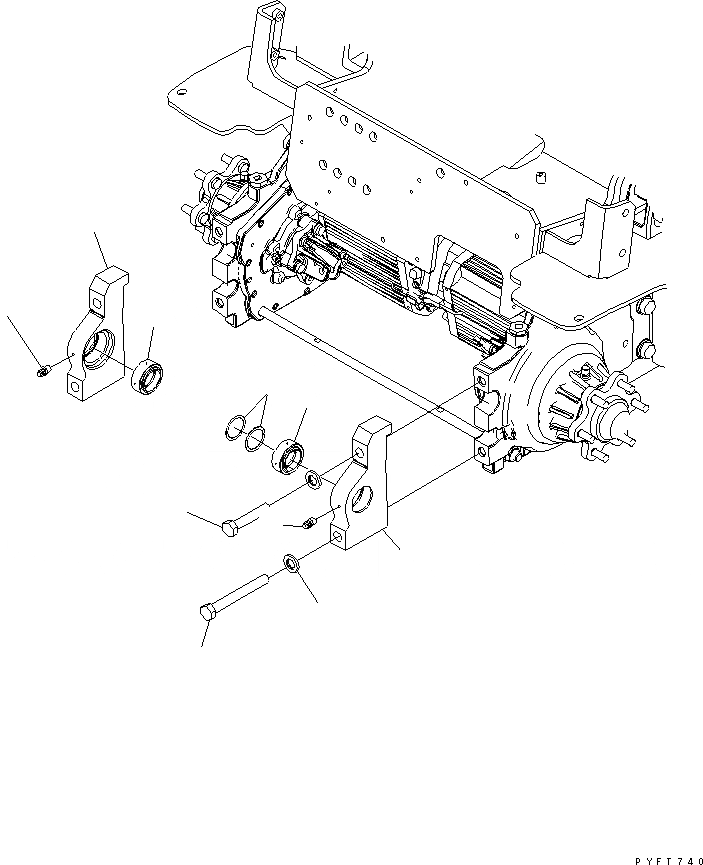

Запчасти Komatsu FB15MF МАЧТА ЭЛЕМЕНТЫ КРЕПЛЕНИЯ ПЕРЕДАЧА

|$2

3BA-21-71710

SUPPORT ASS'Y,(R.H.)

SN: 825001-UP

1шт.

|$3

3BA-21-71810

SUPPORT ASS'Y,(R.H.) (FOR FB09ML TO FB15ML)

SN: 825001-UP

1шт.

|$4

3BA-21-71710WK

SUPPORT ASS'Y,(R.H.)(COLD)

SN: 825001-UP

1шт.

1

3BA-21-71720SA

SUPPORT,(R.H.)

SN: 825001-UP

1шт.

|$6

3BA-21-71820SA

SUPPORT,(R.H.) (FOR FB09ML TO FB15ML)

SN: 825001-UP

1шт.

2

3BA-21-71550

BEARING

SN: 825001-UP

1шт.

3

07020-00001

FITTING,GREASE

SN: 825001-UP

1шт.

|$9

3BA-21-71730

SUPPORT ASS'Y,(L.H.)

SN: 825001-UP

1шт.

|$10

3BA-21-71830

SUPPORT ASS'Y,(L.H.) (FOR FB09ML TO FB15ML)

SN: 825001-UP

1шт.

|$11

3BA-21-71730WK

SUPPORT ASS'Y,(L.H.)(COLD)

SN: 825001-UP

1шт.

4

3BA-21-71740SA

SUPPORT,(L.H.)

SN: 825001-UP

1шт.

|$13

3BA-21-71840SA

SUPPORT,(L.H.) (FOR FB09ML TO FB15ML)

SN: 825001-UP

1шт.

5

3BA-21-71550

BEARING

SN: 825001-UP

1шт.

6

07020-00001

FITTING,GREASE

SN: 825001-UP

1шт.

7

01010-81890

BOLT

SN: 825001-UP

2шт.

|$17

01010-71890

BOLT,(COLD)

SN: 825001-UP

2шт.

8

01011-81845

BOLT

SN: 825001-UP

2шт.

|$19

01011-71845

BOLT,(COLD)

SN: 825001-UP

2шт.

9

01643-31845

WASHER

SN: 825001-UP

4шт.

|$21

01643-11845

WASHER,(COLD)

SN: 825001-UP

4шт.

10

37A-9AE-5010

SHIM, 0.2MM

SN: 825001-UP

4шт.

|$23

37A-9AE-5020

SHIM, 0.5MM

SN: 825001-UP

4шт.

|$24

37A-9AE-5030

SHIM, 1.0MM

SN: 825001-UP

2шт.
