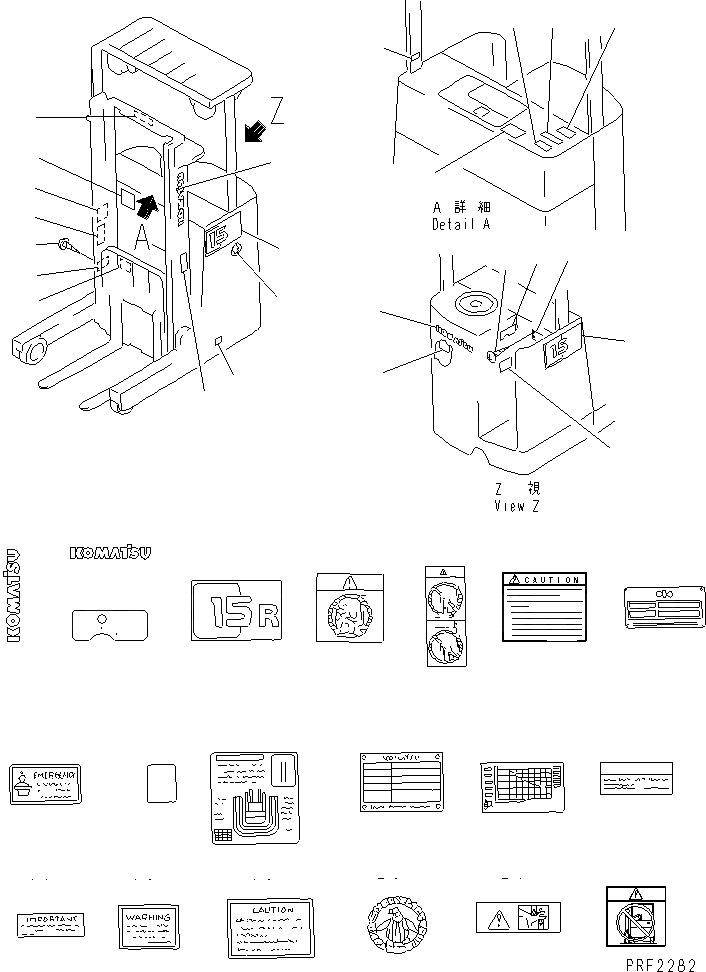

Запчасти Komatsu FB15RS ТАБЛИЧКИ(№7-) РАМА И OUTER ПАНЕЛЬ

1

3UA-96-11220

PLATE, MARK

SN: 70001-UP

2шт.

2

3RA-96-62151

PLATE, MARK

SN: 70001-UP

1шт.

3

3BA-96-41180

PLATE, NAME

SN: 70001-UP

1шт.

4

37R-4QM-4095

MARK,(FB09R)

SN: 70001-UP

2шт.

|$4

37R-4QM-4105

MARK,(FB10R)

SN: 70001-UP

2шт.

|$5

37R-4QM-4135

MARK,(FB13R)

SN: 70001-UP

2шт.

|$6

37R-4QM-4155

MARK,(FB15R)

SN: 70001-UP

2шт.

|$7

37R-4QM-4185

MARK,(FB18R)

SN: 70001-UP

2шт.

5

3RA-96-61150

PLATE, CAUTION

SN: 70001-UP

1шт.

6

3EB-96-25130

PLATE, CAUTION

SN: 70001-UP

2шт.

7

3RA-96-61295

PLATE, CAUTION

SN: 70001-UP

1шт.

8

0

PLATE, NAME

SN: 70001-UP

1шт.

9

04418-13060

SCREW

SN: 70001-UP

4шт.

10

3RA-96-21110

PLATE, CAUTION

SN: 70001-UP

1шт.

11

3RA-96-23710

PLATE, NAME

SN: 70001-UP

4шт.

12

3RA-96-61285

CHART, LUBRICATION

SN: 70001-UP

1шт.

13

0

PLATE

SN: 70001-UP

1шт.

14

01370-00508

SCREW

SN: 70001-UP

4шт.

15

0

CHART, CAPACITY,(1.0 TON)

SN: 70001-UP

1шт.

|$19

0

CHART, CAPACITY,(1.25 TON)

SN: 70001-UP

1шт.

|$20

0

CHART, CAPACITY,(1.5 TON)

SN: 70001-UP

1шт.

|$21

0

CHART, CAPACITY,(1.8 TON)

SN: 70001-UP

1шт.

|$22

0

CHART, CAPACITY,(1.5 TON) (FOR S-TYPE)

SN: 70001-UP

1шт.

|$23

0

CHART, CAPACITY,(1.8 TON) (FOR S-TYPE)

SN: 70001-UP

1шт.

16

09651-03000

PLATE, CAUTION

SN: 70001-UP

1шт.

17

34A-96-25120

PLATE, CAUTION

SN: 70001-UP

1шт.

18

34A-96-15110

PLATE, CAUTION

SN: 70001-UP

1шт.

19

34A-96-25130

PLATE, CAUTION

SN: 70001-UP

1шт.

20

330-937-1530

PLATE, MARK,(COLD) (OP)

SN: 70001-UP

2шт.

21

3EB-96-25120

PLATE, CAUTION

SN: 70001-UP

1шт.

22

3RA-96-61170

PLATE, CAUTION

SN: 70001-UP

1шт.
