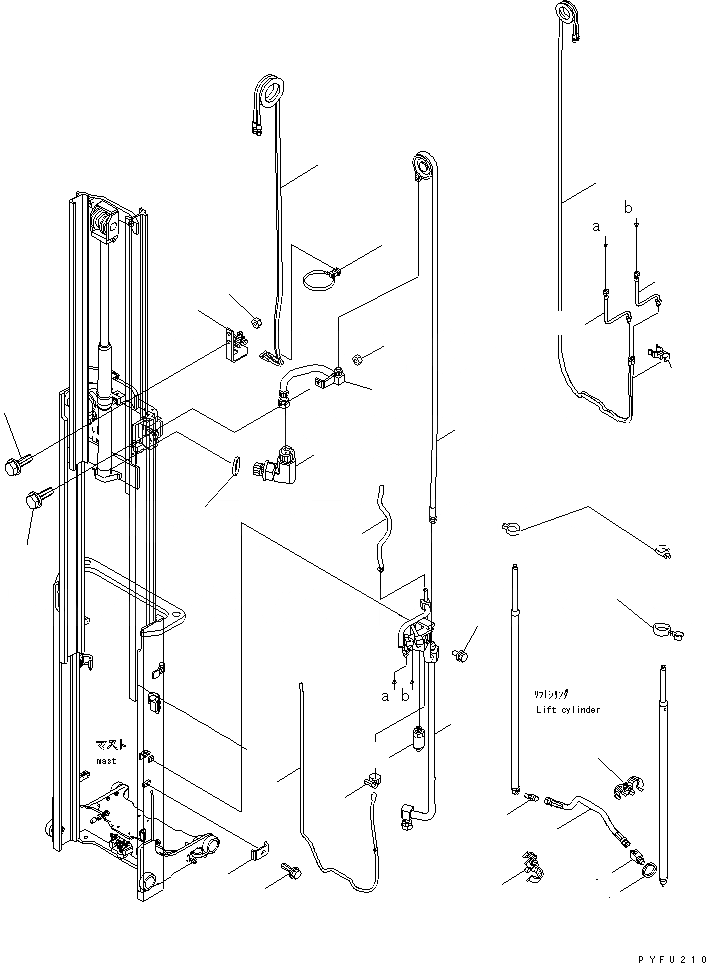

Запчасти Komatsu FB15RW-14 МАЧТА (TFV МАЧТА ТРУБЫ) (ДЛЯ .M - .M МАЧТА) (С ХОЛОДН.) (/) МАЧТА

1

3EA-71-37210

VALVE ASS'Y,DOWN CONTROL

SN: 140001-UP

1шт.

2

3EA-71-17130

VALVE ASS'Y,DOWN SAFETY

SN: 140001-UP

1шт.

3

3LA-71-18240

TEE

SN: 140001-UP

1шт.

4

07000-22014

O-RING

SN: 140001-UP

1шт.

5

3LA-T1-38160UE

PIPE

SN: 140001-UP

1шт.

|$55

3LA-T1-38160UT

PIPE,(COLD)

SN: 140001-UP

1шт.

6

01024-80825

BOLT

SN: 140001-UP

1шт.

7

01580-10806

NUT

SN: 140001-UP

1шт.

8

3LA-T1-38711UE

PIPE ASS'Y

SN: 140001-UP

1шт.

|$59

3LA-T1-38711UT

PIPE ASS'Y,(COLD)

SN: 140001-UP

1шт.

9

01024-81020

BOLT

SN: 140001-UP

1шт.

10

3LA-T1-18171

ELBOW

SN: 140001-UP

1шт.

11

07002-12034

O-RING

SN: 140001-UP

1шт.

12

3LA-T1-38180UE

PIPE

SN: 140001-UP

1шт.

|$64

3LA-T1-38180UT

PIPE,(COLD)

SN: 140001-UP

1шт.

13

3LA-T1-38190UE

PIPE

SN: 140001-UP

1шт.

|$66

3LA-T1-38190UT

PIPE,(COLD)

SN: 140001-UP

1шт.

14

46B-5MG-1010UE

CLAMP

SN: 140001-UP

1шт.

|$68

46B-5MG-1010UT

CLAMP,(COLD)

SN: 140001-UP

1шт.

15

01024-80825

BOLT

SN: 140001-UP

1шт.

16

3LA-T1-38470UE

BLOCK

SN: 140001-UP

1шт.

|$71

3LA-T1-38470UT

BLOCK,(COLD)

SN: 140001-UP

1шт.

17

01024-80825

BOLT

SN: 140001-UP

2шт.

18

01580-10806

NUT

SN: 140001-UP

2шт.

19

07627-003A4

HOSE

SN: 140001-UP

1шт.

20

37B-1PC-5180

CLAMP

SN: 140001-UP

2шт.

21

37B-1PC-5190

CLAMP

SN: 140001-UP

1шт.

22

07281-00197

CLAMP

SN: 140001-UP

4шт.

23

3LA-71-38910

CLAMP

SN: 140001-UP

2шт.

24

3LA-71-38920

CLAMP,(FOR 5.0M AND 5.5M MAST)

SN: 140001-UP

1шт.

|$84

3LA-71-38920

CLAMP,(FOR 6.0M AND 6.5M MAST)

SN: 140001-UP

2шт.

25

37R-TAX-8991

HOSE,(FOR 5.0M MAST)

SN: 140001-UP

1шт.

|$86

37R-TBX-8081

HOSE,(FOR 5.5M MAST)

SN: 140001-UP

1шт.

|$87

37R-TBX-8161

HOSE,(FOR 6.0M MAST)

SN: 140001-UP

1шт.

|$88

37R-TBX-8241

HOSE,(FOR 6.5M MAST)

SN: 140001-UP

1шт.

26

37R-TAX-8471

HOSE,(FOR 5.0M MAST)

SN: 140001-UP

1шт.

|$90

37R-TAX-8511

HOSE,(FOR 5.5M MAST)

SN: 140001-UP

1шт.

|$91

37R-TAX-8551

HOSE,(FOR 6.0M MAST)

SN: 140001-UP

1шт.

|$92

37R-TAX-8591

HOSE,(FOR 6.5M MAST)

SN: 140001-UP

1шт.

27

37R-TAX-6410

HOSE,(FOR 5.0M MAST)

SN: 140001-UP

1шт.

|$94

37R-TAX-6490

HOSE,(FOR 5.5M MAST)

SN: 140001-UP

1шт.

|$95

37R-TAX-6570

HOSE,(FOR 6.0M MAST)

SN: 140001-UP

1шт.

|$96

37R-TAX-6650

HOSE,(FOR 6.5M MAST)

SN: 140001-UP

1шт.

28

07260-20971

HOSE,(FOR 5.0M MAST)

SN: 140001-UP

1шт.

|$98

07260-20990

HOSE,(FOR 5.5M MAST)

SN: 140001-UP

1шт.

|$99

07261-20911

HOSE,(FOR 6.0M MAST)

SN: 140001-UP

1шт.

|$100

07261-20913

HOSE,(FOR 6.5M MAST)

SN: 140001-UP

1шт.

29

37A-502-6310

HOSE,(FOR 5.0M MAST)

SN: 140001-UP

1шт.

|$102

37A-502-6330

HOSE,(FOR 5.5M MAST)

SN: 140001-UP

1шт.

|$103

37A-502-6350

HOSE,(FOR 6.0M MAST)

SN: 140001-UP

1шт.

|$104

37A-502-6370

HOSE,(FOR 6.5M MAST)

SN: 140001-UP

1шт.

30

3EB-71-38150

CLAMP

SN: 140001-UP

7шт.

31

37B-1PC-5180

CLAMP

SN: 140001-UP

2шт.
