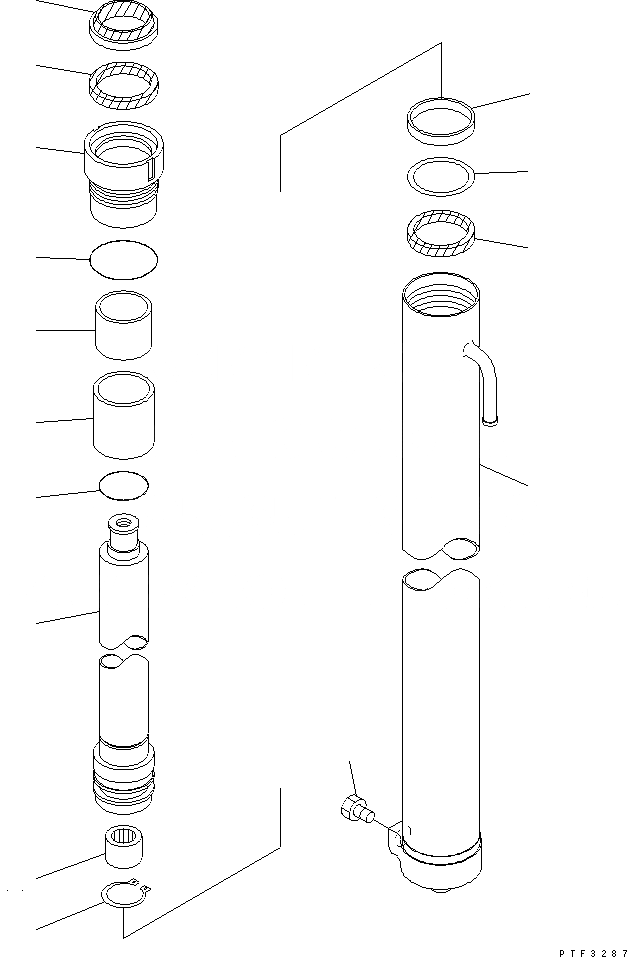

Запчасти Komatsu FB20 ГИДРОЦИЛИНДР ПОДЪЕМА (ДЛЯ .M - .M МАЧТА) МАЧТА
№
Артикул
Название
Примечание
Количество
|$10
37B-7QT-3300YD
LIFT CYLINDER ASS'Y,(FOR 3.0M MAST)
SN: 810001-UP
1шт.
|$11
37B-7QT-3330YD
LIFT CYLINDER ASS'Y,(FOR 3.3M MAST)
SN: 810001-UP
2шт.
|$12
37B-7QT-3350YD
LIFT CYLINDER ASS'Y,(FOR 3.5M MAST)
SN: 810001-UP
2шт.
|$13
37B-7QT-3370YD
LIFT CYLINDER ASS'Y,(FOR 3.7M MAST)
SN: 810001-UP
2шт.
|$14
37B-7QT-3400YD
LIFT CYLINDER ASS'Y,(FOR 4.0M MAST)
SN: 810001-UP
2шт.
|$15
37B-7QT-3430YD
LIFT CYLINDER ASS'Y,(FOR 4.3M MAST)
SN: 810001-UP
2шт.
|$16
37B-7QT-3450YD
LIFT CYLINDER ASS'Y,(FOR 4.5M MAST)
SN: 810001-UP
2шт.
|$17
37B-7QT-3470YD
LIFT CYLINDER ASS'Y,(FOR 4.7M MAST)
SN: 810001-UP
2шт.
|$18
37B-7QT-3500YD
LIFT CYLINDER ASS'Y,(FOR 5.0M MAST)
SN: 810001-UP
2шт.
|$19
37B-7RT-3550YD
LIFT CYLINDER ASS'Y,(FOR 5.5M MAST)
SN: 810001-UP
2шт.
1
KBB6527-16001
CYLINDER TUBE ASS'Y,(FOR 3.0M MAST)
SN: 810001-UP
1шт.
|$21
KBB6527-16301
CYLINDER TUBE ASS'Y,(FOR 3.3M MAST)
SN: 810001-UP
1шт.
|$22
KBB6527-16501
CYLINDER TUBE ASS'Y,(FOR 3.5M MAST)
SN: 810001-UP
1шт.
|$23
KBB6527-16701
CYLINDER TUBE ASS'Y,(FOR 3.7M MAST)
SN: 810001-UP
1шт.
|$24
KBB6527-17001
CYLINDER TUBE ASS'Y,(FOR 4.0M MAST)
SN: 810001-UP
1шт.
|$25
KBB6527-17301
CYLINDER TUBE ASS'Y,(FOR 4.3M MAST)
SN: 810001-UP
1шт.
|$26
KBB6527-17501
CYLINDER TUBE ASS'Y,(FOR 4.5M MAST)
SN: 810001-UP
1шт.
|$27
KBB6527-17701
CYLINDER TUBE ASS'Y,(FOR 4.7M MAST)
SN: 810001-UP
1шт.
|$28
KBB6527-18001
CYLINDER TUBE ASS'Y,(FOR 5.0M MAST)
SN: 810001-UP
1шт.
|$29
KBB6527-26501
CYLINDER TUBE ASS'Y,(FOR 5.5M MAST)
SN: 810001-UP
1шт.
2
KBB6527-16002
PISTON ROD ASS'Y,(FOR 3.0M MAST)
SN: 810001-UP
1шт.
|$31
KBB6527-16302
PISTON ROD ASS'Y,(FOR 3.3M MAST)
SN: 810001-UP
1шт.
|$32
KBB6527-16502
PISTON ROD ASS'Y,(FOR 3.5M MAST)
SN: 810001-UP
1шт.
|$33
KBB6527-16702
PISTON ROD ASS'Y,(FOR 3.7M MAST)
SN: 810001-UP
1шт.
|$34
KBB6527-17002
PISTON ROD ASS'Y,(FOR 4.0M MAST)
SN: 810001-UP
1шт.
|$35
KBB6527-17302
PISTON ROD ASS'Y,(FOR 4.3M MAST)
SN: 810001-UP
1шт.
|$36
KBB6527-17502
PISTON ROD ASS'Y,(FOR 4.5M MAST)
SN: 810001-UP
1шт.
|$37
KBB6527-17702
PISTON ROD ASS'Y,(FOR 4.7M MAST)
SN: 810001-UP
1шт.
|$38
KBB6527-18002
PISTON ROD ASS'Y,(FOR 5.0M MAST)
SN: 810001-UP
1шт.
|$39
KBB6527-26502
PISTON ROD ASS'Y,(FOR 5.5M MAST)
SN: 810001-UP
1шт.
3
KB30121-50102
HEAD,(FOR 3.0M TO 5.0M MAST)
SN: 810001-UP
1шт.
|$41
KB30121-55043
HEAD,(FOR 5.5M MAST)
SN: 810001-UP
1шт.
4
KB30131-40017
BUSHING,(FOR 3.0M TO 5.0M MAST)
SN: 810001-UP
1шт.
|$43
KB30131-45017
BUSHING,(FOR 5.5M MAST)
SN: 810001-UP
1шт.
5
KB30961-04012
U-RING,(FOR 3.0M TO 5.0M MAST) (KIT A)
SN: 810001-UP
1шт.
|$45
KB30961-04512
U-RING,(FOR 5.5M MAST) (KIT B)
SN: 810001-UP
1шт.
6
KB30191-40025
RING,WIPER (FOR 3.0M TO 5.0M MAST) (KIT A)
SN: 810001-UP
1шт.
|$47
KB30191-45025
RING,WIPER (FOR 5.5M MAST) (KIT B)
SN: 810001-UP
1шт.
7
KB30161-91774
O-RING,(FOR 3.0M TO 5.0M MAST) (KIT A)
SN: 810001-UP
1шт.
|$49
KB30161-91775
O-RING,(FOR 5.5M MAST) (KIT B)
SN: 810001-UP
1шт.
8
KB30161-50046
U-RING,(FOR 3.0M TO 5.0M MAST) (KIT A)
SN: 810001-UP
1шт.
|$51
KB30161-55046
U-RING,(FOR 5.5M MAST) (KIT B)
SN: 810001-UP
1шт.
9
KB30461-50039
RING,BACK UP(FOR 3.0M TO 5.0M MAST) (KIT A)
SN: 810001-UP
1шт.
|$53
KB30461-55039
RING,BACK UP(FOR 5.5M MAST) (KIT B)
SN: 810001-UP
1шт.
10
KB30131-50018
BUSHING,(FOR 3.0M TO 5.0M MAST)
SN: 810001-UP
1шт.
|$55
KB30131-55018
BUSHING,(FOR 5.5M MAST)
SN: 810001-UP
1шт.
11
KB30551-91003
BEARING,(FOR 3.0M TO 5.0M MAST)
SN: 810001-UP
1шт.
|$57
KB30551-91001
RING,(FOR 5.5M MAST)
SN: 810001-UP
1шт.
12
KB30141-91049
RING,(FOR 3.0M TO 5.0M MAST)
SN: 810001-UP
1шт.
|$59
KB30141-91048
SNAP RING,(FOR 5.5M MAST)
SN: 810001-UP
1шт.
13
34A-63-17170
SPACER,(FOR 4.0M TO 4.5M MAST)
SN: 810001-UP
1шт.
|$61
34A-63-17190
SPACER,(FOR 4.7M TO 5.0M MAST)
SN: 810001-UP
1шт.
|$62
34B-63-16390
SPACER,(FOR 5.5M MAST)
SN: 810001-UP
1шт.
14
KB95123-03500
O-RING,(FOR 3.0M TO 5.0M MAST)
SN: 810001-UP
1шт.
15
KB97124-01111
PLUG,(FOR 5.5M MAST)
SN: 810001-UP
1шт.
|$$57
SERVICE KIT
-1шт.
Выбрано товаров: 59
