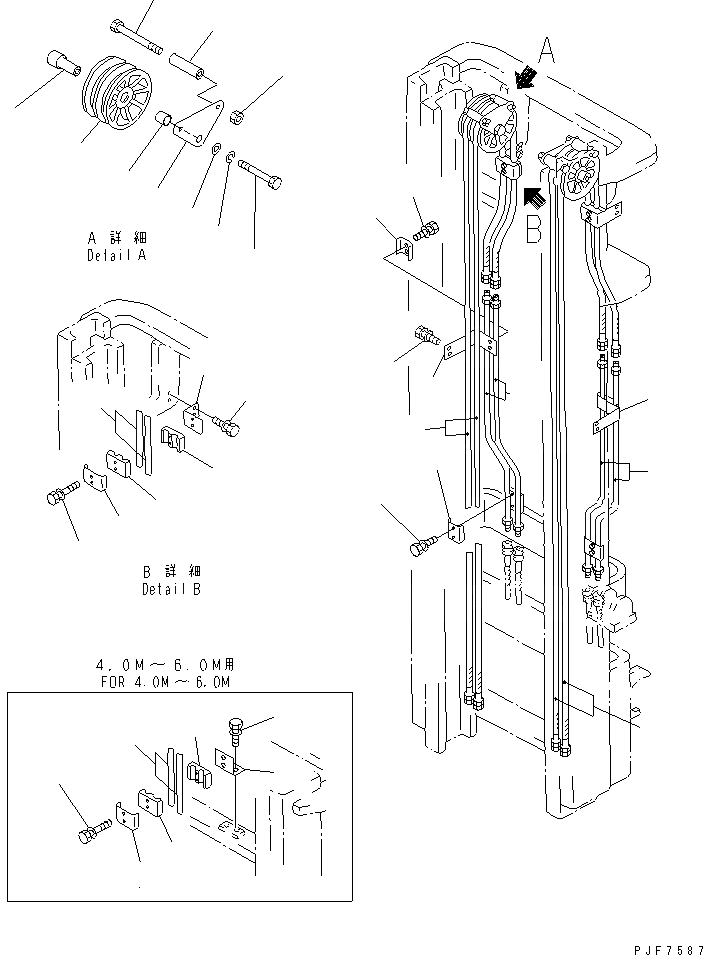

Запчасти Komatsu FB20 ДЛЯ 4-Х СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН FV МАЧТА (ДЛЯ .M - .M МАЧТА) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

45B-1MA-5170

CLAMP

SN: 814001-UP

2шт.

2

01024-80830

BOLT

SN: 814001-UP

4шт.

3

45B-2MA-3180UE

BRACKET

SN: 814001-UP

2шт.

|$24

45B-2MA-3180UT

BRACKET,(COLD)

SN: 814001-UP

2шт.

4

01024-80820

BOLT

SN: 814001-UP

4шт.

5

45B-1MA-5180

CLAMP

SN: 814001-UP

2шт.

6

01024-80830

BOLT

SN: 814001-UP

4шт.

7

45B-1MA-5130

CLAMP

SN: 814001-UP

2шт.

8

304-868-2250

RUBBER

SN: 814001-UP

4шт.

9

01024-80840

BOLT

SN: 814001-UP

4шт.

10

45C-2MA-1200

PULLEY

SN: 814001-UP

2шт.

11

45B-1MA-2112

SHAFT

SN: 814001-UP

2шт.

12

45B-1MA-2140

COLLAR

SN: 814001-UP

2шт.

13

45B-1MA-2150

PLATE

SN: 814001-UP

2шт.

14

01011-81205

BOLT

SN: 814001-UP

2шт.

15

01602-21236

WASHER,SPRING

SN: 814001-UP

2шт.

16

01643-31232

WASHER

SN: 814001-UP

2шт.

17

37A-ZDP-1100SG

PIPE

SN: 814001-UP

4шт.

18

01010-81085

BOLT

SN: 814001-UP

4шт.

19

01580-11008

NUT

SN: 814001-UP

4шт.

20

07123-00323

HOSE,(FOR 3.0M MAST)

SN: 814001-UP

4шт.

|$44

07123-00325

HOSE,(FOR 3.3M MAST)

SN: 814001-UP

4шт.

|$45

07123-00327

HOSE,(FOR 3.5M AND 3.7M MAST)

SN: 814001-UP

4шт.

|$46

07123-00330

HOSE,(FOR 4.0M MAST)

SN: 814001-UP

4шт.

|$47

07123-00333

HOSE,(FOR 4.3M MAST)

SN: 814001-UP

4шт.

|$48

07123-00332

HOSE,(FOR 4.5M MAST)

SN: 814001-UP

4шт.

|$49

07123-00338

HOSE,(FOR 4.7M AND 5.0M MAST)

SN: 814001-UP

4шт.

|$50

07123-00348

HOSE,(FOR 5.5M MAST)

SN: 814001-UP

4шт.

21

37B-ZSC-3010UE

PIPE,(FOR 3.0M MAST)

SN: 814001-UP

2шт.

|$52

37B-ZSC-3020UE

PIPE,(FOR 3.3M AND 3.5M MAST)

SN: 814001-UP

2шт.

|$53

37B-ZSC-3030UE

PIPE,(FOR 3.7M MAST)

SN: 814001-UP

2шт.

|$54

37B-ZSC-3040UE

PIPE,(FOR 4.0M/4.3M/4.7M/5.5M MAST)

SN: 814001-UP

2шт.

|$55

37B-ZSC-3050UE

PIPE,(FOR 4.5M AND 5.0M MAST)

SN: 814001-UP

2шт.

|$56

37B-ZSC-3010UT

PIPE,(FOR 3.0M MAST) (COLD)

SN: 814001-UP

2шт.

|$57

37B-ZSC-3020UT

PIPE,(FOR 3.3M AND 3.5M MAST)(COLD)

SN: 814001-UP

2шт.

|$58

37B-ZSC-3030UT

PIPE,(FOR 3.7M MAST) (COLD)

SN: 814001-UP

2шт.

|$59

37B-ZSC-3040UT

PIPE,(FOR4.0M/4.3M/4.7M/5.5M)(COLD)

SN: 814001-UP

2шт.

|$60

37B-ZSC-3050UT

PIPE,(FOR 4.5M AND 5.0M MAST)(COLD)

SN: 814001-UP

2шт.

22

37B-ZSD-3010UE

PIPE,(FOR 3.0M MAST)

SN: 814001-UP

2шт.

|$62

37B-ZSD-3020UE

PIPE,(FOR 3.3M AND 3.5M MAST)

SN: 814001-UP

2шт.

|$63

37B-ZSD-3030UE

PIPE,(FOR 3.7M MAST)

SN: 814001-UP

2шт.

|$64

37B-ZSD-3040UE

PIPE,(FOR 4.0M/4.3M/4.7M/5.5M MAST)

SN: 814001-UP

2шт.

|$65

37B-ZSD-3050UE

PIPE,(FOR 4.5M AND 5.0M MAST)

SN: 814001-UP

2шт.

|$66

37B-ZSD-3010UT

PIPE,(FOR 3.0M MAST) (COLD)

SN: 814001-UP

2шт.

|$67

37B-ZSD-3020UT

PIPE,(FOR 3.3M AND 3.5M MAST)(COLD)

SN: 814001-UP

2шт.

|$68

37B-ZSD-3030UT

PIPE,(FOR 3.7M MAST) (COLD)

SN: 814001-UP

2шт.

|$69

37B-ZSD-3040UT

PIPE,(FOR4.0M/4.3M/4.7M/5.5M)(COLD)

SN: 814001-UP

2шт.

|$70

37B-ZSD-3050UT

PIPE,(FOR 4.5M AND 5.0M MAST)(COLD)

SN: 814001-UP

2шт.

23

45B-2MA-3170UE

BRACKET,(FOR 3.0M TO 3.7M MAST)

SN: 814001-UP

2шт.

|$72

45B-2MA-3150UE

BRACKET,(FOR 4.0M TO 5.5M MAST)

SN: 814001-UP

2шт.

|$73

45B-2MA-3170UT

BRACKET,(FOR 3.0M TO 3.7M MAST) (COLD)

SN: 814001-UP

2шт.

|$74

45B-2MA-3150UT

BRACKET,(FOR 4.0M TO 5.5M MAST) (COLD)

SN: 814001-UP

2шт.

24

01024-80816

BOLT,(FOR 3.0M TO 3.7M MAST)

SN: 814001-UP

4шт.

|$76

01024-80820

BOLT,(FOR 4.0M TO 5.5M MAST)

SN: 814001-UP

4шт.
