Запчасти Komatsu FG20-25-14 МАЧТА (/) (МАЧТА И ГИДРОЦИЛИНДР ПОДЪЕМА) МАЧТА И СТРЕЛА

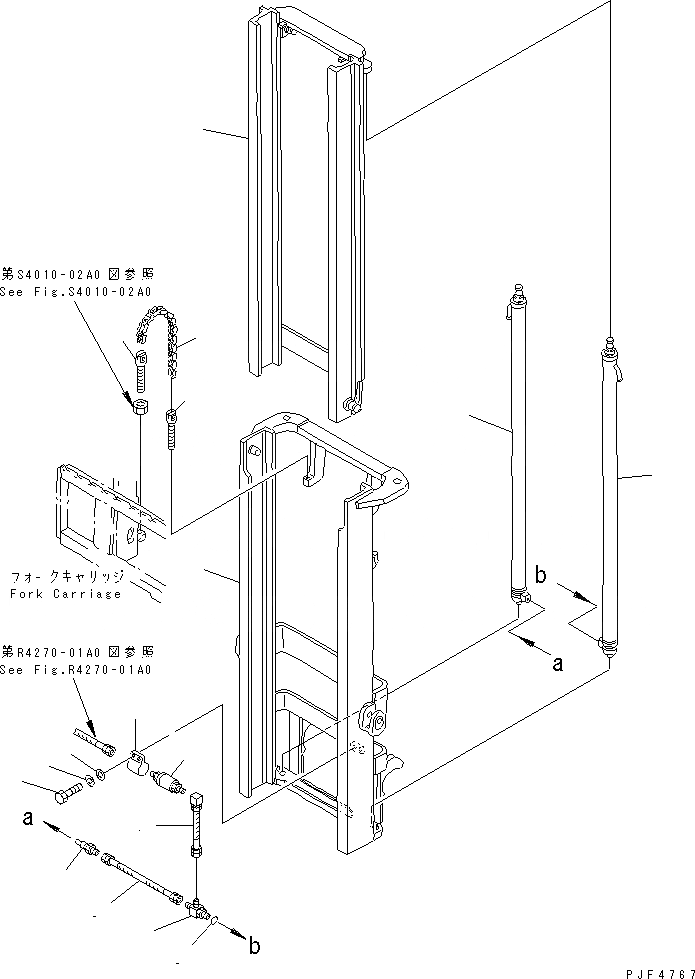

Схема запчастей Komatsu FG20-25-14 - МАЧТА (/) (МАЧТА И ГИДРОЦИЛИНДР ПОДЪЕМА) МАЧТА И СТРЕЛА
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15

Артикул

Название

Примечание

Количество

1

37B-7AB-3302

MAST,OUTER, (FOR 3.0M MAST)

SN: 550001-UP

1шт.

|$34

37B-7AB-3332

MAST,OUTER, (FOR 3.3M MAST)

SN: 550001-UP

1шт.

|$35

37B-7AB-3352

MAST,OUTER, (FOR 3.5M MAST)

SN: 550001-UP

1шт.

|$36

37B-7AB-3372

MAST,OUTER, (FOR 3.7M MAST)

SN: 550001-UP

1шт.

|$37

37B-7AB-3402

MAST,OUTER, (FOR 4.0M MAST)

SN: 550001-UP

1шт.

|$38

37B-7AB-3432

MAST,OUTER, (FOR 4.3M MAST)

SN: 550001-UP

1шт.

|$39

37B-7AB-3452

MAST,OUTER, (FOR 4.5M MAST)

SN: 550001-UP

1шт.

|$40

37B-7AB-3472

MAST,OUTER, (FOR 4.7M MAST)

SN: 550001-UP

1шт.

|$41

37B-7AB-3502

MAST,OUTER, (FOR 5.0M MAST)

SN: 550001-UP

1шт.

|$42

37B-7AB-3552

MAST,OUTER, (FOR 5.5M MAST)

SN: 550001-UP

1шт.

|$43

37B-7AB-3602

MAST,OUTER, (FOR 6.0M MAST)

SN: 550001-UP

1шт.

2

37B-7AD-3300

MAST,INNER, (FOR 3.0M MAST)

SN: 550001-UP

1шт.

|$45

37B-7AD-3330

MAST,INNER, (FOR 3.3M MAST)

SN: 550001-UP

1шт.

|$46

37B-7AD-3350

MAST,INNER, (FOR 3.5M MAST)

SN: 550001-UP

1шт.

|$47

37B-7AD-3370

MAST,INNER, (FOR 3.7M MAST)

SN: 550001-UP

1шт.

|$48

37B-7AD-3400

MAST,INNER, (FOR 4.0M MAST)

SN: 550001-UP

1шт.

|$49

37B-7AD-3430

MAST,INNER, (FOR 4.3M MAST)

SN: 550001-UP

1шт.

|$50

37B-7AD-3450

MAST,INNER, (FOR 4.5M MAST)

SN: 550001-UP

1шт.

|$51

37B-7AD-3470

MAST,INNER, (FOR 4.7M MAST)

SN: 550001-UP

1шт.

|$52

37B-7AD-3500

MAST,INNER, (FOR 5.0M MAST)

SN: 550001-UP

1шт.

|$53

37B-7AD-3550

MAST,INNER, (FOR 5.5M MAST)

SN: 550001-UP

1шт.

|$54

37B-7AD-3600

MAST,INNER, (FOR 6.0M MAST)

SN: 550001-UP

1шт.

|$55

37B-9CA-2470

CHAIN ASS'Y,(FOR 3.0M MAST)

SN: 550001-UP

2шт.

|$56

37B-9CA-2510

CHAIN ASS'Y,(FOR 3.3M MAST)

SN: 550001-UP

2шт.

|$57

37B-9CA-2530

CHAIN ASS'Y,(FOR 3.5M MAST)

SN: 550001-UP

2шт.

|$58

37B-9CA-2560

CHAIN ASS'Y,(FOR 3.7M MAST)

SN: 550001-UP

2шт.

|$59

37B-9CA-2610

CHAIN ASS'Y,(FOR 4.0M MAST)

SN: 550001-UP

2шт.

|$60

37B-9CA-2650

CHAIN ASS'Y,(FOR 4.3M MAST)

SN: 550001-UP

2шт.

|$61

37B-9CA-2680

CHAIN ASS'Y,(FOR 4.5M MAST)

SN: 550001-UP

2шт.

|$62

37B-9CA-2720

CHAIN ASS'Y,(FOR 4.7M MAST)

SN: 550001-UP

2шт.

|$63

37B-9CA-2760

CHAIN ASS'Y,(FOR 5.0M MAST)

SN: 550001-UP

2шт.

|$64

37B-9CA-2860

CHAIN ASS'Y,(FOR 5.5M MAST)

SN: 550001-UP

2шт.

|$65

37B-9CA-2920

CHAIN ASS'Y,(FOR 6.0M MAST)

SN: 550001-UP

2шт.

3

37B-737-1290

CHAIN,(FOR 3.0M MAST)

SN: 550001-UP

1шт.

|$67

37B-737-1320

CHAIN,(FOR 3.3M MAST)

SN: 550001-UP

1шт.

|$68

37B-737-1340

CHAIN,(FOR 3.5M MAST)

SN: 550001-UP

1шт.

|$69

37B-737-1360

CHAIN,(FOR 3.7M MAST)

SN: 550001-UP

1шт.

|$70

37B-737-1390

CHAIN,(FOR 4.0M MAST)

SN: 550001-UP

1шт.

|$71

37B-737-1420

CHAIN,(FOR 4.3M MAST)

SN: 550001-UP

1шт.

|$72

37B-737-1440

CHAIN,(FOR 4.5M MAST)

SN: 550001-UP

1шт.

|$73

37B-737-1460

CHAIN,(FOR 4.7M MAST)

SN: 550001-UP

1шт.

|$74

37B-737-1490

CHAIN,(FOR 5.0M MAST)

SN: 550001-UP

1шт.

|$75

37B-787-1250

CHAIN,(FOR 5.5M MAST)

SN: 550001-UP

1шт.

|$76

37B-787-1270

CHAIN,(FOR 6.0M MAST)

SN: 550001-UP

1шт.

4

3EB-71-21551

STOPPER

SN: 550001-UP

2шт.

5

37B-7QT-3301YD

LIFT CYLINDER ASS'Y,(FOR 3.0M MAST)

SN: 550001-UP

2шт.

|$79

37B-7QT-3331YD

LIFT CYLINDER ASS'Y,(FOR 3.3M MAST)

SN: 550001-UP

2шт.

|$80

37B-7QT-3351YD

LIFT CYLINDER ASS'Y,(FOR 3.5M MAST)

SN: 550001-UP

2шт.

|$81

37B-7QT-3371YD

LIFT CYLINDER ASS'Y,(FOR 3.7M MAST)

SN: 550001-UP

2шт.

|$82

37B-7QT-3401YD

LIFT CYLINDER ASS'Y,(FOR 4.0M MAST)

SN: 550001-UP

2шт.

|$83

37B-7QT-3431YD

LIFT CYLINDER ASS'Y,(FOR 4.3M MAST)

SN: 550001-UP

2шт.

|$84

37B-7QT-3451YD

LIFT CYLINDER ASS'Y,(FOR 4.5M MAST)

SN: 550001-UP

2шт.

|$85

37B-7QT-3471YD

LIFT CYLINDER ASS'Y,(FOR 4.7M MAST)

SN: 550001-UP

2шт.

|$86

37B-7QT-3501YD

LIFT CYLINDER ASS'Y,(FOR 5.0M MAST)

SN: 550001-UP

2шт.

|$87

37B-7RT-3551YD

LIFT CYLINDER ASS'Y,(FOR 5.5M MAST)

SN: 550001-UP

2шт.

|$88

37B-7RT-3601YD

LIFT CYLINDER ASS'Y,(FOR 6.0M MAST)

SN: 550001-UP

2шт.

6

3EB-71-27120

TEE

SN: 550001-UP

1шт.

7

3EB-71-27141

HOSE

SN: 550001-UP

1шт.

8

3EB-71-27980

HOSE

SN: 550001-UP

1шт.

9

07000-12018

O-RING

SN: 550001-UP

1шт.

10

3EB-71-27400

VALVE ASS'Y,SAFETY

SN: 550001-UP

1шт.

11

3EB-71-27300

VALVE ASS'Y,(FOR 3.0M TO 5.0M MAST)

SN: 550001-UP

1шт.

|$95

3EB-72-27300

VALVE ASS'Y,(FOR 5.5M AND 6.0M MAST)

SN: 550001-UP

1шт.

12

01010-81025

BOLT

SN: 550001-UP

2шт.

13

01602-21030

WASHER,SPRING

SN: 550001-UP

2шт.

14

01642-21016

WASHER

SN: 550001-UP

2шт.

15

3EB-71-27130

CLAMP

SN: 550001-UP

1шт.

Выбрано товаров: 67
