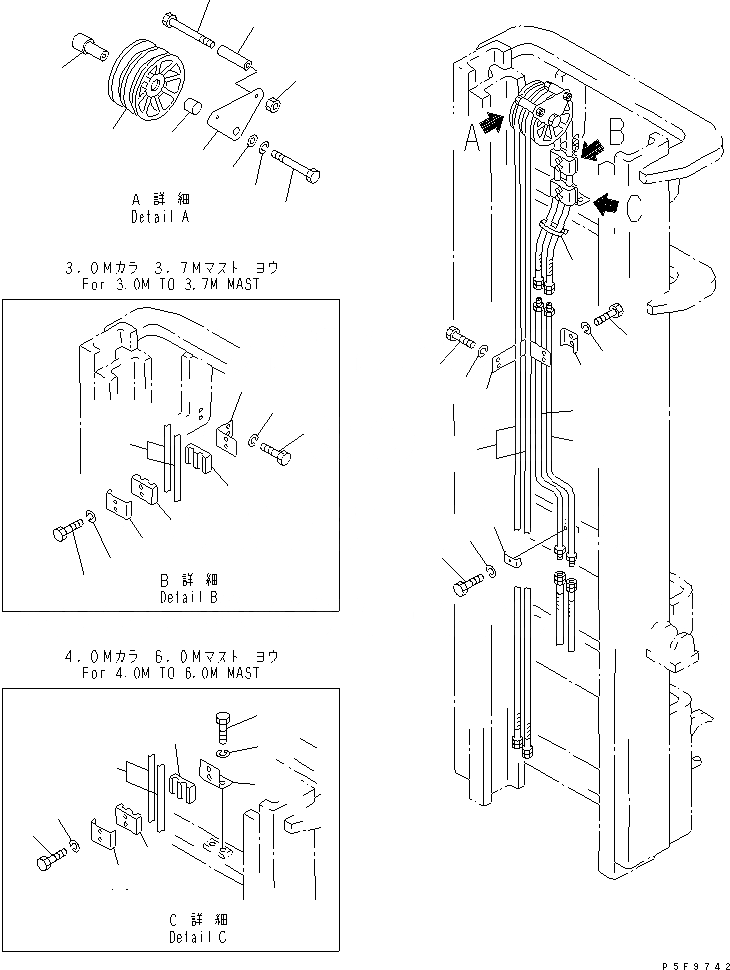

Запчасти Komatsu FG45-10 3-Х СЕКЦИОНН. КОНТРОЛЬН. КЛАПАН FV МАЧТА ТРУБЫ (ДЛЯ .M - .M МАЧТА) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

45A-271-1370

CLAMP

SN: 133001-UP

1шт.

2

01010-80830

BOLT

SN: 133001-UP

1шт.

3

01602-20825

WASHER,SPRING

SN: 133001-UP

1шт.

4

45C-1MA-5180SG

BRACKET

SN: 133001-UP

1шт.

5

01010-80820

BOLT

SN: 133001-UP

2шт.

6

01602-20825

WASHER,SPRING

SN: 133001-UP

2шт.

7

45B-5MA-2040SG

CLIP

SN: 133001-UP

1шт.

8

01010-80830

BOLT

SN: 133001-UP

2шт.

9

01602-20825

WASHER,SPRING

SN: 133001-UP

2шт.

10

304-868-2240SG

CLAMP

SN: 133001-UP

1шт.

11

304-868-2250

RUBBER

SN: 133001-UP

2шт.

12

01010-80840

BOLT

SN: 133001-UP

2шт.

13

01602-20825

WASHER,SPRING

SN: 133001-UP

2шт.

14

45C-2MA-1200

PULLEY

SN: 133001-UP

1шт.

15

45B-1MA-2112

SHAFT

SN: 133001-UP

1шт.

16

45B-1MA-2140

COLLAR

SN: 133001-UP

1шт.

17

45C-1MA-4140

PLATE

SN: 133001-UP

1шт.

18

01011-81205

BOLT

SN: 133001-UP

1шт.

19

01602-21236

WASHER,SPRING

SN: 133001-UP

1шт.

20

01643-31232

WASHER

SN: 133001-UP

1шт.

21

37A-ZDP-1100SG

PIPE

SN: 133001-UP

3шт.

22

01010-81085

BOLT

SN: 133001-UP

3шт.

23

01580-11008

NUT

SN: 133001-UP

3шт.

24

07123-00325

HOSE,(FOR 3.0M MAST)

SN: 133001-UP

2шт.

|$48

07123-00328

HOSE,(FOR 3.3M MAST)

SN: 133001-UP

2шт.

|$49

07123-00330

HOSE,(FOR 3.5M MAST)

SN: 133001-UP

2шт.

|$50

07123-00329

HOSE,(FOR 3.7M MAST)

SN: 133001-UP

2шт.

|$51

07123-00333

HOSE,(FOR 4.0M AND 4.3M MAST)

SN: 133001-UP

2шт.

|$52

07123-00335

HOSE,(FOR 4.5M MAST)

SN: 133001-UP

2шт.

|$53

07123-00340

HOSE,(FOR 4.7M MAST)

SN: 133001-UP

2шт.

|$54

07123-00343

HOSE,(FOR 5.0M MAST)

SN: 133001-UP

2шт.

|$55

07123-00348

HOSE,(FOR 5.5M MAST)

SN: 133001-UP

2шт.

|$56

07123-00353

HOSE,(FOR 6.0M MAST)

SN: 133001-UP

2шт.

25

37B-1AE-6030

BAND

SN: 133001-UP

1шт.

26

45B-2MA-3170SG

BRACKET,(FOR 3.0M TO 3.7M MAST)

SN: 133001-UP

1шт.

|$59

45B-2MA-3150SG

BRACKET,(FOR 4.0M TO 6.0M MAST)

SN: 133001-UP

1шт.

27

01010-80816

BOLT,(FOR 3.0M TO 3.7M MAST)

SN: 133001-UP

2шт.

|$61

01010-80820

BOLT,(FOR 4.0M TO 6.0M MAST)

SN: 133001-UP

2шт.

28

01602-20825

WASHER,SPRING

SN: 133001-UP

2шт.

29

37C-ZJA-3030SG

PIPE,(FOR 3.0M TO 3.5M MAST)

SN: 133001-UP

1шт.

|$64

37C-ZJA-3050SG

PIPE,(FOR 3.7M AND 4.0M MAST)

SN: 133001-UP

1шт.

|$65

37C-ZJA-3070SG

PIPE,(FOR 4.3M AND 4.5M MAST)

SN: 133001-UP

1шт.

|$66

37C-ZJA-3050SG

PIPE,(FOR 4.7M TO 6.0M MAST)

SN: 133001-UP

1шт.

30

37C-ZJA-3040SG

PIPE,(FOR 3.0M TO 3.5M MAST)

SN: 133001-UP

1шт.

|$68

37C-ZJA-3060SG

PIPE,(FOR 3.7M AND 4.0M MAST)

SN: 133001-UP

1шт.

|$69

37C-ZJA-3080SG

PIPE,(FOR 4.3M AND 4.5M MAST)

SN: 133001-UP

1шт.

|$70

37C-ZJA-3060SG

PIPE,(FOR 4.7M TO 6.0M MAST)

SN: 133001-UP

1шт.
