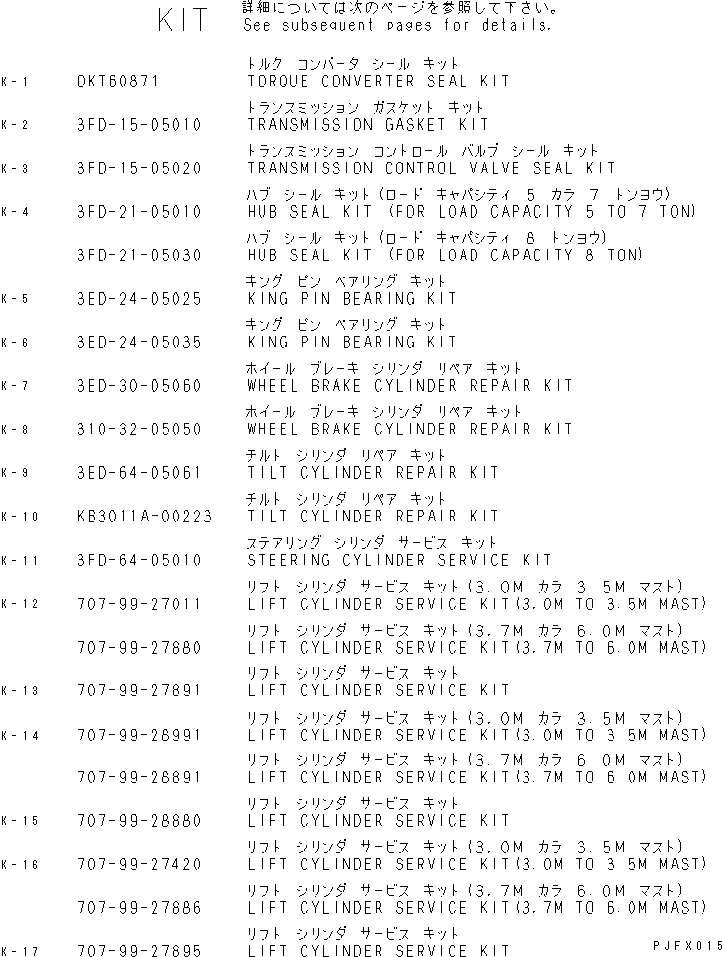

Запчасти Komatsu FD80-7-US OVERHALL КОМПЛЕКТ OVERHALL КОМПЛЕКТ

1

OKT60871

SEAL KIT,TORQUE CONVERTER

SN: 40001-UP

1шт.

|$1

OKC94618

WASHER

SN: 40001-UP

1шт.

|$2

OKC09048

SEAL

SN: 40001-UP

1шт.

|$3

OKC09068

RING

SN: 40001-UP

1шт.

|$4

OKC90450

WASHER

SN: 40001-UP

1шт.

|$5

OKCB6134

O-RING

SN: 40001-UP

1шт.

|$6

OKR62274

O-RING

SN: 40001-UP

1шт.

|$7

OKK60268

WASHER

SN: 40001-UP

2шт.

|$8

OKCG1450A

O-RING

SN: 40001-UP

1шт.

|$9

OK688368A

PACKING

SN: 40001-UP

1шт.

|$10

OKR62158

SEAL

SN: 40001-UP

1шт.

|$11

OKR61869

O-RING

SN: 40001-UP

1шт.

|$12

OKCG0350N

O-RING

SN: 40001-UP

1шт.

|$13

OKCG0300N

O-RING

SN: 40001-UP

1шт.

|$14

OKC94624

WASHER

SN: 40001-UP

1шт.

|$15

OKR62275

O-RING

SN: 40001-UP

1шт.

2

3FD-15-05010

GASKET KIT,TRANSMISSION

SN: 40001-UP

1шт.

|$17

3FD-15-21150

GASKET

SN: 40001-UP

1шт.

|$18

34B-41-12920

GASKET

SN: 40001-UP

1шт.

|$19

3EA-15-11280

GASKET

SN: 40001-UP

1шт.

|$20

07000-03038

O-RING

SN: 40001-UP

1шт.

|$21

07012-00060

SEAL

SN: 40001-UP

1шт.

|$22

3EB-16-21240

SEAL

SN: 40001-UP

6шт.

|$23

3FD-15-21290

GASKET

SN: 40001-UP

2шт.

|$24

3FD-15-21120

GASKET

SN: 40001-UP

1шт.

|$25

3FD-15-21520

GASKET

SN: 40001-UP

1шт.

|$26

3EC-16-38220

GASKET

SN: 40001-UP

1шт.

|$27

07005-01612

GASKET

SN: 40001-UP

4шт.

|$28

3FD-21-21120

GASKET

SN: 40001-UP

1шт.

3

3FD-15-05020

SEAL KIT,TRANSMISSION CONTROL VALVE

SN: 40001-UP

1шт.

|$30

07002-12434

O-RING

SN: 40001-UP

1шт.

|$31

07000-72014

O-RING

SN: 40001-UP

1шт.

|$32

711-04-16360

SEAL

SN: 40001-UP

1шт.

|$33

07002-12434

O-RING

SN: 40001-UP

1шт.

|$34

07002-13034

O-RING

SN: 40001-UP

1шт.

|$35

07005-02216

GASKET

SN: 40001-UP

1шт.

4

3FD-21-05010

SEAL KIT,HUB (FOR LOAD CAP. 5 TO 7 TON)

SN: 40001-UP

1шт.

|$37

3FD-21-05030

SEAL KIT,HUB (FOR LOAD CAPACITY 8 TON)

SN: 40001-UP

1шт.

|$38

3FD-21-21140

GASKET

SN: 40001-UP

1шт.

|$39

3FD-21-00010

SHIM ASS'Y

SN: 40001-UP

1шт.

|$40

07012-00055

SEAL

SN: 40001-UP

1шт.

|$41

07000-13048

O-RING

SN: 40001-UP

1шт.

|$42

07012-00135

SEAL

SN: 40001-UP

2шт.

|$43

3FD-21-22150

GASKET,(FOR LOAD CAPACITY 5 TO 7 TON)

SN: 40001-UP

2шт.

|$44

3FD-21-23150

GASKET,(FOR LOAD CAPACITY 8 TON)

SN: 40001-UP

2шт.

|$45

3FD-21-22170

GASKET

SN: 40001-UP

2шт.

|$46

07005-01012

GASKET

SN: 40001-UP

12шт.

5

3ED-24-05025

BEARING KIT,KING PIN

SN: 40001-UP

2шт.

|$48

308-15-21760

BEARING

SN: 40001-UP

2шт.

|$49

3ED-24-18240

BEARING

SN: 40001-UP

1шт.

|$50

307-27-11340

SHIM, 0.3MM

SN: 40001-UP

2шт.

|$51

307-27-11350

PLUG

SN: 40001-UP

4шт.

6

3ED-24-05035

BEARING KIT,KING PIN

SN: 40001-UP

1шт.

|$53

308-27-25336

BEARING

SN: 40001-UP

4шт.

|$54

308-27-25320

BEARING

SN: 40001-UP

2шт.

|$55

308-27-25340

SHIM, 0.2MM

SN: 40001-UP

4шт.

|$56

308-27-25350

SHIM, 0.5MM

SN: 40001-UP

2шт.

|$57

3ED-24-42190

PLUG

SN: 40001-UP

4шт.

7

3ED-30-05060

SERVICE KIT,WHEEL BRAKE

SN: 40001-UP

2шт.

|$59

0

SPRING

SN: 40001-UP

1шт.

|$60

0

PISTON ASS'Y

SN: 40001-UP

2шт.

|$61

0

CUP

SN: 40001-UP

1шт.

|$62

0

RING

SN: 40001-UP

1шт.

|$63

3ED-30-41380

BOOT

SN: 40001-UP

2шт.

8

310-32-05050

SERVICE KIT,WHEEL BRAKE

SN: 40001-UP

4шт.

|$65

0

PISTON

SN: 40001-UP

2шт.

|$66

0

CUP

SN: 40001-UP

2шт.

|$67

0

SPRING

SN: 40001-UP

1шт.

|$68

310-32-21560

BOOT

SN: 40001-UP

2шт.

9

3ED-64-05061

REPAIR KIT,TILT CYLINDER

SN: 40001-UP

2шт.

|$70

45B-1HF-1281

PACKING

SN: 40001-UP

1шт.

|$71

3ED-64-45360

SEAL,OIL

SN: 40001-UP

1шт.

|$72

3ED-64-45510

PACKING

SN: 40001-UP

1шт.

|$73

07000-15090

O-RING

SN: 40001-UP

1шт.

|$74

07000-02100

O-RING

SN: 40001-UP

1шт.

10

KB3011A-00223

REPAIR KIT,TILT CYLINDER

SN: 40001-UP

2шт.

|$76

304-827-1730

U-RING

SN: 40001-UP

1шт.

|$77

KB30191-50050

RING,WIPER

SN: 40001-UP

1шт.

|$78

46C-1TE-2750

O-RING

SN: 40001-UP

1шт.

|$79

546-955-1820

O-RING

SN: 40001-UP

1шт.

|$80

KBB6163-11001

PACKING

SN: 40001-UP

1шт.

11

3FD-64-05010

SERVICE KIT,STEERING CYLINDER

SN: 40001-UP

1шт.

|$82

3FD-64-11260

U-RING

SN: 40001-UP

2шт.

|$83

3FD-64-11240

U-PACKING

SN: 40001-UP

2шт.

|$84

3FD-64-11230

WIPER,DUST

SN: 40001-UP

2шт.

|$85

3FD-64-11160

SEAL,SLIPPER

SN: 40001-UP

1шт.

|$86

3FD-64-11210

O-RING

SN: 40001-UP

2шт.

|$87

3FD-64-11150

O-RING

SN: 40001-UP

1шт.

12

707-99-27011

REPAIR KIT,LIFT CYLINDER

SN: 40001-UP

2шт.

|$$90

(3.0M TO 3.5M MAST)

-1шт.

|$90

707-99-27880

SERVICE KIT,LIFT CYLINDER

SN: 40001-UP

2шт.

|$$92

(3.7M TO 6.0M MAST)

-1шт.

|$92

707-51-60210

PACKING,(FOR 3.0M TO 3.5M MAST)

SN: 40001-UP

1шт.

|$93

707-51-65210

PACKING,(FOR 3.7M TO 6.0M MAST)

SN: 40001-UP

1шт.

|$94

141-63-93270

SEAL,DUST (FOR 3.0M TO 3.5M MAST)

SN: 40001-UP

1шт.

|$95

144-63-92170

SEAL,DUST (FOR 3.7M TO 6.0M MAST)

SN: 40001-UP

1шт.

|$96

07000-02080

O-RING

SN: 40001-UP

1шт.

|$97

707-44-80020

RING,PISTON

SN: 40001-UP

1шт.

|$98

707-39-80090

RING,WEAR

SN: 40001-UP

1шт.

13

707-99-27891

REPAIR KIT,LIFT CYLINDER

SN: 40001-UP

2шт.

|$100

707-51-65210

PACKING

SN: 40001-UP

1шт.

|$101

144-63-92170

SEAL,DUST

SN: 40001-UP

1шт.

|$102

07000-02080

O-RING

SN: 40001-UP

1шт.

|$103

707-44-80020

RING,PISTON

SN: 40001-UP

1шт.

|$104

707-39-80090

RING,WEAR

SN: 40001-UP

1шт.

|$105

07000-02065

O-RING

SN: 40001-UP

1шт.

14

707-99-28991

REPAIR KIT,LIFT CYLINDER

SN: 40001-UP

2шт.

|$$108

(3.0M TO 3.5M MAST)

-1шт.

|$108

707-99-28891

SERVICE KIT,LIFT CYLINDER

SN: 40001-UP

2шт.

|$$110

(3.7M TO 6.0M MAST)

-1шт.

|$110

707-51-60210

PACKING,(FOR 3.0M TO 3.5M MAST)

SN: 40001-UP

1шт.

|$111

707-51-65210

PACKING,(FOR 3.7M TO 6.0M MAST)

SN: 40001-UP

1шт.

|$112

141-63-93270

SEAL,DUST (FOR 3.0M TO 3.5M MAST)

SN: 40001-UP

1шт.

|$113

144-63-92170

SEAL,DUST (FOR 3.7M TO 6.0M MAST)

SN: 40001-UP

1шт.

|$114

07000-02085

O-RING

SN: 40001-UP

1шт.

|$115

707-44-85020

RING,PISTON

SN: 40001-UP

1шт.

|$116

707-39-85090

RING,WEAR

SN: 40001-UP

1шт.

15

707-99-28880

REPAIR KIT,LIFT CYLINDER

SN: 40001-UP

2шт.

|$118

707-51-65210

PACKING

SN: 40001-UP

1шт.

|$119

144-63-92170

SEAL,DUST

SN: 40001-UP

1шт.

|$120

07000-02085

O-RING

SN: 40001-UP

1шт.

|$121

707-44-85020

RING,PISTON

SN: 40001-UP

1шт.

|$122

707-39-85090

RING,WEAR

SN: 40001-UP

1шт.

|$123

07000-02065

O-RING

SN: 40001-UP

1шт.

16

707-99-27420

REPAIR KIT,LIFT CYLINDER

SN: 40001-UP

2шт.

|$$126

(3.0M TO 3.5M MAST)

-1шт.

|$126

707-99-27886

SERVICE KIT,LIFT CYLINDER

SN: 40001-UP

2шт.

|$$128

(3.7M TO 6.0M MAST)

-1шт.

|$128

707-51-60030

PACKING,(FOR 3.0M TO 3.5M MAST)

SN: 40001-UP

1шт.

|$129

707-51-65030

PACKING,(FOR 3.7M TO 6.0M MAST)

SN: 40001-UP

1шт.

|$130

141-63-93270

SEAL,DUST (FOR 3.0M TO 3.5M MAST)

SN: 40001-UP

1шт.

|$131

144-63-92170

SEAL,DUST (FOR 3.7M TO 6.0M MAST)

SN: 40001-UP

1шт.

|$132

07000-02095

O-RING

SN: 40001-UP

1шт.

|$133

707-44-90020

RING,PISTON

SN: 40001-UP

1шт.

|$134

707-39-90091

RING,WEAR

SN: 40001-UP

1шт.

17

707-99-27895

REPAIR KIT,LIFT CYLINDER

SN: 40001-UP

2шт.

|$136

707-51-65030

PACKING

SN: 40001-UP

1шт.

|$137

144-63-92170

SEAL,DUST

SN: 40001-UP

1шт.

|$138

07000-02095

O-RING

SN: 40001-UP

1шт.

|$139

707-44-90020

RING,PISTON

SN: 40001-UP

1шт.

|$140

707-39-90091

RING,WEAR

SN: 40001-UP

1шт.

|$141

07000-02065

O-RING

SN: 40001-UP

1шт.
