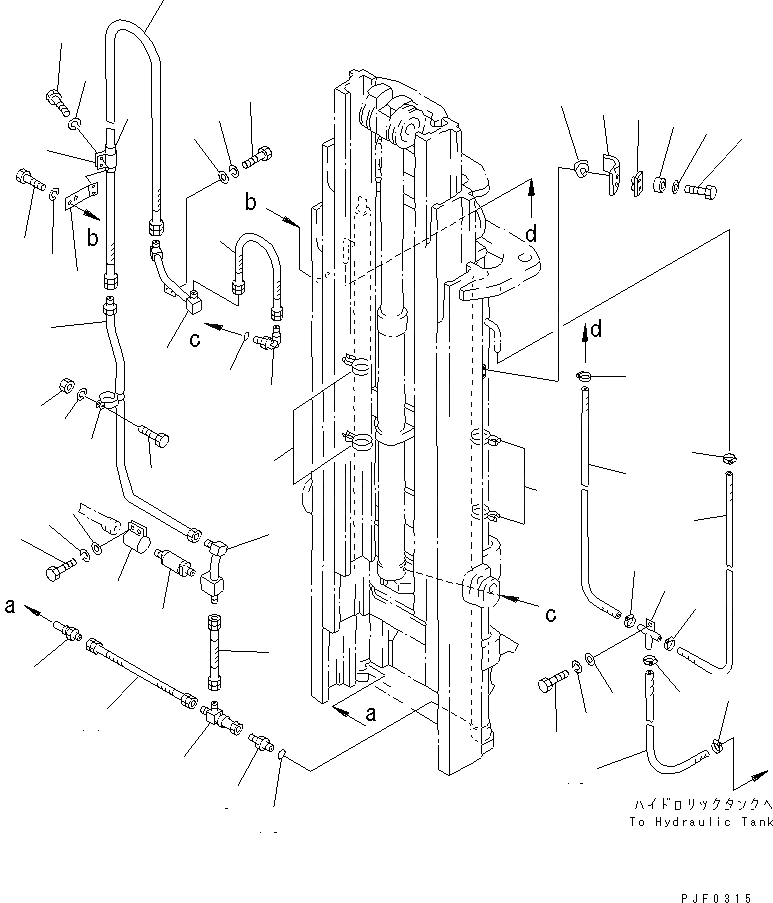

Запчасти Komatsu FD30H-14 МАЧТА ТРУБЫ (VT .8T-.T) МАЧТА И СТРЕЛА

1

3EB-T2-37110

TUBE

SN: 550001-UP

1шт.

2

3EB-71-27130

CLAMP

SN: 550001-UP

1шт.

3

01010-81020

BOLT

SN: 550001-UP

2шт.

4

01602-21030

WASHER,SPRING

SN: 550001-UP

2шт.

5

01642-21016

WASHER

SN: 550001-UP

2шт.

6

3EB-72-27300

VALVE ASS'Y,CONTROL

SN: 550001-UP

1шт.

7

3EB-T2-37230

HOSE

SN: 550001-UP

1шт.

8

3EB-T2-37211

TEE

SN: 550001-UP

1шт.

9

3EA-M1-17170

NIPPLE

SN: 550001-UP

1шт.

10

07000-12018

O-RING

SN: 550001-UP

1шт.

11

3EB-T2-37240

HOSE

SN: 550001-UP

1шт.

12

3EB-71-27400

VALVE ASS'Y,SAFETY

SN: 550001-UP

1шт.

13

37B-TBX-3371

PIPE,(FOR 3.7M MAST)

SN: 550001-UP

1шт.

|$54

37B-TBX-3371

PIPE,(FOR 4.0M MAST)

SN: 550001-UP

1шт.

|$55

37B-TBX-3431

PIPE,(FOR 4.3M MAST)

SN: 550001-UP

1шт.

|$56

37B-TBX-3431

PIPE,(FOR 4.5M MAST)

SN: 550001-UP

1шт.

|$57

37B-TBX-3431

PIPE,(FOR 4.7M MAST)

SN: 550001-UP

1шт.

|$58

37B-TBX-3501

PIPE,(FOR 5.0M MAST)

SN: 550001-UP

1шт.

|$59

37B-TBX-3501

PIPE,(FOR 5.5M MAST)

SN: 550001-UP

1шт.

|$60

37B-TBX-3601

PIPE,(FOR 6.0M MAST)

SN: 550001-UP

1шт.

|$61

37B-TBX-3601

PIPE,(FOR 6.5M MAST)

SN: 550001-UP

1шт.

|$62

37B-TBX-3601

PIPE,(FOR 7.0M MAST)

SN: 550001-UP

1шт.

14

3BB-T2-17230

CLAMP

SN: 550001-UP

1шт.

15

01010-80825

BOLT

SN: 550001-UP

1шт.

16

01602-20825

WASHER,SPRING

SN: 550001-UP

1шт.

17

01580-10806

NUT

SN: 550001-UP

1шт.

18

37R-TAX-6200

HOSE,(FOR 3.7M MAST)

SN: 550001-UP

1шт.

|$68

37R-TAX-6240

HOSE,(FOR 4.0M MAST)

SN: 550001-UP

1шт.

|$69

37R-TAX-6240

HOSE,(FOR 4.3M MAST)

SN: 550001-UP

1шт.

|$70

37R-TAX-6270

HOSE,(FOR 4.5M MAST)

SN: 550001-UP

1шт.

|$71

37R-TAX-6300

HOSE,(FOR 4.7M MAST)

SN: 550001-UP

1шт.

|$72

37R-TAX-6290

HOSE,(FOR 5.0M MAST)

SN: 550001-UP

1шт.

|$73

37R-TAX-6370

HOSE,(FOR 5.5M MAST)

SN: 550001-UP

1шт.

|$74

37R-TAX-6390

HOSE,(FOR 6.0M MAST)

SN: 550001-UP

1шт.

|$75

37R-TAX-6470

HOSE,(FOR 6.5M MAST)

SN: 550001-UP

1шт.

|$76

37R-TAX-6550

HOSE,(FOR 7.0M MAST)

SN: 550001-UP

1шт.

19

3BB-T1-17530

CLAMP

SN: 550001-UP

1шт.

20

3EB-T1-37220

RUBBER

SN: 550001-UP

1шт.

21

01010-80812

BOLT

SN: 550001-UP

2шт.

22

01602-20825

WASHER,SPRING

SN: 550001-UP

2шт.

23

3EB-T2-37160

BRACKET

SN: 550001-UP

1шт.

24

01010-80820

BOLT

SN: 550001-UP

2шт.

25

01602-20825

WASHER,SPRING

SN: 550001-UP

2шт.

26

3EB-T2-37151

PIPE

SN: 559545-UP

1шт.

|$85

0

PIPE

SN: 550001-559544

1шт.

27

01010-81025

BOLT

SN: 550001-UP

2шт.

28

01602-21030

WASHER,SPRING

SN: 550001-UP

2шт.

29

01643-31032

WASHER

SN: 550001-UP

2шт.

30

07123-00504

HOSE

SN: 550001-UP

1шт.

31

3EC-66-11120

ELBOW

SN: 550001-UP

1шт.

32

300-63-11340

O-RING

SN: 550001-UP

1шт.

|$$52

D/CLUTCH, T/C SPEC.

-1шт.

33

37B-7AZ-2210

HOSE,(FOR 3.7M MAST)

SN: 550001-UP

2шт.

|$94

37B-7AZ-2230

HOSE,(FOR 4.0M MAST)

SN: 550001-UP

2шт.

|$95

37B-7AZ-2250

HOSE,(FOR 4.3M MAST)

SN: 550001-UP

2шт.

|$96

37B-7AZ-2270

HOSE,(FOR 4.5M MAST)

SN: 550001-UP

2шт.

|$97

37B-7AZ-2280

HOSE,(FOR 4.7M MAST)

SN: 550001-UP

2шт.

|$98

37B-7AZ-2300

HOSE,(FOR 5.0M MAST)

SN: 550001-UP

2шт.

|$99

37B-7AZ-2340

HOSE,(FOR 5.5M MAST)

SN: 550001-UP

2шт.

|$100

37B-7AZ-2380

HOSE,(FOR 6.0M MAST)

SN: 550001-UP

2шт.

|$101

37B-7AZ-2420

HOSE, 2100MM,(FOR 6.5M MAST)

SN: 550001-UP

2шт.

|$102

07261-20923

HOSE,(FOR 7.0M MAST)

SN: 550001-UP

2шт.

|$$63

WET CLUTCH SPEC.

-1шт.

|$104

37A-502-6110

HOSE,(FOR 3.7M MAST)

SN: 550001-UP

2шт.

|$105

37A-502-6120

HOSE,(FOR 4.0M MAST)

SN: 550001-UP

2шт.

|$106

37A-502-6130

HOSE,(FOR 4.3M MAST)

SN: 550001-UP

2шт.

|$107

37A-502-6140

HOSE,(FOR 4.5M MAST)

SN: 550001-UP

2шт.

|$108

07261-20914

HOSE,(FOR 4.7M MAST)

SN: 550001-UP

2шт.

|$109

07261-20915

HOSE,(FOR 5.0M MAST)

SN: 550001-UP

2шт.

|$110

07261-20917

HOSE,(FOR 5.5M MAST)

SN: 550001-UP

2шт.

|$111

07261-20919

HOSE,(FOR 6.0M MAST)

SN: 550001-UP

2шт.

|$112

07261-20921

HOSE,(FOR 6.5M MAST)

SN: 550001-UP

2шт.

|$113

07261-20923

HOSE,(FOR 7.0M MAST)

SN: 550001-UP

2шт.

|$$74

D/CLUTCH, T/C SPEC.

-1шт.

34

07280-01620

CLAMP,(FOR 7.0M MAST)

SN: 550001-UP

4шт.

|$116

07285-00130

CLAMP,(FOR 3.7M TO 6.5M MAST)

SN: 550001-UP

4шт.

|$$77

WET CLUTCH SPEC.

-1шт.

34

07280-01620

CLAMP

SN: 550001-UP

4шт.

35

3EB-71-28120

PIPE,(DRY CLUTCH AND T/C SPEC.)

SN: 550001-UP

1шт.

|$120

3EB-71-38121

TEE,(WET CLUTCH SPEC.)

SN: 550001-UP

1шт.

36

01010-80830

BOLT

SN: 550001-UP

1шт.

37

01602-20825

WASHER,SPRING

SN: 550001-UP

1шт.

38

01641-20812

WASHER

SN: 550001-UP

1шт.

39

3EB-71-38150

CLAMP

SN: 550001-UP

4шт.

40

3EB-72-31410

CLAMP

SN: 550001-UP

2шт.

41

3EB-71-31430

RUBBER

SN: 550001-UP

2шт.

42

3EB-71-31510

PLATE

SN: 550001-UP

2шт.

43

3EB-71-31460

PIPE

SN: 550001-UP

4шт.

44

01010-81025

BOLT

SN: 550001-UP

4шт.

45

01643-31032

WASHER

SN: 550001-UP

4шт.

46

37B-1PM-2130

HOSE,(DRY CLUTCH AND T/C SPEC.)

SN: 550001-UP

1шт.

|$132

07261-21413

HOSE,(WET CLUTCH SPEC.)

SN: 550001-UP

1шт.

47

07280-02523

CLAMP,(DRY CLUTCH AND T/C SPEC.)

SN: 550001-UP

2шт.

|$134

07280-02023

CLAMP,(WET CLUTCH SPEC.)

SN: 550001-UP

2шт.
