Запчасти Komatsu FD30N-16 УПРАВЛЯЮЩ. КЛАПАН (ВНУТР. ЧАСТИ) (/) (ДЛЯ - 5-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН) (ПОПЕРЕЧНАЯ РУЛЕВ. ТЯГА) ГИДРАВЛИКА

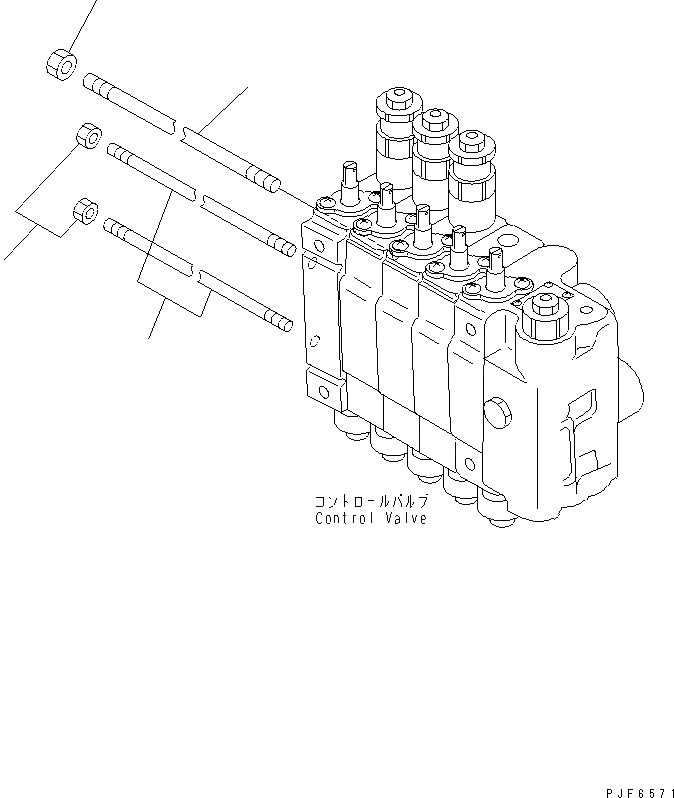

Схема запчастей Komatsu FD30N-16 - УПРАВЛЯЮЩ. КЛАПАН (ВНУТР. ЧАСТИ) (/) (ДЛЯ - 5-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН) (ПОПЕРЕЧНАЯ РУЛЕВ. ТЯГА) ГИДРАВЛИКА
1
2
3
4

Артикул

Название

Примечание

Количество

|$$1

PLEASE USE THE CONTROL VALVE FOR 3T WHEN THE TRUCKS ARE 2T AND 2.5T PROVIDED WITH FV MAST OF 5.5M OR MORE.

-1шт.

|$19

37B-1LA-5311

CONTROL VALVE ASS'Y,3-SPOOL (FOR 2.0T - 2.5T)

SN: 708772-UP

1шт.

|$20

37B-1LA-5310

CONTROL VALVE ASS'Y,3-SPOOL (FOR 2.0T - 2.5T)

SN: 700001-708771

1шт.

|$21

37B-1LA-5321

CONTROL VALVE ASS'Y,3-SPOOL (FOR 3.0T)

SN: 708772-UP

1шт.

|$22

37B-1LA-5320

CONTROL VALVE ASS'Y,3-SPOOL (FOR 3.0T)

SN: 700001-708771

1шт.

|$23

37B-1LA-5331

CONTROL VALVE ASS'Y,3-SPOOL (FOR 3.5T)

SN: 708772-UP

1шт.

|$24

37B-1LA-5330

CONTROL VALVE ASS'Y,3-SPOOL (FOR 3.5T)

SN: 700001-708771

1шт.

|$25

37B-1LB-5311

CONTROL VALVE ASS'Y,3-SPOOL

SN: 708772-UP

1шт.

|$26

37B-1LB-5310

CONTROL VALVE ASS'Y,3-SPOOL

SN: 700001-708771

1шт.

|$$10

(FOR 2.0T - 2.5T),(WITH PORT RELIEF VALVE)

-1шт.

|$28

37B-1LB-5321

CONTROL VALVE ASS'Y,3-SPOOL

SN: 708772-UP

1шт.

|$29

37B-1LB-5320

CONTROL VALVE ASS'Y,3-SPOOL

SN: 700001-708771

1шт.

|$$13

(FOR 3.0T),(WITH PORT RELIEF VALVE)

-1шт.

|$31

37B-1LB-5331

CONTROL VALVE ASS'Y,3-SPOOL

SN: 708772-UP

1шт.

|$32

37B-1LB-5330

CONTROL VALVE ASS'Y,3-SPOOL

SN: 700001-708771

1шт.

|$$16

(FOR 3.5T),(WITH PORT RELIEF VALVE)

-1шт.

|$34

37B-1LA-5411

CONTROL VALVE ASS'Y,4-SPOOL (FOR 2.0T - 2.5T)

SN: 708772-UP

1шт.

|$35

37B-1LA-5410

CONTROL VALVE ASS'Y,4-SPOOL (FOR 2.0T - 2.5T)

SN: 700001-708771

1шт.

|$36

37B-1LA-5421

CONTROL VALVE ASS'Y,4-SPOOL (FOR 3.0T)

SN: 708772-UP

1шт.

|$37

37B-1LA-5420

CONTROL VALVE ASS'Y,4-SPOOL (FOR 3.0T)

SN: 700001-708771

1шт.

|$38

37B-1LA-5431

CONTROL VALVE ASS'Y,4-SPOOL (FOR 3.5T)

SN: 708772-UP

1шт.

|$39

37B-1LA-5430

CONTROL VALVE ASS'Y,4-SPOOL (FOR 3.5T)

SN: 700001-708771

1шт.

|$40

37B-1LC-5411

CONTROL VALVE ASS'Y,4-SPOOL

SN: 708772-UP

1шт.

|$41

37B-1LC-5410

CONTROL VALVE ASS'Y,4-SPOOL

SN: 700001-708771

1шт.

|$$25

(FOR 2.0T - 2.5T),(WITH PORT RELIEF VALVE)

-1шт.

|$43

37B-1LC-5421

CONTROL VALVE ASS'Y,4-SPOOL

SN: 708772-UP

1шт.

|$44

37B-1LC-5420

CONTROL VALVE ASS'Y,4-SPOOL

SN: 700001-708771

1шт.

|$$28

(FOR 3.0T),(WITH PORT RELIEF VALVE)

-1шт.

|$46

37B-1LC-5431

CONTROL VALVE ASS'Y,4-SPOOL

SN: 708772-UP

1шт.

|$47

37B-1LC-5430

CONTROL VALVE ASS'Y,4-SPOOL

SN: 700001-708771

1шт.

|$$31

(FOR 3.5T),(WITH PORT RELIEF VALVE)

-1шт.

|$49

37B-1LA-5511

CONTROL VALVE ASS'Y,5-SPOOL (FOR 2.0T - 2.5T)

SN: 708772-UP

1шт.

|$50

37B-1LA-5510

CONTROL VALVE ASS'Y,5-SPOOL (FOR 2.0T - 2.5T)

SN: 700001-708771

1шт.

|$51

37B-1LA-5521

CONTROL VALVE ASS'Y,5-SPOOL (FOR 3.0T)

SN: 708772-UP

1шт.

|$52

37B-1LA-5520

CONTROL VALVE ASS'Y,5-SPOOL (FOR 3.0T)

SN: 700001-708771

1шт.

|$53

37B-1LA-5531

CONTROL VALVE ASS'Y,5-SPOOL (FOR 3.5T)

SN: 708772-UP

1шт.

|$54

37B-1LA-5530

CONTROL VALVE ASS'Y,5-SPOOL (FOR 3.5T)

SN: 700001-708771

1шт.

|$55

37B-1LC-5511

CONTROL VALVE ASS'Y,5-SPOOL

SN: 708772-UP

1шт.

|$56

37B-1LC-5510

CONTROL VALVE ASS'Y,5-SPOOL

SN: 700001-708771

1шт.

|$$40

(FOR 2.0T - 2.5T),(WITH PORT RELIEF VALVE)

-1шт.

|$58

37B-1LC-5521

CONTROL VALVE ASS'Y,5-SPOOL

SN: 708772-UP

1шт.

|$59

37B-1LC-5520

CONTROL VALVE ASS'Y,5-SPOOL

SN: 700001-708771

1шт.

|$$43

(FOR 3.0T),(WITH PORT RELIEF VALVE)

-1шт.

|$61

37B-1LC-5531

CONTROL VALVE ASS'Y,5-SPOOL

SN: 708772-UP

1шт.

|$62

37B-1LC-5530

CONTROL VALVE ASS'Y,5-SPOOL

SN: 700001-708771

1шт.

|$$46

(FOR 3.5T),(WITH PORT RELIEF VALVE)

-1шт.

|$$47

THESE ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.R4140-51A0 TO R4140-54A1.

-1шт.

1

30A-61-11960

NUT

SN: 700001-UP

2шт.

2

30A-61-11970

TIE ROD,3-SPOOL

SN: 700001-UP

2шт.

|$67

30A-61-11980

TIE ROD,4-SPOOL

SN: 700001-UP

2шт.

|$68

30A-61-11990

TIE ROD,5-SPOOL

SN: 700001-UP

2шт.

3

30A-61-12010

NUT

SN: 700001-UP

1шт.

4

30A-61-12020

TIE ROD,3-SPOOL

SN: 700001-UP

1шт.

|$71

30A-61-12030

TIE ROD,4-SPOOL

SN: 700001-UP

1шт.

|$72

30A-61-12040

TIE ROD,5-SPOOL

SN: 700001-UP

1шт.

Выбрано товаров: 55
