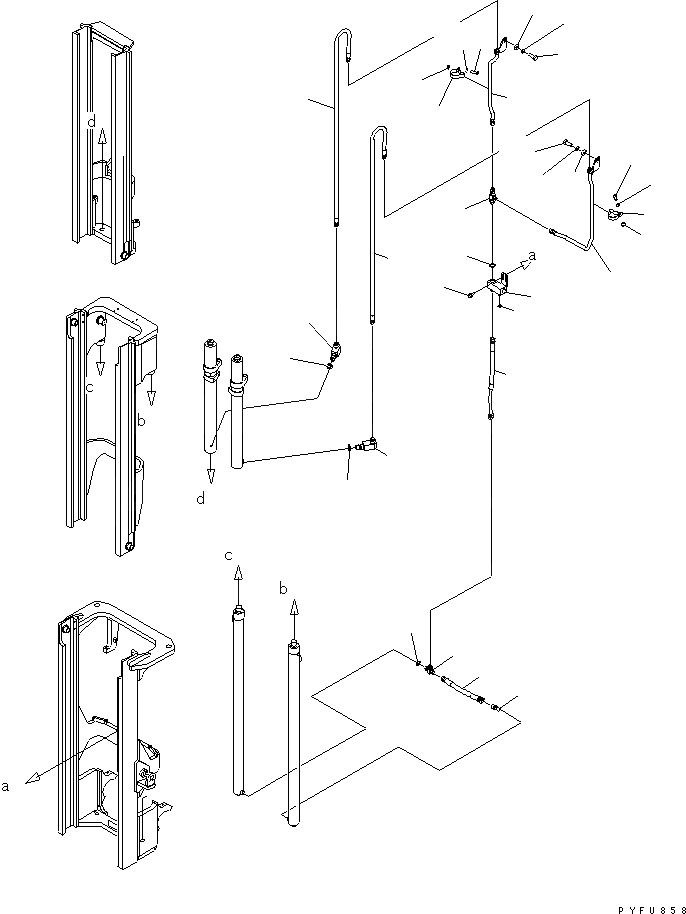

Запчасти Komatsu FD40Z-10 TFV МАЧТА (С ЦИЛИНДР) (/) (LIFT ТРУБЫ) МАЧТА КОМПОНЕНТЫ

1

3EC-71-56510UE

BLOCK

SN: 133001-UP

1шт.

2

02896-11015

O-RING

SN: 133001-UP

1шт.

3

01024-81025

BOLT

SN: 133001-UP

2шт.

4

07002-12034

O-RING

SN: 133001-UP

2шт.

5

3EC-U3-57210

ELBOW

SN: 133001-UP

2шт.

6

3EC-N1-57260

HOSE

SN: 133001-UP

1шт.

7

3EC-73-56710

HOSE

SN: 133001-UP

1шт.

8

3EC-T1-57250

TEE

SN: 133001-UP

1шт.

9

07000-12018

O-RING

SN: 133001-UP

1шт.

10

3EC-T1-37310

VALVE ASS'Y,DOWN SAFETY

SN: 133001-UP

1шт.

11

3EC-T1-57110

TEE

SN: 133001-UP

1шт.

12

07002-12434

O-RING

SN: 133001-UP

1шт.

13

3EC-T1-37150

CLAMP

SN: 133001-UP

2шт.

14

01010-80825

BOLT

SN: 133001-UP

2шт.

15

01602-20825

WASHER,SPRING

SN: 133001-UP

2шт.

16

01580-10806

NUT

SN: 133001-UP

2шт.

17

37B-UAX-1190

HOSE,(FOR 4.0M MAST)

SN: 133001-UP

2шт.

|$23

37B-UAX-1210

HOSE,(FOR 4.3M MAST)

SN: 133001-UP

2шт.

|$24

37B-UAX-1230

HOSE,(FOR 4.5M MAST)

SN: 133001-UP

2шт.

|$25

37B-UAX-1270

HOSE,(FOR 5.0M MAST)

SN: 133001-UP

2шт.

18

37C-THY-5400SG

PIPE,R.H. (FOR 4.0M MAST)

SN: 133001-UP

1шт.

|$27

37C-THY-5430SG

PIPE,R.H. (FOR 4.3M MAST)

SN: 133001-UP

1шт.

|$28

37C-THY-5450SG

PIPE,R.H. (FOR 4.5M MAST)

SN: 133001-UP

1шт.

|$29

37C-THY-5500SG

PIPE,R.H. (FOR 5.0M MAST)

SN: 133001-UP

1шт.

19

37C-THZ-5400SG

PIPE,L.H. (FOR 4.0M MAST)

SN: 133001-UP

1шт.

|$31

37C-THZ-5430SG

PIPE,L.H. (FOR 4.3M MAST)

SN: 133001-UP

1шт.

|$32

37C-THZ-5450SG

PIPE,L.H. (FOR 4.5M MAST)

SN: 133001-UP

1шт.

|$33

37C-THZ-5500SG

PIPE,L.H. (FOR 5.0M MAST)

SN: 133001-UP

1шт.

20

01010-81235

BOLT

SN: 133001-UP

2шт.

21

01602-21236

WASHER,SPRING

SN: 133001-UP

2шт.

22

01643-31232

WASHER

SN: 133001-UP

2шт.
