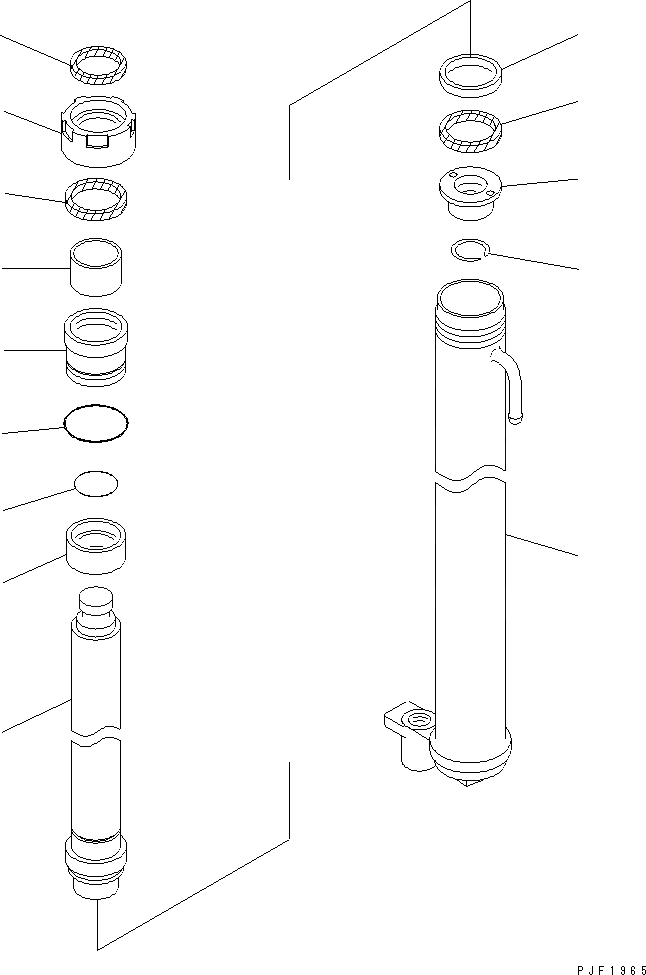

Запчасти Komatsu FD50A-7 ГИДРОЦИЛИНДР ПОДЪЕМА МАЧТА И СТРЕЛА

|$11

37C-7CT-2302YD

CYLINDER ASS'Y,LIFT (FOR 3.0M MAST)

SN: 100001-UP

2шт.

|$12

37C-7CT-2332YD

CYLINDER ASS'Y,LIFT (FOR 3.3M MAST)

SN: 100001-UP

2шт.

|$13

37C-7CT-2352YD

CYLINDER ASS'Y,LIFT (FOR 3.5M MAST)

SN: 100001-UP

2шт.

|$14

37C-7CT-2372YD

CYLINDER ASS'Y,LIFT (FOR 3.7M MAST)

SN: 100001-UP

2шт.

|$15

37C-7CT-2402YD

CYLINDER ASS'Y,LIFT (FOR 4.0M MAST)

SN: 100001-UP

2шт.

|$16

37C-7CT-2432YD

CYLINDER ASS'Y,LIFT (FOR 4.3M MAST)

SN: 100001-UP

2шт.

|$17

37C-7CT-2452YD

CYLINDER ASS'Y,LIFT (FOR 4.5M MAST)

SN: 100001-UP

2шт.

|$18

37C-7CT-2472YD

CYLINDER ASS'Y,LIFT (FOR 4.7M MAST)

SN: 100001-UP

2шт.

|$19

37C-7CT-2502YD

CYLINDER ASS'Y,LIFT (FOR 5.0M MAST)

SN: 100001-UP

2шт.

|$20

37C-7CT-2552YD

CYLINDER ASS'Y,LIFT (FOR 5.5M MAST)

SN: 100001-UP

2шт.

|$21

37C-7CT-2602YD

CYLINDER ASS'Y,LIFT (FOR 6.0M MAST)

SN: 100001-UP

2шт.

1

37C-7CU-1301

ROD ASS'Y,(FOR 3.0M MAST)

SN: 100001-UP

1шт.

|$23

37C-7CU-1331

ROD ASS'Y,(FOR 3.3M MAST)

SN: 100001-UP

1шт.

|$24

37C-7CU-1351

ROD ASS'Y,(FOR 3.5M MAST)

SN: 100001-UP

1шт.

|$25

37C-7CU-1371

ROD ASS'Y,(FOR 3.7M MAST)

SN: 100001-UP

1шт.

|$26

37C-7CU-1401

ROD ASS'Y,(FOR 4.0M MAST)

SN: 100001-UP

1шт.

|$27

37C-7CU-1431

ROD ASS'Y,(FOR 4.3M MAST)

SN: 100001-UP

1шт.

|$28

37C-7CU-1451

ROD ASS'Y,(FOR 4.5M MAST)

SN: 100001-UP

1шт.

|$29

37C-7CU-1471

ROD ASS'Y,(FOR 4.7M MAST)

SN: 100001-UP

1шт.

|$30

37C-7CU-1501

ROD ASS'Y,(FOR 5.0M MAST)

SN: 100001-UP

1шт.

|$31

37C-7CU-1551

ROD ASS'Y,(FOR 5.5M MAST)

SN: 100001-UP

1шт.

|$32

37C-7CU-1601

ROD ASS'Y,(FOR 6.0M MAST)

SN: 100001-UP

1шт.

2

37C-7CV-1302

ROD ASS'Y,(FOR 3.0M MAST)

SN: 100001-UP

1шт.

|$34

37C-7CV-1332

ROD ASS'Y,(FOR 3.3M MAST)

SN: 100001-UP

1шт.

|$35

37C-7CV-1352

ROD ASS'Y,(FOR 3.5M MAST)

SN: 100001-UP

1шт.

|$36

37C-7CV-1372

ROD ASS'Y,(FOR 3.7M MAST)

SN: 100001-UP

1шт.

|$37

37C-7CV-1402

ROD ASS'Y,(FOR 4.0M MAST)

SN: 100001-UP

1шт.

|$38

37C-7CV-1432

ROD ASS'Y,(FOR 4.3M MAST)

SN: 100001-UP

1шт.

|$39

37C-7CV-1452

ROD ASS'Y,(FOR 4.5M MAST)

SN: 100001-UP

1шт.

|$40

37C-7CV-1472

ROD ASS'Y,(FOR 4.7M MAST)

SN: 100001-UP

1шт.

|$41

37C-7CV-1502

ROD ASS'Y,(FOR 5.0M MAST)

SN: 100001-UP

1шт.

|$42

37C-7CV-1552

ROD ASS'Y,(FOR 5.5M MAST)

SN: 100001-UP

1шт.

|$43

37C-7CV-1602

ROD ASS'Y,(FOR 6.0M MAST)

SN: 100001-UP

1шт.

3

3EC-63-11230

RING

SN: 100001-UP

1шт.

4

34B-63-17680

O-RING,(FOR 4.0M MAST) (K21)

SN: 100001-UP

1шт.

|$46

548-61-11150

O-RING,(FOR 4.3M TO 6.0M MAST) (K22)

SN: 100001-UP

1шт.

5

34C-63-17140

SPACER,(FOR 4.0M MAST)

SN: 100001-UP

1шт.

|$48

34A-63-15231

SPACER,(FOR 4.3M AND 4.5M MAST)

SN: 100001-UP

1шт.

|$49

34A-63-15290

SPACER,(FOR 4.7M TO 6.0M MAST)

SN: 100001-UP

1шт.

6

3EC-63-11210

HEAD,(FOR 3.0M TO 4.0M MAST)

SN: 100001-UP

1шт.

|$51

3EC-63-11410

HEAD,(FOR 4.3M TO 6.0M MAST)

SN: 100001-UP

1шт.

7

07000-13065

O-RING (K21,22)

SN: 100001-UP

1шт.

8

304-827-1710

BUSHING,(FOR 3.0M TO 4.0M MAST)

SN: 100001-UP

1шт.

|$54

3EC-63-11430

BUSHING,(FOR 4.3M TO 6.0M MAST)

SN: 100001-UP

1шт.

9

3EC-63-11220

HOLDER,(FOR 3.0M TO 4.0M MAST)

SN: 100001-UP

1шт.

|$56

3EC-63-11420

HOLDER,(FOR 4.3M TO 6.0M MAST)

SN: 100001-UP

1шт.

10

360-51-81250

PACKING,(FOR 3.0M TO 4.0M MAST) (K21)

SN: 100001-UP

1шт.

|$58

364-61-31150

PACKING,(FOR 4.3M TO 6.0M MAST) (K22)

SN: 100001-UP

1шт.

11

34B-63-17890

WIPER,(FOR 3.0M TO 4.0M MAST) (K21)

SN: 100001-UP

1шт.

|$60

3EC-63-11290

WIPER,(FOR 4.3M TO 6.0M MAST) (K22)

SN: 100001-UP

1шт.

12

34A-63-15320

PACKING (K21,22)

SN: 100001-UP

1шт.

13

34A-63-15260

RETAINER

SN: 100001-UP

1шт.

14

324-61-11230

STOPPER (K21,22)

SN: 100001-UP

1шт.
