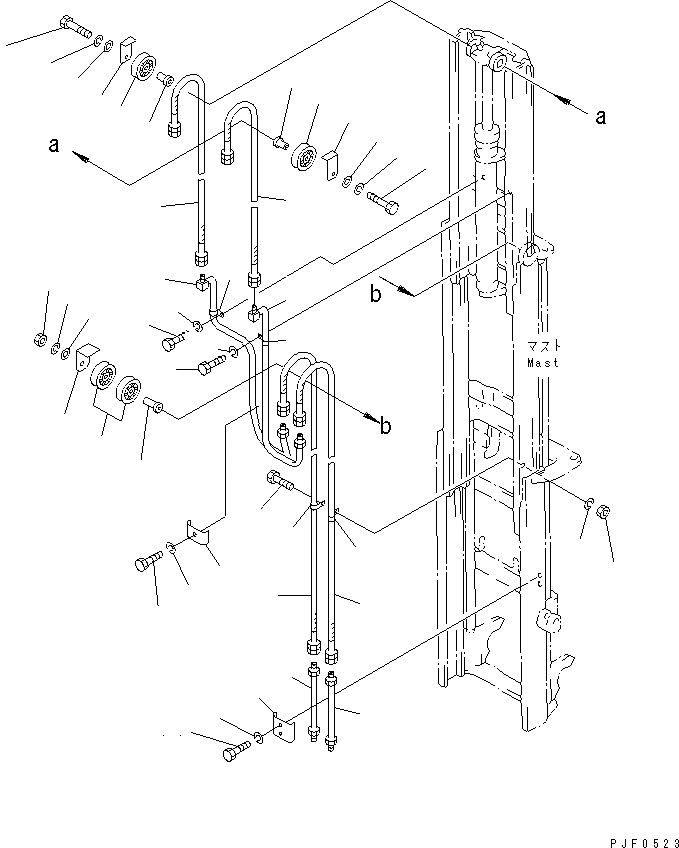

Запчасти Komatsu FD18-17 ДЛЯ 3-Х СЕКЦИОНН. CONROL КЛАПАН TFV МАЧТА ТРУБЫ РАБОЧЕЕ ОБОРУДОВАНИЕ

1

45A-1MG-1080

COLLAR

SN: 630001-UP

1шт.

2

34A-58-31390

PLATE

SN: 630001-UP

1шт.

3

01580-11210

NUT

SN: 630001-UP

1шт.

4

01602-21236

WASHER,SPRING

SN: 630001-UP

1шт.

5

01642-21216

WASHER

SN: 630001-UP

1шт.

6

34A-72-18180

PULLEY

SN: 630001-UP

4шт.

7

34A-72-18190

COLLAR

SN: 630001-UP

2шт.

8

34A-72-18210

PLATE

SN: 630001-UP

2шт.

9

01010-81255

BOLT

SN: 630001-UP

2шт.

10

01602-21236

WASHER,SPRING

SN: 630001-UP

2шт.

11

01642-21216

WASHER

SN: 630001-UP

2шт.

12

37A-ZEM-1030

PIPE

SN: 630001-UP

2шт.

13

45B-5MA-2040

CLIP

SN: 630001-UP

1шт.

14

01010-80835

BOLT

SN: 630001-UP

2шт.

15

01602-20825

WASHER,SPRING

SN: 630001-UP

2шт.

16

34A-72-18230

CLIP

SN: 630001-UP

2шт.

17

01010-80825

BOLT

SN: 630001-UP

1шт.

18

01580-10806

NUT

SN: 630001-UP

1шт.

19

01602-20825

WASHER,SPRING

SN: 630001-UP

1шт.

20

46B-5MG-1010

CLAMP

SN: 630001-UP

1шт.

21

01010-80825

BOLT

SN: 630001-UP

1шт.

22

01602-20825

WASHER,SPRING

SN: 630001-UP

1шт.

23

34B-36-11530

CLIP

SN: 630001-UP

2шт.

24

01010-80820

BOLT

SN: 630001-UP

2шт.

25

01602-20825

WASHER,SPRING

SN: 630001-UP

2шт.

26

37A-684-4410

HOSE,(FOR 3.7M MAST)

SN: 630001-UP

2шт.

|$46

37A-684-4450

HOSE,(FOR 4.0M MAST)

SN: 630001-UP

2шт.

|$47

37A-684-4490

HOSE,(FOR 4.3M MAST)

SN: 630001-UP

2шт.

|$48

37A-684-4520

HOSE,(FOR 4.5M MAST)

SN: 630001-UP

2шт.

|$49

37A-684-4550

HOSE,(FOR 4.7M MAST)

SN: 630001-UP

2шт.

|$50

37A-684-4590

HOSE,(FOR 5.0M MAST)

SN: 630001-UP

2шт.

|$51

37A-684-4650

HOSE,(FOR 5.5M MAST)

SN: 630001-UP

2шт.

|$52

37A-684-4720

HOSE,(FOR 6.0M MAST)

SN: 630001-UP

2шт.

27

37A-684-4420

HOSE,(FOR 3.7M MAST)

SN: 630001-UP

2шт.

|$54

37A-684-4240

HOSE,(FOR 4.0M MAST)

SN: 630001-UP

2шт.

|$55

37A-684-4260

HOSE,(FOR 4.3M MAST)

SN: 630001-UP

2шт.

|$56

37A-684-4270

HOSE,(FOR 4.5M MAST)

SN: 630001-UP

2шт.

|$57

37A-684-4290

HOSE,(FOR 4.7M MAST)

SN: 630001-UP

2шт.

|$58

37A-684-4310

HOSE,(FOR 5.0M MAST)

SN: 630001-UP

2шт.

|$59

37A-684-4250

HOSE,(FOR 5.5M MAST)

SN: 630001-UP

2шт.

|$60

37A-684-4290

HOSE,(FOR 6.0M MAST)

SN: 630001-UP

2шт.

28

45A-5MG-1110

PIPE,(FOR 3.7M MAST)

SN: 630001-UP

1шт.

|$70

45A-5MG-1110

PIPE,(FOR 4.0M MAST)

SN: 630001-UP

1шт.

|$71

45A-5MG-1110

PIPE,(FOR 4.3M MAST)

SN: 630001-UP

1шт.

|$72

45A-5MG-1110

PIPE,(FOR 4.5M MAST)

SN: 630001-UP

1шт.

|$73

45A-5MG-1110

PIPE,(FOR 4.7M MAST)

SN: 630001-UP

1шт.

|$74

45A-5MG-1110

PIPE,(FOR 5.0M MAST)

SN: 630001-UP

1шт.

|$75

45A-5MG-1130

PIPE,(FOR 5.5M MAST)

SN: 630001-UP

1шт.

|$76

45A-5MG-1130

PIPE,(FOR 6.0M MAST)

SN: 630001-UP

1шт.

29

45A-5MG-1120

PIPE,(FOR 3.7M MAST)

SN: 630001-UP

1шт.

|$86

45A-5MG-1120

PIPE,(FOR 4.0M MAST)

SN: 630001-UP

1шт.

|$87

45A-5MG-1120

PIPE,(FOR 4.3M MAST)

SN: 630001-UP

1шт.

|$88

45A-5MG-1120

PIPE,(FOR 4.5M MAST)

SN: 630001-UP

1шт.

|$89

45A-5MG-1120

PIPE,(FOR 4.7M MAST)

SN: 630001-UP

1шт.

|$90

45A-5MG-1120

PIPE,(FOR 5.0M MAST)

SN: 630001-UP

1шт.

|$91

45A-5MG-1140

PIPE,(FOR 5.5M MAST)

SN: 630001-UP

1шт.

|$92

45A-5MG-1140

PIPE,(FOR 6.0M MAST)

SN: 630001-UP

1шт.
