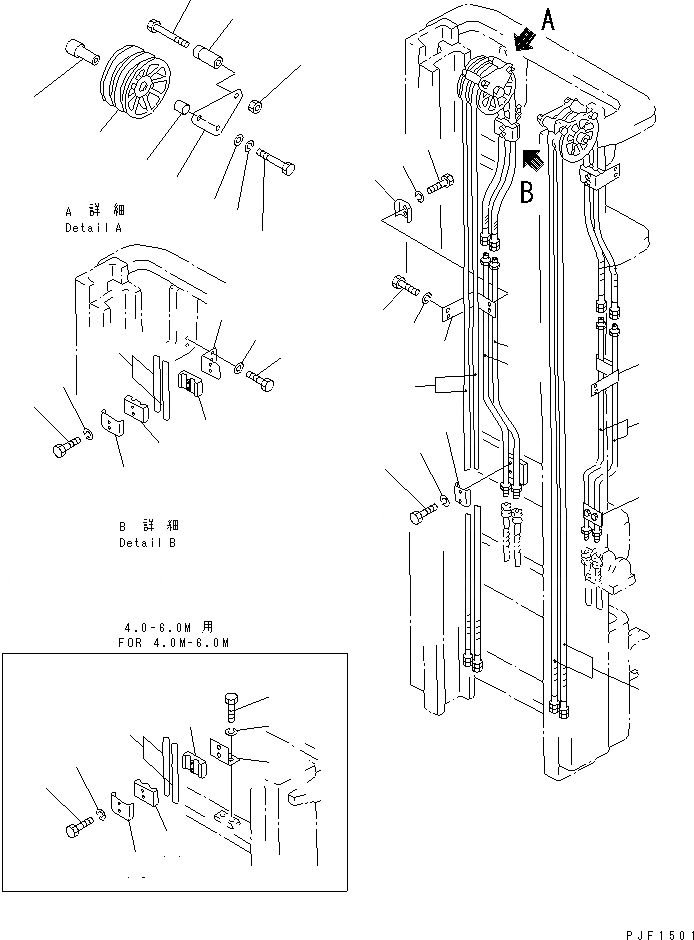

Запчасти Komatsu FD20-25-14 МАЧТА ТРУБЫ (ДЛЯ 5-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН НАВЕСН. ОБОРУД) (OUTER ШЛАНГИ И ТИП) (/) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

45A-5MA-1170

CLIP

SN: 550001-UP

2шт.

2

01010-80830

BOLT

SN: 550001-UP

4шт.

3

01602-20825

WASHER,SPRING

SN: 550001-UP

4шт.

4

45B-2MA-3180SA

BRACKET

SN: 550001-UP

2шт.

5

01010-80820

BOLT

SN: 550001-UP

4шт.

6

01602-20825

WASHER,SPRING

SN: 550001-UP

4шт.

7

45B-5MA-2040SA

CLIP

SN: 550001-UP

2шт.

8

01010-80835

BOLT

SN: 550001-UP

4шт.

9

01602-20825

WASHER,SPRING

SN: 550001-UP

4шт.

10

304-868-2240SA

CLAMP

SN: 550001-UP

2шт.

11

304-868-2250

RUBBER

SN: 550001-UP

4шт.

12

01010-80845

BOLT

SN: 550001-UP

4шт.

13

01602-20825

WASHER,SPRING

SN: 550001-UP

4шт.

14

45C-2MA-1200

PULLEY

SN: 550001-UP

2шт.

15

45B-1MA-2112

SHAFT

SN: 550001-UP

2шт.

16

45B-1MA-2140

COLLAR

SN: 550001-UP

2шт.

17

45B-1MA-2150

PLATE

SN: 550001-UP

2шт.

18

01011-81205

BOLT

SN: 550001-UP

2шт.

19

01602-21236

WASHER,SPRING

SN: 550001-UP

2шт.

20

01643-31232

WASHER

SN: 550001-UP

2шт.

21

37A-ZDP-1100

PIPE

SN: 550001-UP

4шт.

22

01010-81085

BOLT

SN: 550001-UP

4шт.

23

01580-11008

NUT

SN: 550001-UP

4шт.

24

07123-00323

HOSE,(FOR 3.0M MAST)

SN: 550001-UP

4шт.

|$92

07123-00325

HOSE,(FOR 3.3M MAST)

SN: 550001-UP

4шт.

|$93

07123-00327

HOSE,(FOR 3.5M AND 3.7M MAST)

SN: 550001-UP

4шт.

|$94

07123-00330

HOSE,(FOR 4.0M MAST)

SN: 550001-UP

4шт.

|$95

07123-00333

HOSE,(FOR 4.3M MAST)

SN: 550001-UP

4шт.

|$96

07123-00332

HOSE,(FOR 4.5M MAST)

SN: 550001-UP

4шт.

|$97

07123-00338

HOSE,(FOR 4.7M AND 5.0M MAST)

SN: 550001-UP

4шт.

|$98

07123-00348

HOSE,(FOR 5.5M MAST)

SN: 550001-UP

4шт.

|$99

07123-00350

HOSE,(FOR 6.0M MAST)

SN: 550001-UP

4шт.

25

37B-ZAN-5010YD

PIPE,(FOR 3.0M MAST)

SN: 550001-UP

2шт.

|$101

37B-ZAN-5020YD

PIPE,(FOR 3.3M AND 3.5M MAST)

SN: 550001-UP

2шт.

|$102

37B-ZAN-5030YD

PIPE,(FOR 3.7M MAST)

SN: 550001-UP

2шт.

|$103

37B-ZAN-5040YD

PIPE,(FOR 4.0M,4.3M,4.7M,5.5M MAST)

SN: 550001-UP

2шт.

|$104

37B-ZAN-5050YD

PIPE,(FOR 4.5M, 5.0M, 6.0M MAST)

SN: 550001-UP

2шт.

26

37B-ZAS-5010YD

PIPE,(FOR 3.0M MAST)

SN: 550001-UP

2шт.

|$106

37B-ZAS-5020YD

PIPE,(FOR 3.3M AND 3.5M MAST)

SN: 550001-UP

2шт.

|$107

37B-ZAS-5030YD

PIPE,(FOR 3.7M MAST)

SN: 550001-UP

2шт.

|$108

37B-ZAS-5040YD

PIPE,(FOR 4.0M,4.3M,4.7M,5.5M MAST)

SN: 550001-UP

2шт.

|$109

37B-ZAS-5050YD

PIPE,(FOR 4.5M, 5.0M, 6.0M MAST)

SN: 550001-UP

2шт.

27

45B-2MA-3170SA

BRACKET,(FOR 3.0M TO 3.7M MAST)

SN: 550001-UP

2шт.

|$111

45B-2MA-3150SA

BRACKET,(FOR 4.0M TO 6.0M MAST)

SN: 550001-UP

2шт.

28

01010-80816

BOLT,(FOR 3.0M TO 3.7M MAST)

SN: 550001-UP

4шт.

|$113

01010-80820

BOLT,(FOR 4.0M TO 6.0M MAST)

SN: 550001-UP

4шт.

29

01602-20825

WASHER,SPRING

SN: 550001-UP

4шт.
