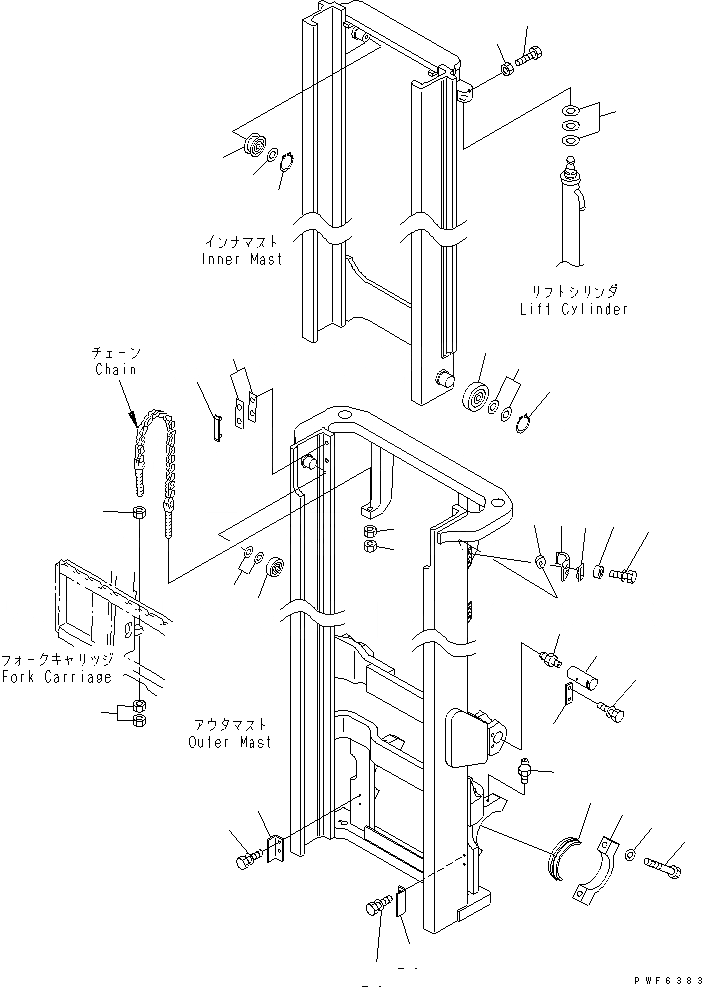

Запчасти Komatsu FD20H FV МАЧТА (/) (МАЧТА ATTACHING ЧАСТИ) МАЧТА И СТРЕЛА

1

3EB-71-51290

BUSHING

SN: 570001-UP

2шт.

2

07020-00000

FITTING,GREASE

SN: 570001-UP

2шт.

3

3EB-71-00090

SHIM ASS'Y

SN: 570001-UP

1шт.

|$27

0

SHIM, 1.0MM

SN: 570001-UP

-2шт.

|$28

0

SHIM, 0.5MM

SN: 570001-UP

-2шт.

4

37B-9AA-1112

ROLLER,S

SN: 570001-UP

2шт.

|$30

37B-9AA-1122

ROLLER,M

SN: 570001-UP

2шт.

|$31

37B-9AA-1132

ROLLER,L

SN: 570001-UP

2шт.

5

3EB-71-00050

SHIM ASS'Y

SN: 570001-UP

1шт.

|$33

0

SHIM, 0.5MM

SN: 570001-UP

-2шт.

|$34

0

SHIM, 1.0MM

SN: 570001-UP

-2шт.

|$35

0

SHIM, 2.3MM

SN: 570001-UP

-2шт.

6

3EB-71-51640

STRIP

SN: 570001-UP

2шт.

7

3EB-71-31410

CLAMP,(FOR 3.0M TO 5.0M MAST)

SN: 570001-UP

2шт.

|$38

3EB-72-31410

CLAMP,(FOR 5.5M AND 6.0M MAST)

SN: 570001-UP

4шт.

8

3EB-71-31510

PLATE,(FOR 3.0M TO 5.0M MAST)

SN: 570001-UP

2шт.

|$40

3EB-71-31510

PLATE,(FOR 5.5M AND 6.0M MAST)

SN: 570001-UP

4шт.

9

3EB-71-31430

RUBBER,(FOR 3.0M TO 5.0M MAST)

SN: 570001-UP

2шт.

|$42

3EB-72-31430

RUBBER,(FOR 5.5M AND 6.0M MAST)

SN: 570001-UP

4шт.

10

3EB-71-31460

PIPE,(FOR 3.0M TO 5.0M MAST)

SN: 570001-UP

4шт.

|$44

3EB-71-31460

PIPE,(FOR 5.5M AND 6.0M MAST)

SN: 570001-UP

8шт.

11

01024-81025

BOLT,(FOR 3.0M TO 5.0M MAST)

SN: 570001-UP

4шт.

|$46

01024-81025

BOLT,(FOR 5.5M AND 6.0M MAST)

SN: 570001-UP

8шт.

12

3EB-71-00070

SHIM ASS'Y

SN: 570001-UP

1шт.

|$48

0

SHIM, 0.5MM

SN: 570001-UP

-2шт.

|$49

0

SHIM, 1.0MM

SN: 570001-UP

-2шт.

|$50

0

SHIM, 2.3MM

SN: 570001-UP

-2шт.

13

01016-81030

BOLT

SN: 570001-UP

2шт.

14

01580-11008

NUT

SN: 570001-UP

2шт.

15

34B-72-11150

SHEAVE

SN: 570001-UP

2шт.

16

01582-11613

NUT

SN: 570001-UP

8шт.

17

303-70-11471

NUT

SN: 570001-UP

2шт.

18

37B-9AB-2040

SHIM, 2.3MM

SN: 570001-UP

2шт.

19

04064-03515

RING,SNAP

SN: 570001-UP

2шт.

20

37B-9AA-1512

ROLLER,S

SN: 570001-UP

2шт.

|$59

37B-9AA-1522

ROLLER,M

SN: 570001-UP

2шт.

|$60

37B-9AA-1532

ROLLER,L

SN: 570001-UP

2шт.

21

3EB-71-00060

SHIM ASS'Y

SN: 570001-UP

1шт.

|$62

0

SHIM, 0.5MM

SN: 570001-UP

-2шт.

|$63

0

SHIM, 1.0MM

SN: 570001-UP

-2шт.

|$64

0

SHIM, 2.3MM

SN: 570001-UP

-2шт.

22

04064-04018

RING,SNAP

SN: 570001-UP

2шт.

23

01024-80820

BOLT

SN: 570001-UP

4шт.

24

3EB-71-31380YK

BRACKET,R.H.

SN: 570001-UP

1шт.

25

3EB-71-31390YK

BRACKET,L.H.

SN: 570001-UP

1шт.

26

3EB-71-51240YK

CAP

SN: 570001-UP

2шт.

27

01010-81885

BOLT

SN: 570001-UP

4шт.

28

01643-31845

WASHER

SN: 570001-UP

4шт.

29

3EB-71-51871

PIN

SN: 570001-UP

2шт.

30

3EB-71-51881

PLATE

SN: 570001-UP

2шт.

31

01024-81025

BOLT

SN: 570001-UP

4шт.

32

07020-00000

FITTING,GREASE

SN: 570001-UP

2шт.
