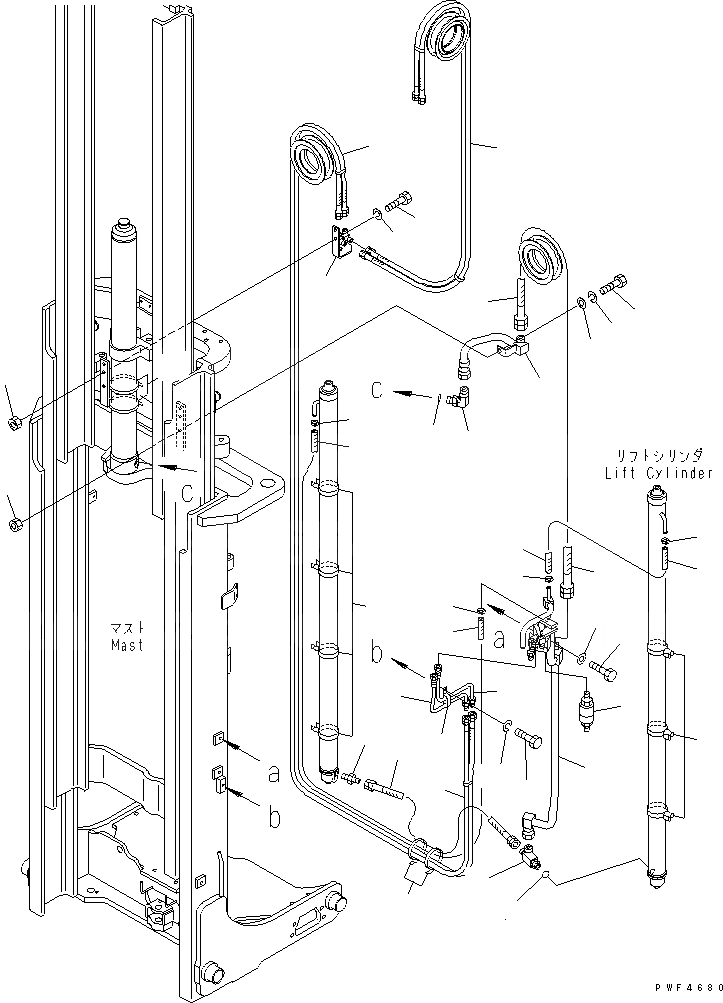

Запчасти Komatsu FB10 МАЧТА (FREE VIEW ТРОЙН. МАЧТА ТРУБЫ) (ДЛЯ .M - .M МАЧТА) (С ХОЛОДН.) (/) МАЧТА

1

3EA-71-37210

VALVE ASS'Y,DOWN CONTROL

SN: 85001-UP

1шт.

2

3EA-71-17130

VALVE ASS'Y,DOWN SAFETY

SN: 85001-UP

1шт.

3

3LA-71-18240

TEE

SN: 85001-UP

1шт.

4

07000-22014

O-RING

SN: 85001-UP

1шт.

5

3LA-T1-18160YK

PIPE

SN: 85001-UP

1шт.

|$7

3LA-T1-18160WK

PIPE,(COLD)

SN: 85001-UP

1шт.

6

01010-80825

BOLT

SN: 85001-UP

1шт.

7

01580-10806

NUT

SN: 85001-UP

1шт.

8

01602-20825

WASHER,SPRING

SN: 85001-UP

1шт.

9

01643-30823

WASHER

SN: 85001-UP

1шт.

10

3LA-T1-18111YK

PIPE ASS'Y

SN: 85001-UP

1шт.

|$13

3LA-T1-18111WK

PIPE ASS'Y,(COLD)

SN: 85001-UP

-1шт.

11

01010-81016

BOLT

SN: 85001-UP

1шт.

12

01643-31032

WASHER

SN: 85001-UP

1шт.

13

3LA-T1-18171

ELBOW

SN: 85001-UP

1шт.

14

07002-12034

O-RING

SN: 85001-UP

1шт.

15

3LA-T1-18182YK

PIPE

SN: 85001-UP

1шт.

|$19

3LA-T1-18182WK

PIPE,(COLD)

SN: 85001-UP

1шт.

16

3LA-T1-18192YK

PIPE

SN: 85001-UP

1шт.

|$21

3LA-T1-18192WK

PIPE,(COLD)

SN: 85001-UP

1шт.

17

46B-5MG-1010YK

CLAMP

SN: 85001-UP

1шт.

|$23

46B-5MG-1010WK

CLAMP,(COLD)

SN: 85001-UP

1шт.

18

01010-80825

BOLT

SN: 85001-UP

1шт.

19

01602-20825

WASHER,SPRING

SN: 85001-UP

1шт.

20

3LA-T1-18470YK

BLOCK

SN: 85001-UP

1шт.

|$27

3LA-T1-18470WK

BLOCK,(COLD)

SN: 85001-UP

1шт.

21

01010-80825

BOLT

SN: 85001-UP

2шт.

22

01602-20825

WASHER,SPRING

SN: 85001-UP

2шт.

23

01580-10806

NUT

SN: 85001-UP

2шт.

24

07627-003A4

HOSE

SN: 85001-UP

1шт.

25

37B-1AE-6010

BAND

SN: 85001-UP

2шт.

26

07281-00197

CLAMP

SN: 85001-UP

4шт.

27

37B-1AE-6030

BAND

SN: 85001-UP

2шт.

28

3EB-71-38150

CLAMP

SN: 85001-UP

7шт.

29

37R-TAX-8851

HOSE,(FOR 4.0M MAST)

SN: 85001-UP

1шт.

|$38

37R-TAX-8891

HOSE,(FOR 4.3M MAST)

SN: 85001-UP

1шт.

|$39

37R-TAX-8921

HOSE,(FOR 4.5M MAST)

SN: 85001-UP

1шт.

|$40

37R-TAX-8951

HOSE,(FOR 4.7M MAST)

SN: 85001-UP

1шт.

|$41

37R-TAX-8991

HOSE,(FOR 5.0M MAST)

SN: 85001-UP

1шт.

|$42

37R-TBX-8081

HOSE,(FOR 5.5M MAST)

SN: 85001-UP

1шт.

|$43

37R-TBX-8161

HOSE,(FOR 6.0M MAST)

SN: 85001-UP

1шт.

|$44

37R-TBX-8241

HOSE,(FOR 6.5M MAST)

SN: 85001-UP

1шт.

30

37R-TAX-8401

HOSE,(FOR 4.0M MAST)

SN: 85001-UP

1шт.

|$46

37R-TAX-8421

HOSE,(FOR 4.3M MAST)

SN: 85001-UP

1шт.

|$47

37R-TAX-8431

HOSE,(FOR 4.5M MAST)

SN: 85001-UP

1шт.

|$48

37R-TAX-8451

HOSE,(FOR 4.7M MAST)

SN: 85001-UP

1шт.

|$49

37R-TAX-8471

HOSE,(FOR 5.0M MAST)

SN: 85001-UP

1шт.

|$50

37R-TAX-8511

HOSE,(FOR 5.5M MAST)

SN: 85001-UP

1шт.

|$51

37R-TAX-8551

HOSE,(FOR 6.0M MAST)

SN: 85001-UP

1шт.

|$52

37R-TAX-8591

HOSE,(FOR 6.5M MAST)

SN: 85001-UP

1шт.

31

37R-TAX-6270

HOSE,(FOR 4.0M MAST)

SN: 85001-UP

1шт.

|$54

37R-TAX-6310

HOSE,(FOR 4.3M MAST)

SN: 85001-UP

1шт.

|$55

37R-TAX-6340

HOSE,(FOR 4.5M MAST)

SN: 85001-UP

1шт.

|$56

37R-TAX-6370

HOSE,(FOR 4.7M MAST)

SN: 85001-UP

1шт.

|$57

37R-TAX-6410

HOSE,(FOR 5.0M MAST)

SN: 85001-UP

1шт.

|$58

37R-TAX-6490

HOSE,(FOR 5.5M MAST)

SN: 85001-UP

1шт.

|$59

37R-TAX-6570

HOSE,(FOR 6.0M MAST)

SN: 85001-UP

1шт.

|$60

37R-TAX-6650

HOSE,(FOR 6.5M MAST)

SN: 85001-UP

1шт.

32

37A-502-6010

HOSE,(FOR 4.0M MAST)

SN: 85001-UP

1шт.

|$62

37A-502-6030

HOSE,(FOR 4.3M MAST)

SN: 85001-UP

1шт.

|$63

37A-502-6050

HOSE,(FOR 4.5M MAST)

SN: 85001-UP

1шт.

|$64

37A-502-6060

HOSE,(FOR 4.7M MAST)

SN: 85001-UP

1шт.

|$65

07260-20971

HOSE,(FOR 5.0M MAST)

SN: 85001-UP

1шт.

|$66

07260-20990

HOSE,(FOR 5.5M MAST)

SN: 85001-UP

1шт.

|$67

07261-20911

HOSE,(FOR 6.0M MAST)

SN: 85001-UP

1шт.

|$68

07261-20913

HOSE,(FOR 6.5M MAST)

SN: 85001-UP

1шт.

33

37A-502-6270

HOSE,(FOR 4.0M MAST)

SN: 85001-UP

1шт.

|$71

07261-20928

HOSE,(FOR 4.3M MAST)

SN: 85001-UP

1шт.

|$72

37A-502-6290

HOSE,(FOR 4.5M MAST)

SN: 85001-UP

1шт.

|$73

37A-502-6300

HOSE,(FOR 4.7M MAST)

SN: 85001-UP

1шт.

|$74

37A-502-6310

HOSE,(FOR 5.0M MAST)

SN: 85001-UP

1шт.

|$75

37A-502-6330

HOSE,(FOR 5.5M MAST)

SN: 85001-UP

1шт.

|$76

37A-502-6350

HOSE,(FOR 6.0M MAST)

SN: 85001-UP

1шт.

|$77

37A-502-6370

HOSE,(FOR 6.5M MAST)

SN: 85001-UP

1шт.
