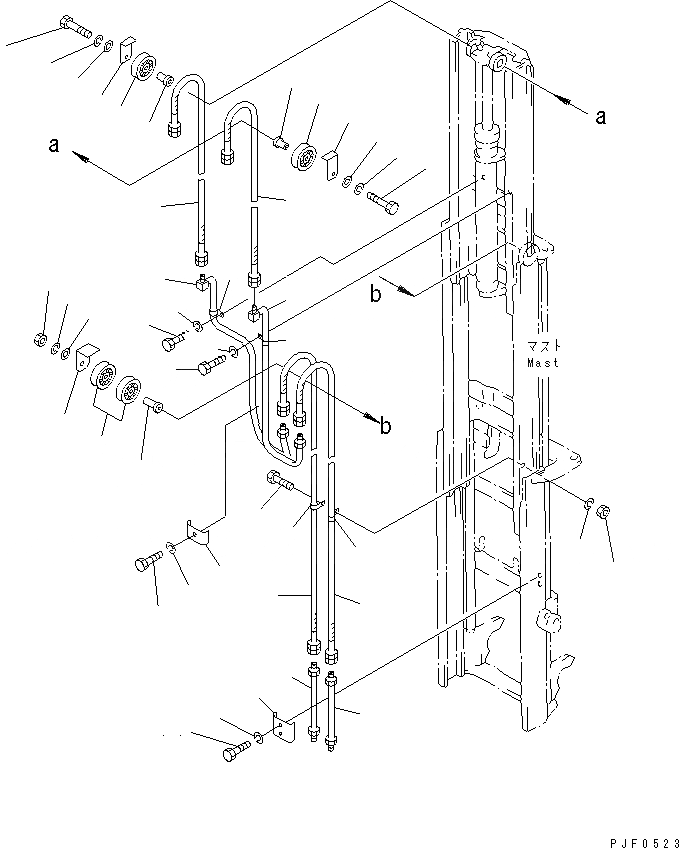

Запчасти Komatsu FB10 ДЛЯ 3-Х СЕКЦИОНН. КОНТРОЛЬН. КЛАПАН TFV МАЧТА (ДЛЯ .M - .M МАЧТА) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

45A-1MG-1080

COLLAR

SN: 807001-UP

1шт.

2

34A-58-31390

PLATE

SN: 807001-UP

1шт.

3

01580-11210

NUT

SN: 807001-UP

1шт.

4

01602-21236

WASHER,SPRING

SN: 807001-UP

1шт.

5

01642-21216

WASHER

SN: 807001-UP

1шт.

6

34A-72-18180

PULLEY

SN: 807001-UP

4шт.

7

34A-72-18190

COLLAR

SN: 807001-UP

2шт.

8

34A-72-18210

PLATE

SN: 807001-UP

2шт.

9

01010-81255

BOLT

SN: 807001-UP

2шт.

10

01602-21236

WASHER,SPRING

SN: 807001-UP

2шт.

11

01642-21216

WASHER

SN: 807001-UP

2шт.

12

37A-ZEM-1030SA

PIPE

SN: 807001-UP

2шт.

|$30

37A-ZEM-1030WK

PIPE,(COLD)

SN: 807001-UP

1шт.

13

45B-5MA-2040SA

CLIP

SN: 807001-UP

1шт.

|$32

45B-5MA-2040WK

CLIP,(COLD)

SN: 807001-UP

1шт.

14

01010-80835

BOLT

SN: 807001-UP

2шт.

15

01602-20825

WASHER,SPRING

SN: 807001-UP

2шт.

16

34A-72-18230

CLIP

SN: 807001-UP

2шт.

17

01010-80825

BOLT

SN: 807001-UP

1шт.

18

01580-10806

NUT

SN: 807001-UP

1шт.

19

01602-20825

WASHER,SPRING

SN: 807001-UP

1шт.

20

46B-5MG-1010YK

CLAMP

SN: 807001-UP

1шт.

|$40

46B-5MG-1010WK

CLAMP,(COLD)

SN: 807001-UP

1шт.

21

01010-80825

BOLT

SN: 807001-UP

1шт.

22

01602-20825

WASHER,SPRING

SN: 807001-UP

1шт.

23

34B-36-11530

CLIP

SN: 807001-UP

2шт.

24

01010-80820

BOLT

SN: 807001-UP

2шт.

25

01602-20825

WASHER,SPRING

SN: 807001-UP

2шт.

26

37A-684-4450

HOSE,(FOR 4.0M MAST)

SN: 807001-UP

2шт.

|$61

37A-684-4490

HOSE,(FOR 4.3M MAST)

SN: 807001-UP

2шт.

|$62

37A-684-4520

HOSE,(FOR 4.5M MAST)

SN: 807001-UP

2шт.

|$63

37A-684-4540

HOSE,(FOR 4.7M MAST)

SN: 807001-UP

2шт.

|$64

37A-684-4590

HOSE,(FOR 5.0M MAST)

SN: 807001-UP

2шт.

|$65

37A-684-4650

HOSE,(FOR 5.5M MAST)

SN: 807001-UP

2шт.

|$66

37A-684-4720

HOSE,(FOR 6.0M MAST)

SN: 807001-UP

2шт.

27

37A-684-4240

HOSE,(FOR 4.0M MAST)

SN: 807001-UP

2шт.

|$68

37A-684-4260

HOSE,(FOR 4.3M MAST)

SN: 807001-UP

2шт.

|$69

37A-684-4270

HOSE,(FOR 4.5M MAST)

SN: 807001-UP

2шт.

|$70

37A-684-4290

HOSE,(FOR 4.7M MAST)

SN: 807001-UP

2шт.

|$71

37A-684-4310

HOSE,(FOR 5.0M MAST)

SN: 807001-UP

2шт.

|$72

37A-684-4340

HOSE,(FOR 5.5M MAST)

SN: 807001-UP

2шт.

|$73

37A-684-4290

HOSE,(FOR 6.0M MAST)

SN: 807001-UP

2шт.

28

45A-5MG-1110SA

PIPE,(FOR 4.0M TO 5.5M MAST)

SN: 807001-UP

1шт.

|$75

45A-5MG-1110WK

PIPE,(FOR 4.0M TO 5.5M MAST) (COLD)

SN: 807001-UP

1шт.

|$76

45A-5MG-1130SA

PIPE,(FOR 6.0M MAST)

SN: 807001-UP

1шт.

|$77

45A-5MG-1130WK

PIPE,(FOR 6.0M MAST) (COLD)

SN: 807001-UP

1шт.

29

45A-5MG-1120SA

PIPE,(FOR 4.0M TO 5.5M MAST)

SN: 807001-UP

1шт.

|$79

45A-5MG-1120WK

PIPE,(FOR 4.0M TO 5.5M MAST) (COLD)

SN: 807001-UP

1шт.

|$80

45A-5MG-1140SA

PIPE,(FOR 6.0M MAST)

SN: 807001-UP

1шт.

|$81

45A-5MG-1140WK

PIPE,(FOR 6.0M MAST) (COLD)

SN: 807001-UP

1шт.
