Запчасти Komatsu FB09H-18-12-A СЕКЦ. УПРАВЛЯЮЩ. КЛАПАН TFV МАЧТА ТРУБЫ (.7-.M) (/) РАБОЧЕЕ ОБОРУДОВАНИЕ

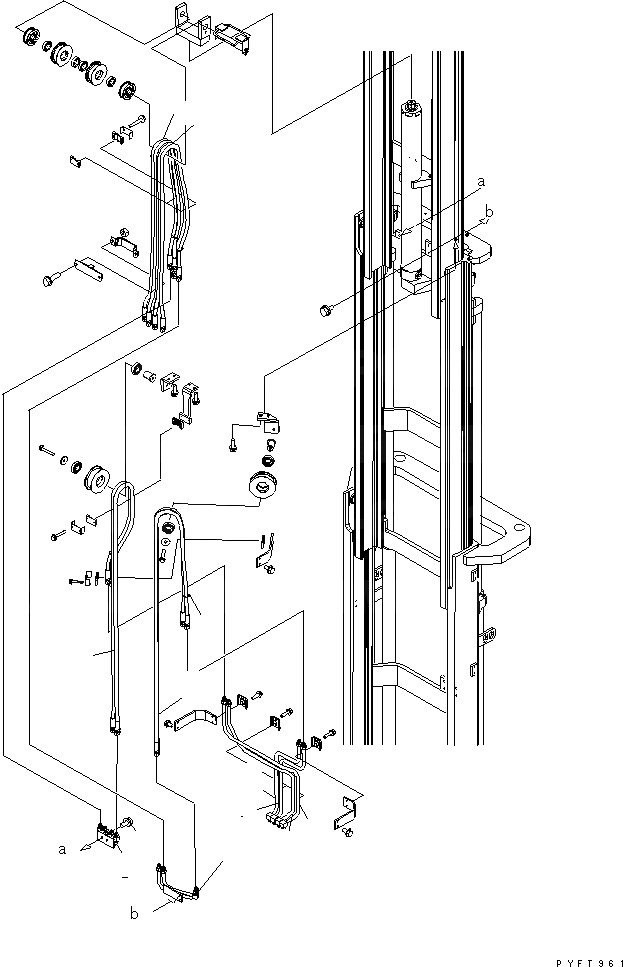

Схема запчастей Komatsu FB09H-18-12-A - СЕКЦ. УПРАВЛЯЮЩ. КЛАПАН TFV МАЧТА ТРУБЫ (.7-.M) (/) РАБОЧЕЕ ОБОРУДОВАНИЕ
1
2
3
4
5
6
7
8
9
10
11
12

Артикул

Название

Примечание

Количество

1

45A-1MG-4810UE

PIPE

SN: 837898-UP

1шт.

|$19

45A-1MG-4810UT

PIPE,(COLD)

SN: 837898-UP

1шт.

2

45A-1MP-4810UE

PIPE

SN: 837898-UP

1шт.

|$21

45A-1MP-4810UT

PIPE,(COLD)

SN: 837898-UP

1шт.

3

01024-80816

BOLT

SN: 837898-UP

4шт.

4

37A-ZFD-4010UE

PIPE,(3.7-4.0M)

SN: 837898-UP

1шт.

|$40

37A-ZFD-4020UE

PIPE,(4.3-4.7M)

SN: 837898-UP

1шт.

|$41

37A-ZFD-4030UE

PIPE,(5.0-5.5M)

SN: 837898-UP

1шт.

|$42

37A-ZFD-4040UE

PIPE,(6.0M)

SN: 837898-UP

1шт.

|$43

37A-ZFD-4010UT

PIPE,(3.7-4.0M) (COLD)

SN: 837898-UP

1шт.

|$44

37A-ZFD-4020UT

PIPE,(4.3-4.7M) (COLD)

SN: 837898-UP

1шт.

|$45

37A-ZFD-4030UT

PIPE,(5.0-5.5M) (COLD)

SN: 837898-UP

1шт.

|$46

37A-ZFD-4040UT

PIPE,(6.0M) (COLD)

SN: 837898-UP

1шт.

5

37A-ZFE-4010UE

PIPE,(3.7-4.0M)

SN: 837898-UP

1шт.

|$48

37A-ZFE-4020UE

PIPE,(4.3-4.7M)

SN: 837898-UP

1шт.

|$49

37A-ZFE-4030UE

PIPE,(5.0-5.5M)

SN: 837898-UP

1шт.

|$50

37A-ZFE-4040UE

PIPE,(6.0M)

SN: 837898-UP

1шт.

|$51

37A-ZFE-4010UT

PIPE,(3.7-4.0M) (COLD)

SN: 837898-UP

1шт.

|$52

37A-ZFE-4020UT

PIPE,(4.3-4.7M) (COLD)

SN: 837898-UP

1шт.

|$53

37A-ZFE-4030UT

PIPE,(5.0-5.5M) (COLD)

SN: 837898-UP

1шт.

|$54

37A-ZFE-4040UT

PIPE,(6.0M) (COLD)

SN: 837898-UP

1шт.

6

37A-ZFF-4010UE

PIPE,(3.7-4.0M)

SN: 837898-UP

1шт.

|$56

37A-ZFF-4020UE

PIPE,(4.3-4.7M)

SN: 837898-UP

1шт.

|$57

37A-ZFF-4030UE

PIPE,(5.0-5.5M)

SN: 837898-UP

1шт.

|$58

37A-ZFF-4040UE

PIPE,(6.0M)

SN: 837898-UP

1шт.

|$59

37A-ZFF-4010UT

PIPE,(3.7-4.0M) (COLD)

SN: 837898-UP

1шт.

|$60

37A-ZFF-4020UT

PIPE,(4.3-4.7M) (COLD)

SN: 837898-UP

1шт.

|$61

37A-ZFF-4030UT

PIPE,(5.0-5.5M) (COLD)

SN: 837898-UP

1шт.

|$62

37A-ZFF-4040UT

PIPE,(6.0M) (COLD)

SN: 837898-UP

1шт.

7

37A-ZFG-4010UE

PIPE,(3.7-4.0M)

SN: 837898-UP

1шт.

|$64

37A-ZFG-4020UE

PIPE,(4.3-4.7M)

SN: 837898-UP

1шт.

|$65

37A-ZFG-4030UE

PIPE,(5.0-5.5M)

SN: 837898-UP

1шт.

|$66

37A-ZFG-4040UE

PIPE,(6.0M)

SN: 837898-UP

1шт.

|$67

37A-ZFG-4010UT

PIPE,(3.7-4.0M) (COLD)

SN: 837898-UP

1шт.

|$68

37A-ZFG-4020UT

PIPE,(4.3-4.7M) (COLD)

SN: 837898-UP

1шт.

|$69

37A-ZFG-4030UT

PIPE,(5.0-5.5M) (COLD)

SN: 837898-UP

1шт.

|$70

37A-ZFG-4040UT

PIPE,(6.0M) (COLD)

SN: 837898-UP

1шт.

8

37A-ZRN-4160

HOSE,(3.7M)

SN: 837898-UP

1шт.

|$72

37A-ZRN-4180

HOSE,(4.0M)

SN: 837898-UP

1шт.

|$73

37A-ZRN-4200

HOSE,(4.3M)

SN: 837898-UP

1шт.

|$74

37A-ZRN-4210

HOSE,(4.5M)

SN: 837898-UP

1шт.

|$75

37A-ZRN-4230

HOSE,(4.7M)

SN: 837898-UP

1шт.

|$76

37A-ZRN-4250

HOSE,(5.0M)

SN: 837898-UP

1шт.

|$77

37A-ZRN-4280

HOSE,(5.5M)

SN: 837898-UP

1шт.

|$78

37A-ZRN-4320

HOSE,(6.0M)

SN: 837898-UP

1шт.

9

37A-ZRN-4180

HOSE,(3.7M)

SN: 837898-UP

1шт.

|$80

37A-ZRN-4200

HOSE,(4.0M)

SN: 837898-UP

1шт.

|$81

37A-ZRM-4210

HOSE,(4.3M)

SN: 837898-UP

1шт.

|$82

37A-ZRM-4220

HOSE,(4.5M)

SN: 837898-UP

1шт.

|$83

37A-ZRM-4240

HOSE,(4.7M)

SN: 837898-UP

1шт.

|$84

37A-ZRM-4260

HOSE,(5.0M)

SN: 837898-UP

1шт.

|$85

37A-ZRM-4290

HOSE,(5.5M)

SN: 837898-UP

1шт.

|$86

37A-ZRM-4330

HOSE,(6.0M)

SN: 837898-UP

1шт.

10

37A-ZRN-4220

HOSE,(3.7M)

SN: 837898-UP

1шт.

|$88

37A-ZRN-4260

HOSE,(4.0-4.3M)

SN: 837898-UP

1шт.

|$89

37A-ZRN-4290

HOSE,(4.5M)

SN: 837898-UP

1шт.

|$90

37A-ZRN-4320

HOSE,(4.7M)

SN: 837898-UP

1шт.

|$91

37A-ZRN-4310

HOSE,(5.0M)

SN: 837898-UP

1шт.

|$92

37A-ZRN-4380

HOSE,(5.5-6.0M)

SN: 837898-UP

1шт.

11

37A-ZRM-4220

HOSE,(3.7M)

SN: 837898-UP

1шт.

|$94

37A-ZRM-4260

HOSE,(4.0-4.3M)

SN: 837898-UP

1шт.

|$95

37A-ZRM-4290

HOSE,(4.5M)

SN: 837898-UP

1шт.

|$96

37A-ZRM-4320

HOSE,(4.7M)

SN: 837898-UP

1шт.

|$97

37A-ZRM-4310

HOSE,(5.0M)

SN: 837898-UP

1шт.

|$98

37A-ZRM-4380

HOSE,(5.5-6.0M)

SN: 837898-UP

1шт.

12

37B-1AE-6030

BAND

SN: 837898-UP

10шт.

Выбрано товаров: 66
