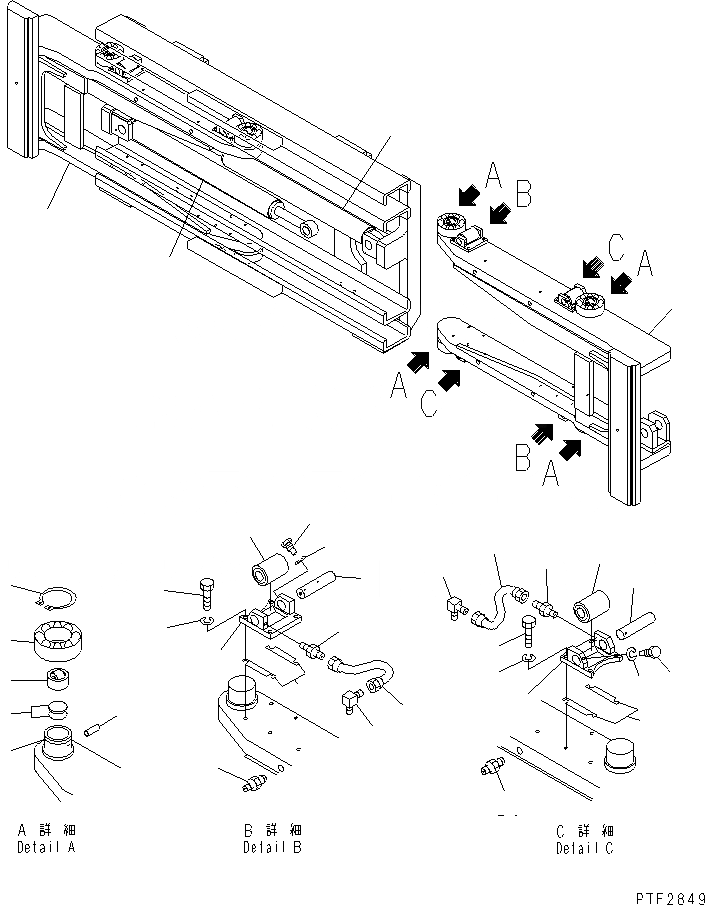

Запчасти Komatsu CBW808-1 КРЕПЛЕНИЕ ОСНОВ. (GUIDE BAR) КРЕПЛЕНИЕ ОСНОВ. (INDEPENDENT STROKE ТИП)

|$$1

OPENING RENGES ARE DISPLAYED AS FOLLOWS. =550-2450MM/=600-2400MM/=700-25 50MM

-1шт.

1

37D-ZBH-6010UE

GUIDE,(CBW608)

SN: 1001-UP

2шт.

|$36

37D-ZBH-6020UE

GUIDE,(CBW608)

SN: 1001-UP

2шт.

|$37

37D-ZBQ-6010UE

GUIDE,(CBW708/808)

SN: 1001-UP

2шт.

|$38

37D-ZBQ-6020UE

GUIDE,(CBW708/808)

SN: 1001-UP

2шт.

|$39

45C-200-2201

ROLLER ASS'Y

SN: 1001-UP

1шт.

2

45C-200-2211

STUD

SN: 1001-UP

8шт.

3

45C-200-2220

ROLLER,GUIDE

SN: 1001-UP

8шт.

4

45C-200-2230

ROLLER,SIDE

SN: 1001-UP

8шт.

5

45C-200-2140

PIN,SPRING

SN: 1001-UP

8шт.

6

45C-200-2150

RING,SNAP

SN: 1001-UP

8шт.

7

45C-1CB-1690

PLATE, 6.0MM

SN: 1001-UP

8шт.

|$46

45C-1CB-1670

SHIM, 1.0MM

SN: 1001-UP

16шт.

|$47

45C-1CB-1680

SHIM, 0.5MM

SN: 1001-UP

24шт.

8

46D-200-2220SG

BRACKET

SN: 1001-UP

8шт.

9

01010-81035

BOLT

SN: 1001-UP

32шт.

10

01602-21030

WASHER,SPRING

SN: 1001-UP

32шт.

11

46D-200-2230

SHIM, 1.0MM

SN: 1001-UP

64шт.

|$52

46D-200-2240

SHIM, 0.5MM

SN: 1001-UP

16шт.

12

310-70-23421

ROLLER ASS'Y

SN: 1001-UP

8шт.

13

46D-200-2210

PIN

SN: 1001-UP

8шт.

14

308-70-21465

BOLT

SN: 1001-UP

8шт.

15

01602-20825

WASHER,SPRING

SN: 1001-UP

8шт.

16

46D-200-2250

PIPE

SN: 1001-UP

4шт.

17

46D-200-2260

PIPE

SN: 1001-UP

4шт.

18

07214-60610

CONNECTOR

SN: 1001-UP

8шт.

19

07217-60610

ELBOW

SN: 1001-UP

8шт.

20

07020-00000

FITTING,GREASE

SN: 1001-UP

8шт.

21

37D-ZAW-3090UE

CYLINDER ASS'Y,(CBW608)

SN: 1001-UP

2шт.

|$63

37D-ZAW-3010UE

CYLINDER ASS'Y,(CBW608)

SN: 1001-UP

2шт.

|$64

37D-ZAW-3030UE

CYLINDER ASS'Y,(CBW608)

SN: 1001-UP

2шт.

|$65

37D-ZCF-1010UE

CYLINDER ASS'Y,(CBW708/808)

SN: 1001-UP

2шт.

|$66

37D-ZCF-1030UE

CYLINDER ASS'Y,(CBW708/808)

SN: 1001-UP

2шт.

|$67

37D-ZCF-1020UE

CYLINDER ASS'Y,(CBW708/808)

SN: 1001-UP

2шт.
