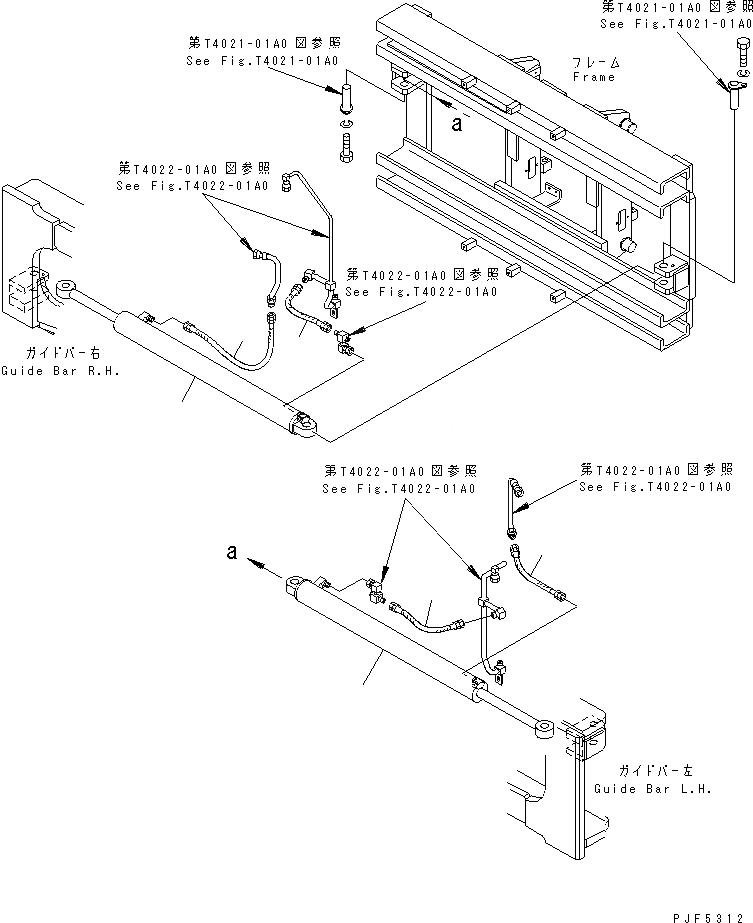

Запчасти Komatsu CDS253 КРЕПЛЕНИЕ ОСНОВ. (ЦИЛИНДР И ШЛАНГИ) ДЛЯ ДВОЙН. МАЧТА (SHIFT ТИП CLMAP ОСНОВ.)

|$$1

OPENING RENGES ARE DISPLAYED AS FOLLOWS. =500-1900MM/=600-2000MM/=650-22 00MM

-1шт.

1

37B-Z1S-5010YD

CYLINDER ASS'Y,(CBS/CMS/CFS253,303)

SN: 1001-UP

2шт.

|$15

37B-Z1S-5020YD

CYLINDER ASS'Y,(CBS/CMS253,303)

SN: 1001-UP

2шт.

|$16

37B-Z1S-5040YD

CYLINDER ASS'Y,(CDS253,303)

SN: 1001-UP

2шт.

|$17

37B-Z1S-5050YD

CYLINDER ASS'Y,(CLS253,303)

SN: 1001-UP

2шт.

2

07627-00304

HOSE,(CBS/CMS253,303)

SN: 1001-UP

2шт.

|$19

07627-003A3

HOSE,(CBS/CMS/CFS253,303)

SN: 1001-UP

2шт.

|$20

07627-00304

HOSE,(CBS/CMS253,303)

SN: 1001-UP

2шт.

|$21

07627-003A3

HOSE,(CLS253,303)

SN: 1001-UP

2шт.

|$22

07627-003A3

HOSE,(CDS253,303)

SN: 1001-UP

2шт.

3

07627-00303

HOSE,(CBS/CMS253,303)

SN: 1001-UP

1шт.

|$24

07627-003A3

HOSE,(CBS/CMS/CFS253,303)

SN: 1001-UP

1шт.

|$25

3EB-68-25120

HOSE,(CBS/CMS253,303)

SN: 1001-UP

1шт.

|$26

45B-1CL-3280

HOSE,(CLS253,303)

SN: 1001-UP

1шт.

|$27

45B-1CD-3180

HOSE,(CDS253,303)

SN: 1001-UP

1шт.

4

07627-003A5

HOSE,(CBS/CMS253,303)

SN: 1001-UP

1шт.

|$29

07627-00306

HOSE,(CBS/CMS/CFS253,303)

SN: 1001-UP

1шт.

|$30

07627-00306

HOSE,(CBS/CMS253,303)

SN: 1001-UP

1шт.

|$31

3EA-66-14170

HOSE,(CLS253,303)

SN: 1001-UP

1шт.

|$32

3EA-66-14160

HOSE,(CDS253,303)

SN: 1001-UP

1шт.
