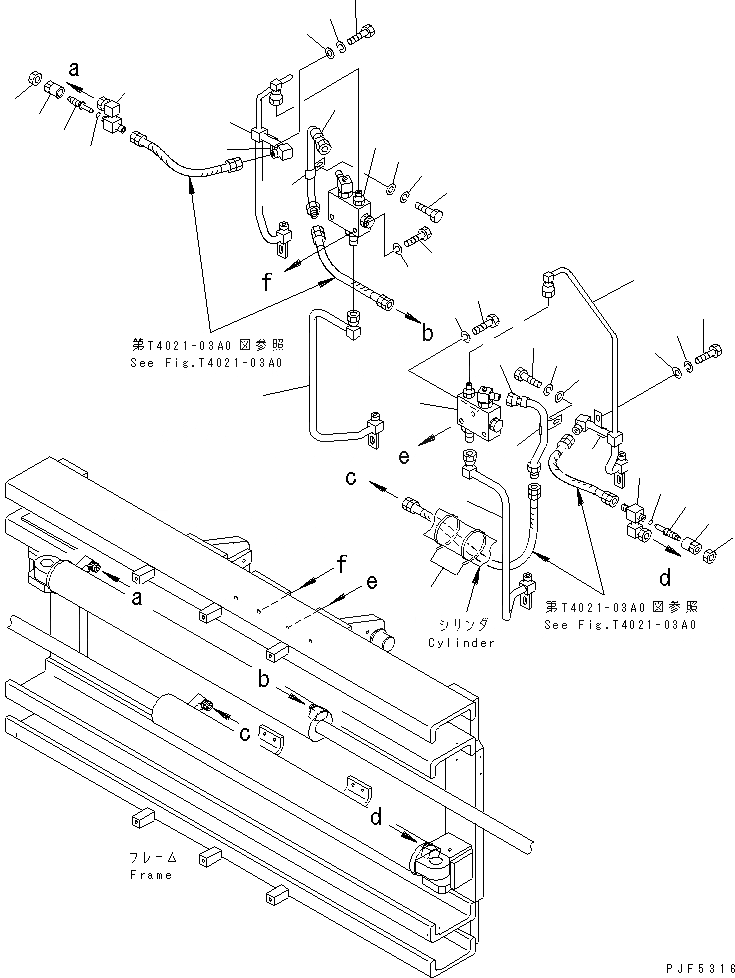

Запчасти Komatsu CFW253 КРЕПЛЕНИЕ ОСНОВ. COMMON ЧАСТИ (ГИДРОЛИНИЯ) ДЛЯ ДВОЙН. МАЧТА (INDEPENDENT STROKE ТИП КРЕПЛЕНИЕ ОСНОВ.)

1

45B-2CB-7400

CHECK VALVE ASS'Y

SN: 1001-UP

2шт.

2

45B-1CB-7910SA

PIPE,(FOR 2.0TON TO 2.5TON)

SN: 1001-UP

1шт.

|$6

45B-5CB-7910SA

PIPE,(FOR 2.0TON TO 2.5TON)

SN: 1001-UP

1шт.

|$7

45B-2CB-7910SA

PIPE,(FOR 2.8TON TO 3.0TON)

SN: 1001-UP

1шт.

3

45B-1CB-7920SA

PIPE,(FOR 2.0TON TO 2.5TON)

SN: 1001-UP

1шт.

|$9

45B-5CB-7920SA

PIPE,(FOR 2.0TON TO 2.5TON)

SN: 1001-UP

1шт.

|$10

45B-2CB-7920SA

PIPE,(FOR 2.8TON TO 3.0TON)

SN: 1001-UP

1шт.

4

45B-2CB-7930SA

PIPE

SN: 1001-UP

1шт.

5

45B-1CB-7940SA

PIPE,(FOR 2.0TON TO 2.5TON)

SN: 1001-UP

1шт.

|$13

45B-5CB-7940SA

PIPE,(FOR 2.0TON TO 2.5TON)

SN: 1001-UP

1шт.

|$14

45B-2CB-7940SA

PIPE,(FOR 2.8TON TO 3.0TON)

SN: 1001-UP

1шт.

6

45B-1CB-7950SA

PIPE,(FOR 2.0TON TO 2.5TON)

SN: 1001-UP

1шт.

|$16

45B-5CB-7950SA

PIPE,(FOR 2.0TON TO 2.5TON)

SN: 1001-UP

1шт.

|$17

45B-2CB-7950SA

PIPE,(FOR 2.8TON TO 3.0TON)

SN: 1001-UP

1шт.

7

45B-2CB-7960SA

PIPE

SN: 1001-UP

1шт.

8

45B-2CB-7970SA

PIPE

SN: 1001-UP

2шт.

9

45B-2CB-7980

NEEDLE

SN: 1001-UP

2шт.

10

324-876-1431

RETAINER

SN: 1001-UP

2шт.

11

01583-11207

NUT

SN: 1001-UP

2шт.

12

07000-12008

O-RING

SN: 1001-UP

2шт.

13

45A-1CB-7370

CLIP

SN: 1001-UP

4шт.

14

01010-80820

BOLT

SN: 1001-UP

8шт.

15

01602-20825

WASHER,SPRING

SN: 1001-UP

8шт.

16

01640-20816

WASHER

SN: 1001-UP

8шт.

17

01010-81055

BOLT

SN: 1001-UP

4шт.

18

01602-21030

WASHER,SPRING

SN: 1001-UP

4шт.

19

37B-1AE-6030

BAND

SN: 1001-UP

2шт.
