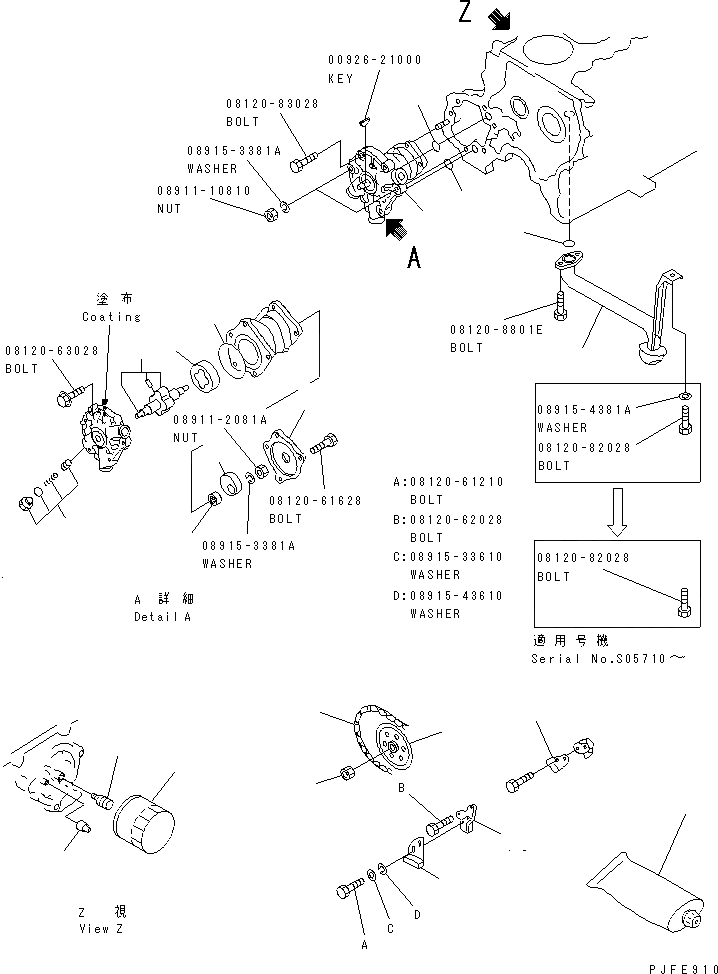

Запчасти Komatsu TB42-1C-F СИСТЕМА СМАЗКИ СИСТЕМА ДВИГАТЕЛЬ

1

15010-03J10

OIL PUMP ASS'Y

SN: S05425-UP

1шт.

2

15015-03J00

COVER,OIL PUMP

SN: S05425-UP

1шт.

3

15020-03J10

SHAFT ASS'Y,OIL PUMP

SN: S05425-UP

1шт.

4

15023-03J00

GEAR,IDLER

SN: S05425-UP

1шт.

5

15132-03J11

VALVE ASS'Y,OIL, REGULATOR

SN: S05425-UP

1шт.

6

15056-03J00

SEAL,O-RING

SN: S05425-UP

1шт.

7

15075-03J00

BEARING,OIL PUMP

SN: S05425-UP

1шт.

8

13015-03J00

CAM ASS'Y,FUEL PUMP

SN: S05425-UP

1шт.

9

KP710-00150

GASKET,LIQUID

SN: S05425-UP

-2шт.

10

15066-03J00

GASKET,PUMP TO BLOCK

SN: S05425-UP

2шт.

11

15041-03J01

CHAIN,OIL PUMP DRIVE

SN: S05425-UP

1шт.

12

15044-03J00

SPROCKET,DRIVE

SN: S05425-UP

1шт.

13

NJ01225-00016

NUT

SN: S05425-UP

1шт.

14

15071-03J00

TENSIONER,CHAIN

SN: S05425-UP

1шт.

15

15072-03J01

PLATE,LOCK

SN: S05425-UP

1шт.

16

15073-03J00

GUIDE,CHAIN

SN: S05425-UP

1шт.

17

15050-VB000

STRAINER ASS'Y,OIL

SN: S05710-UP

1шт.

|$17

15050-37J00

STRAINER ASS'Y,OIL

SN: S05425-S05709

1шт.

18

15053-VB000

SEAL,O-RING

SN: S05710-UP

1шт.

|$19

15053-1P100

SEAL,O-RING

SN: S05425-S05709

1шт.

19

15208-W1106

FILTER ASS'Y,OIL

SN: S05425-UP

1шт.

20

15213-21002

STUD,OIL FILTER

SN: S05425-UP

1шт.

21

15241-16A01

VALVE,OIL PRESSURE

SN: S05425-UP

1шт.
